Front Axle Hub: Components

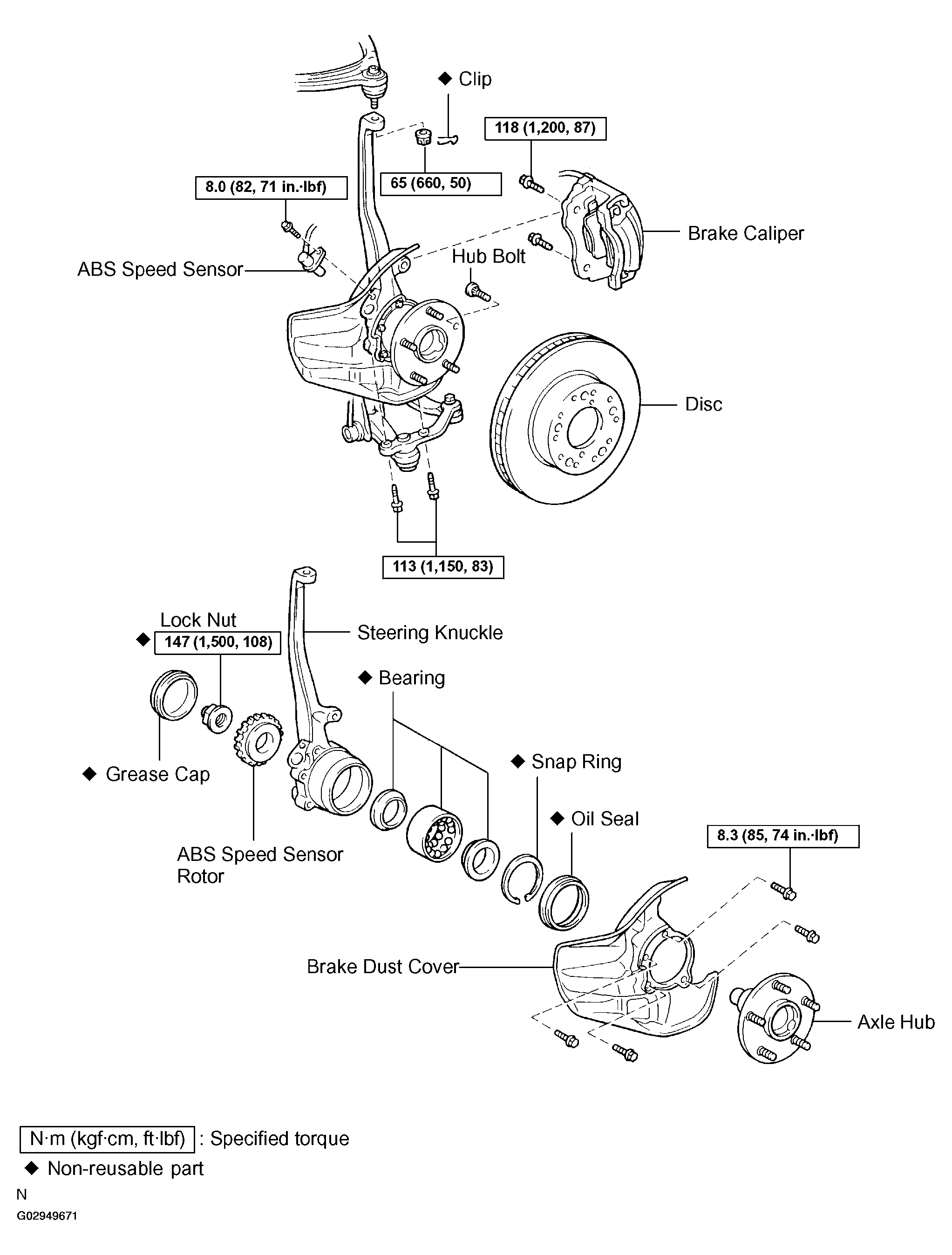

Fig 1: Exploded View Of Front Axle Hub Components With Torque Specifications
G02949671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
