Toe Control Link: Installation

INSTALL TOE CONTROL LINK
1. Install the toe control link, toe control link piece to the rear suspension member with the cam bolt, cam plate and nut.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
  HINT:

  After stabilizing the suspension arm, align the matchmarks on the cam plate and rear suspension member, and torque the nut.

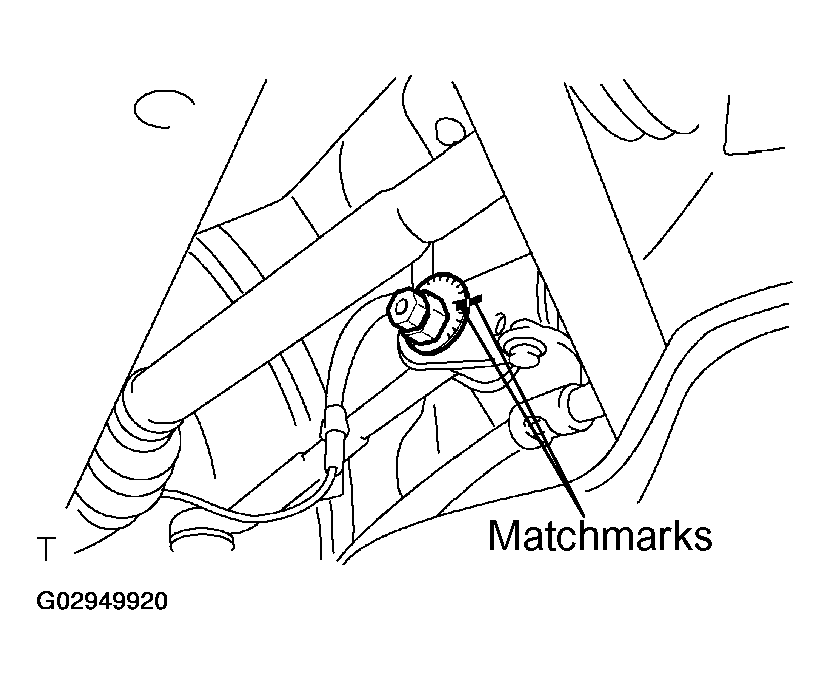

  Fig 1: Aligning Matchmarks On Cam Plate And Rear Suspension Member
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the toe control link to the axle carrier with a new nut.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
CONNECT ABS SPEED SENSOR WIRE HARNESS TO TOE CONTROL LINK
1. Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)
INSTALL REAR FENDER APRON SEAL
INSTALL REAR WHEEL
1. Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
CHECK REAR WHEEL ALIGNMENT (See REAR WHEEL ALIGNMENT )
