Ignition Switch Power Source Circuit: Wiring Diagram

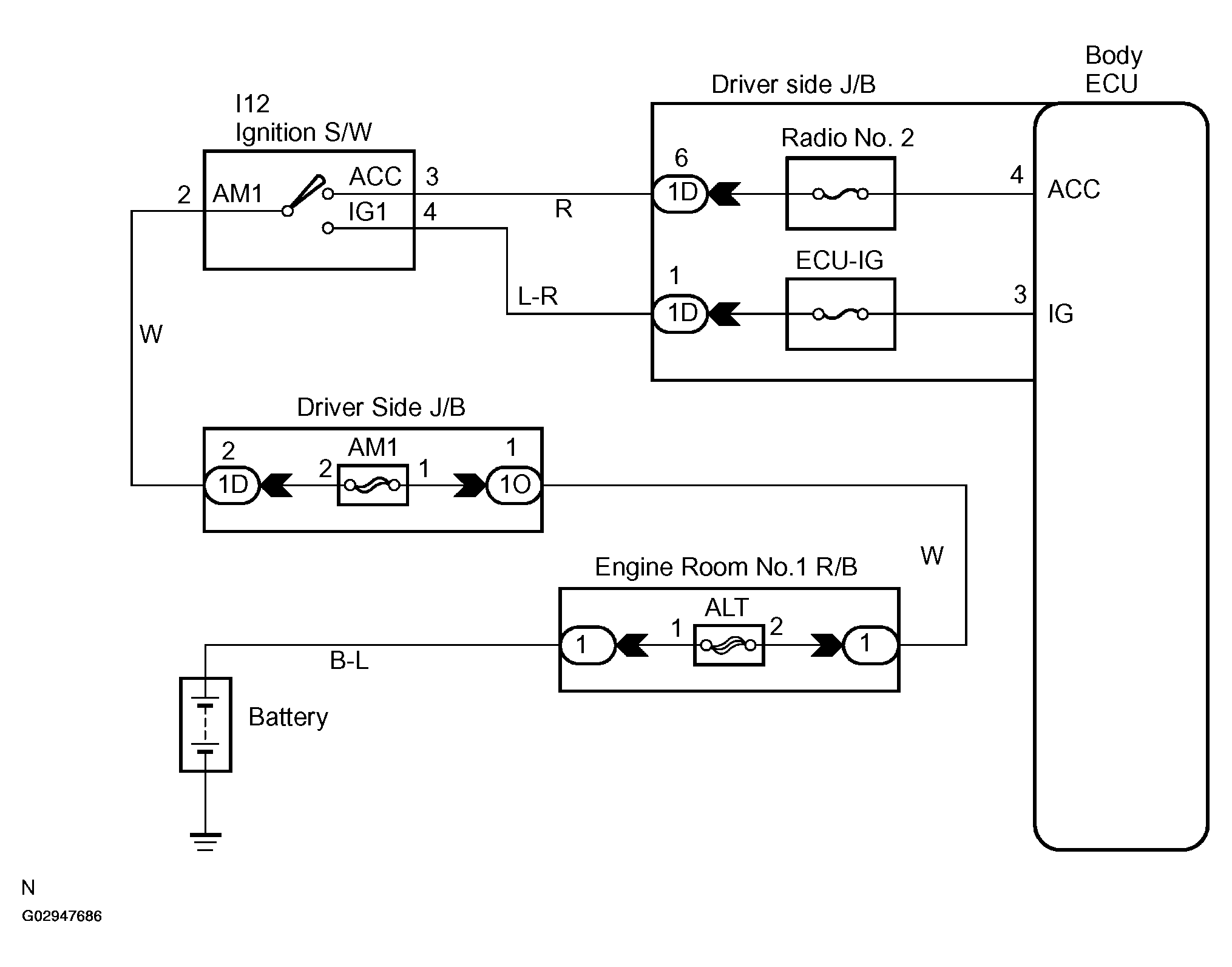

Fig 1: Ignition Switch Power Source Circuit - Wiring Diagram
G02947686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
