Outside Rear View Mirror: Removal

HINT:

A bolt without a torque specification is shown in the standard bolt chart. (see SPECIFIED TORQUE FOR STANDARD BOLTS )

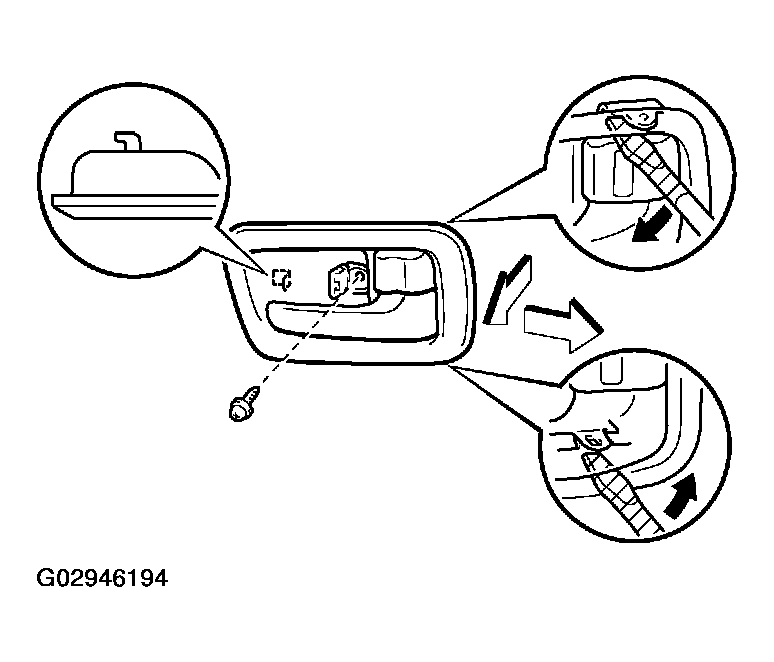

1. REMOVE INSIDE HANDLE BEZEL
   1. Using a screwdriver, open the screw cap.

      HINT:

      Tape the screwdriver tip before use.

   2. Remove the screw.
   3. Using a screwdriver, remove the inside handle bezel as shown in the illustration.

   HINT:

   Tape the screwdriver tip before use.

   Fig 1: Removing Inside Handle Bezel Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

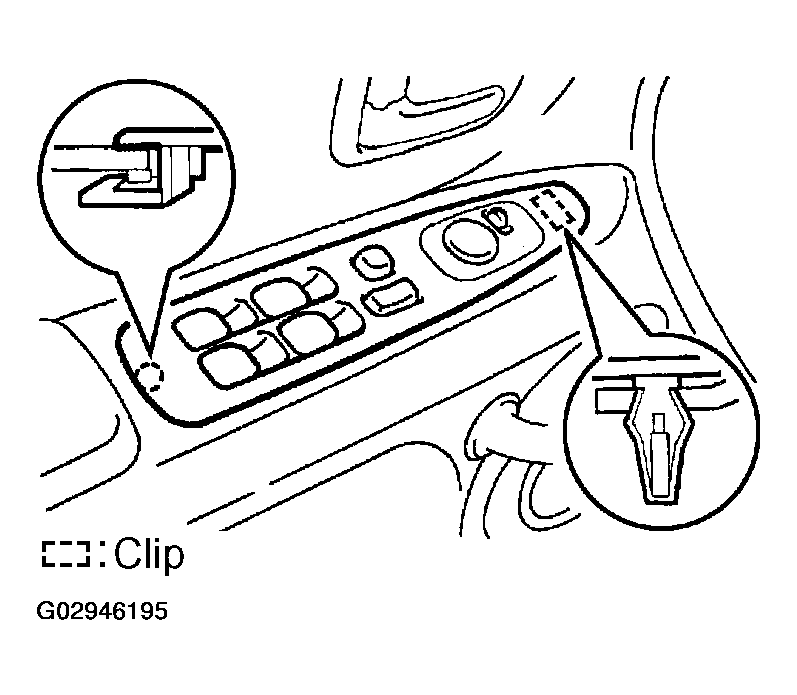

2. REMOVE POWER WINDOW SWITCH
   1. Using a screwdriver, remove the power window switch.

      HINT:

      Tape the screwdriver tip before use.

   2. Disconnect the connectors.
      Fig 2: Removing Power Window Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

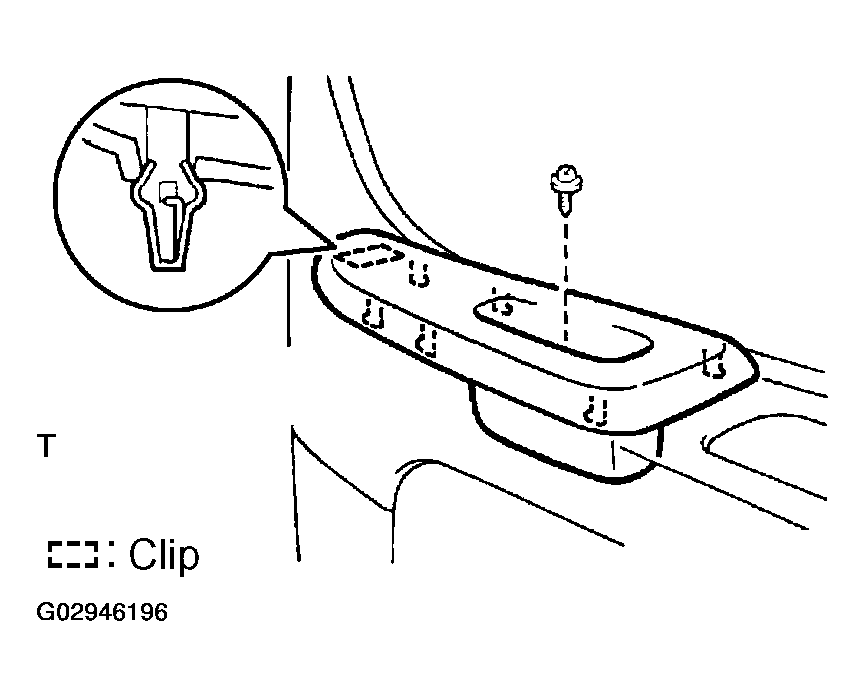

3. REMOVE FRONT ARMREST
   1. Remove the screw.
   2. Using a screwdriver , remove the front armrest as shown in the illustration.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Removing Front Armrest Using Screwdriver

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

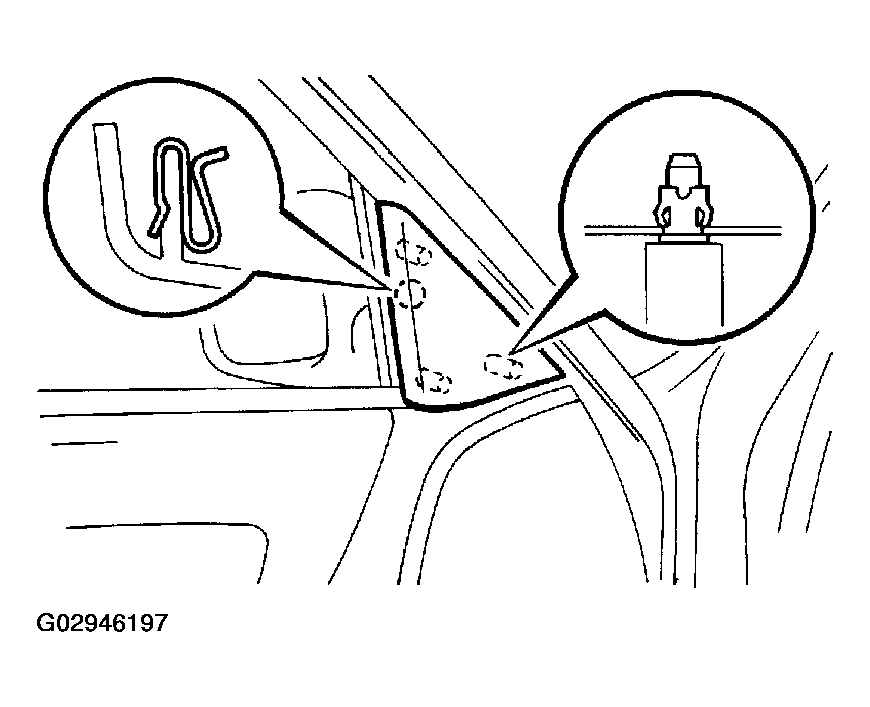

4. REMOVE LOWER FRAME BRACKET GARNISH

   Remove the lower frame bracket garnish.

   Fig 4: Removing Lower Frame Bracket Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

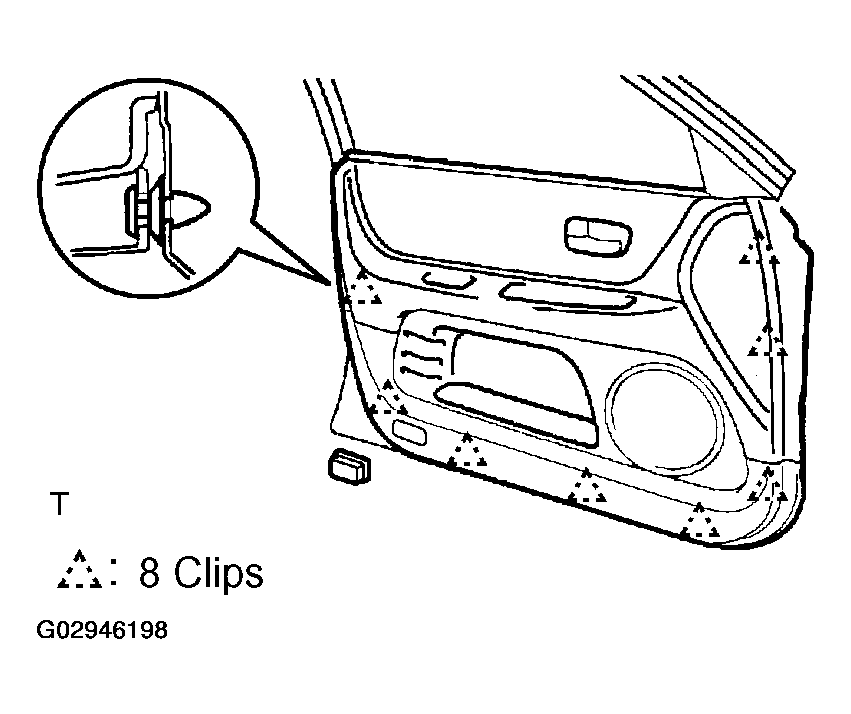

5. REMOVE DOOR TRIM
   1. Using a screwdriver, remove the courtesy light, then disconnect the connector.

      HINT:

      Tape the screwdriver tip before use.

   2. Using a screwdriver, disengage the clips, then pull the trim upward to remove it.

   HINT:

   Tape the screwdriver tip before use.

   Fig 5: Removing Door Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE FRONT NO.2 SPEAKER
   1. Disconnect the connector.
   2. Remove the 2 bolts and front No.2 speaker.
   Fig 6: Removing bolts & front No.2 speaker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

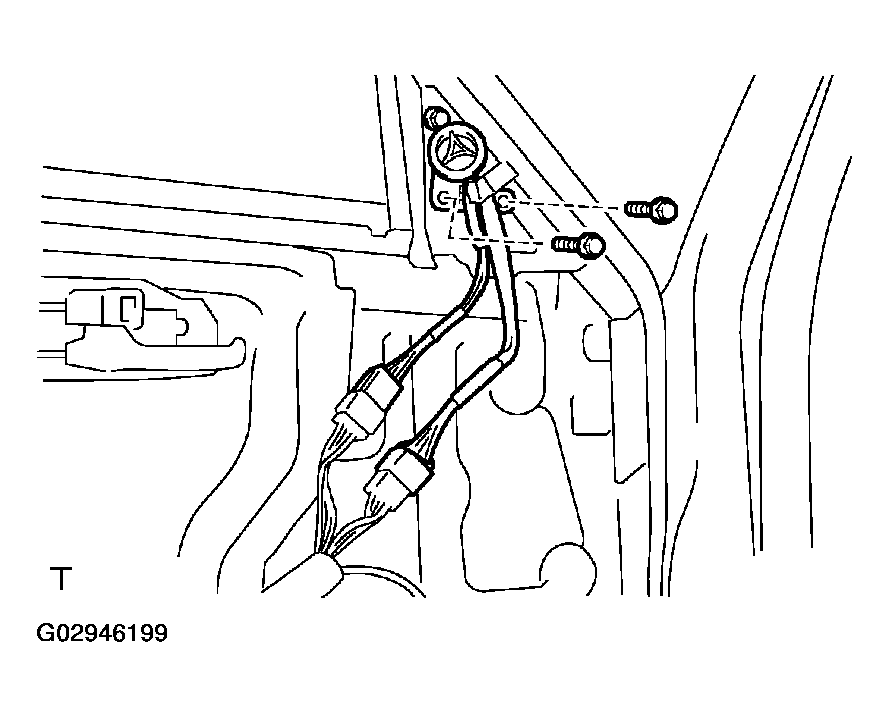

7. REMOVE OUTSIDE REAR VIEW MIRROR
   1. Disconnect the connector.
   2. Remove the bolt and outside rear view mirror.
