Engine Mechanical: Starter: Starting: Starter: Components

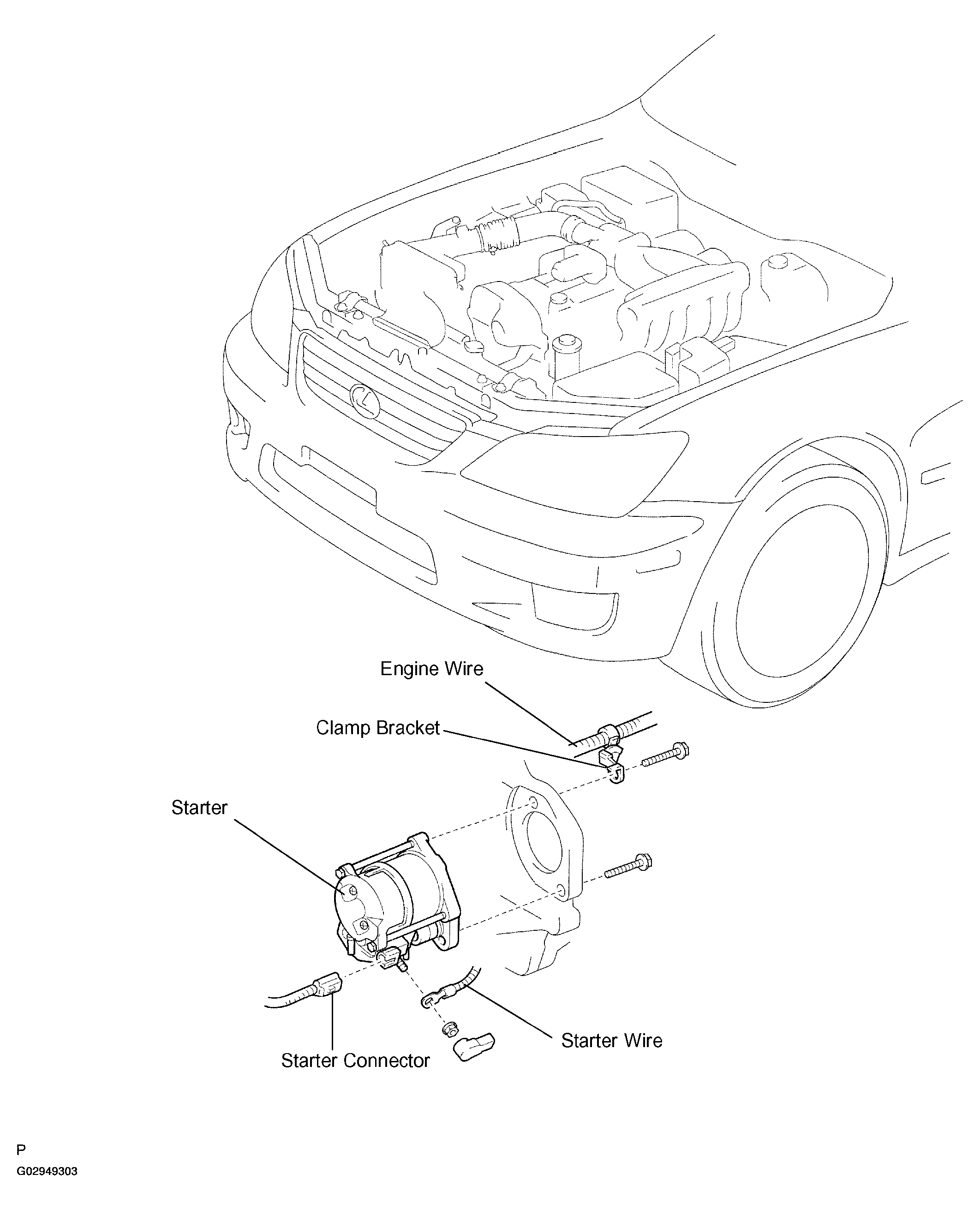

Fig 1: Identifying Starter Components
G02949303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

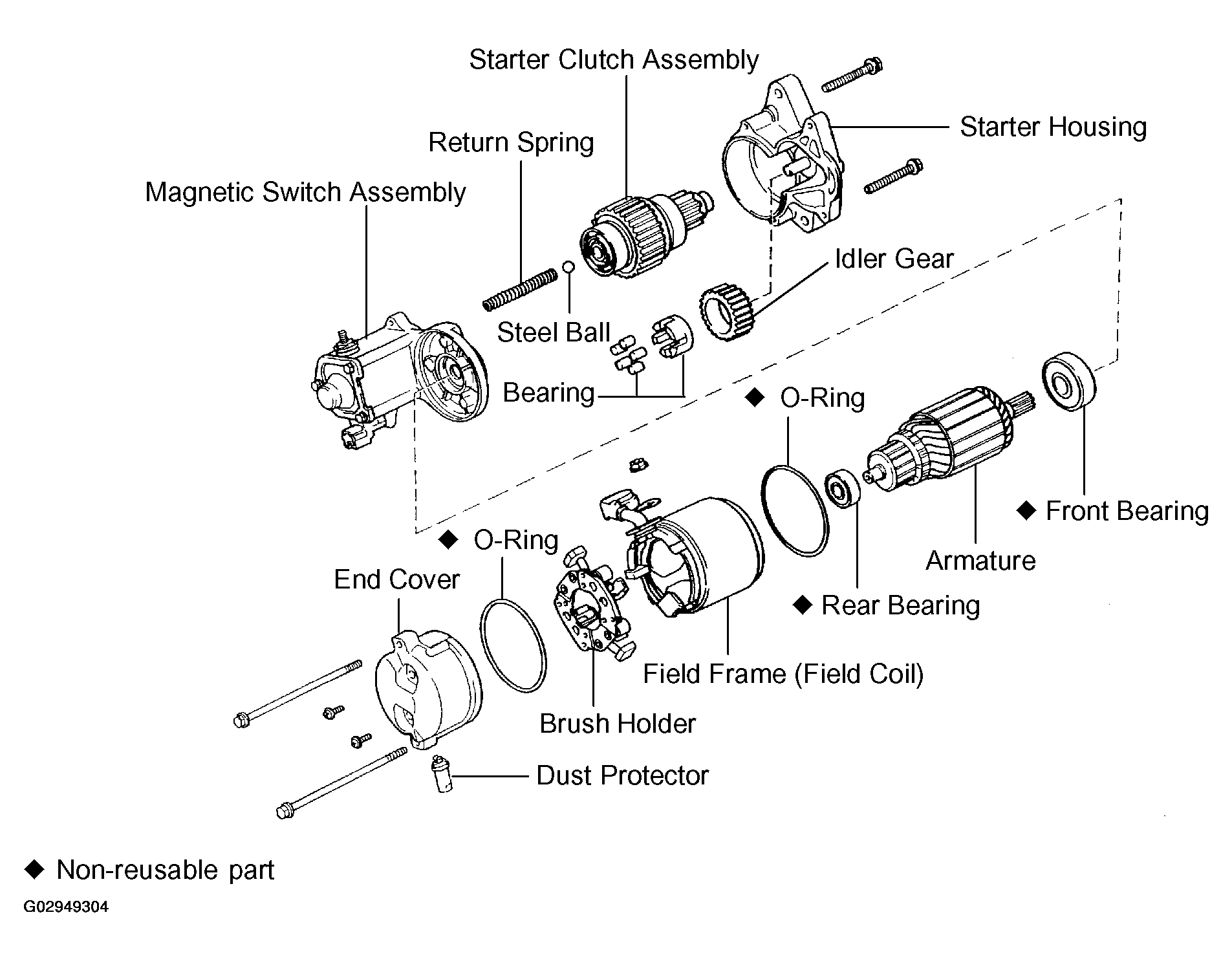

Fig 2: Exploded View Of Starter Components
G02949304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Exploded View Of Magnetic Switch Assembly With Torque Specifications
G02949305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
