Typical Malfunction Thresholds

WARNING: This page is about a different variant/trim than selected.

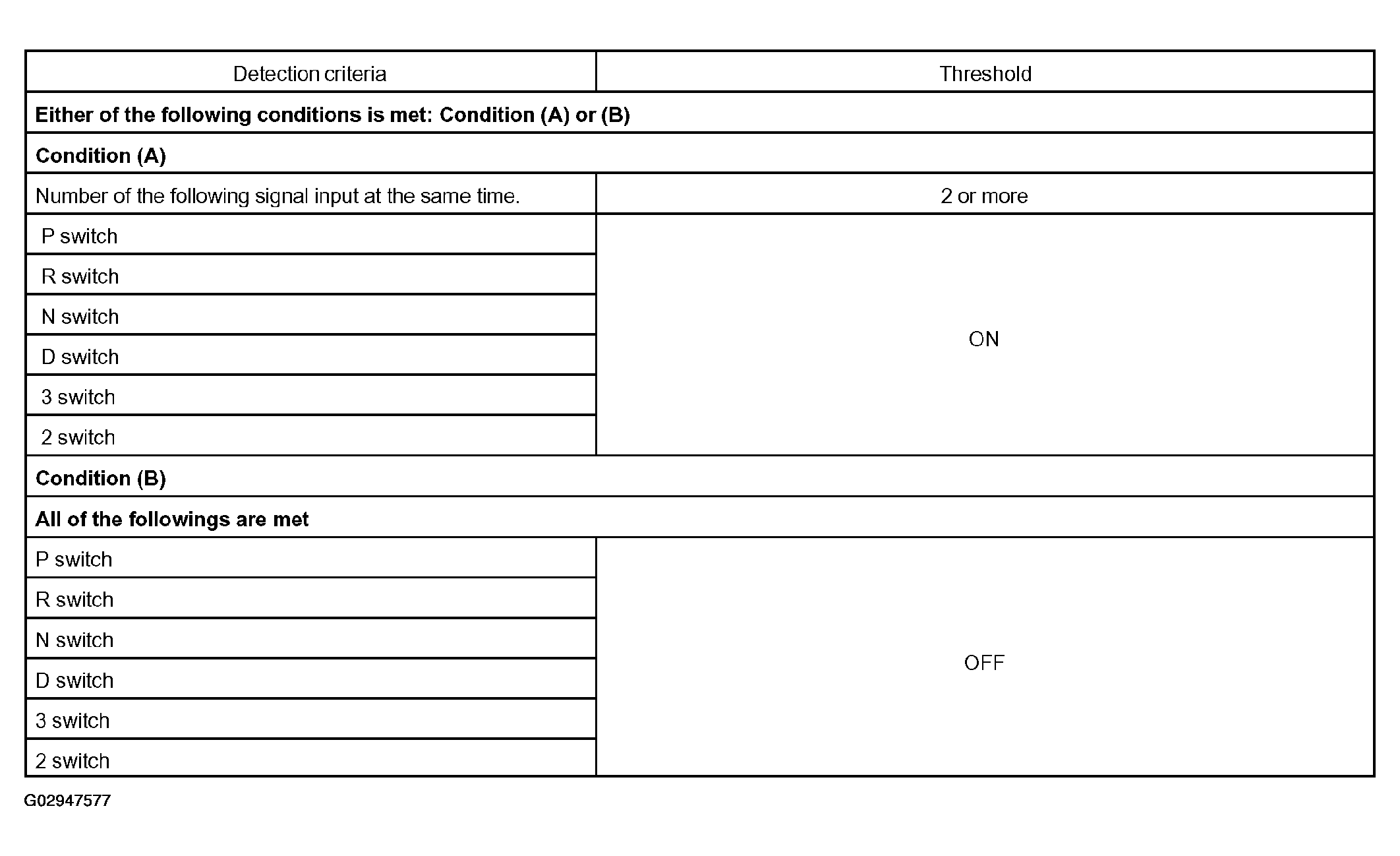

Fig 1: Typical Malfunction Thresholds Chart
G02947577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
