DTC P0717: Input Speed Sensor Circuit No Signal: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

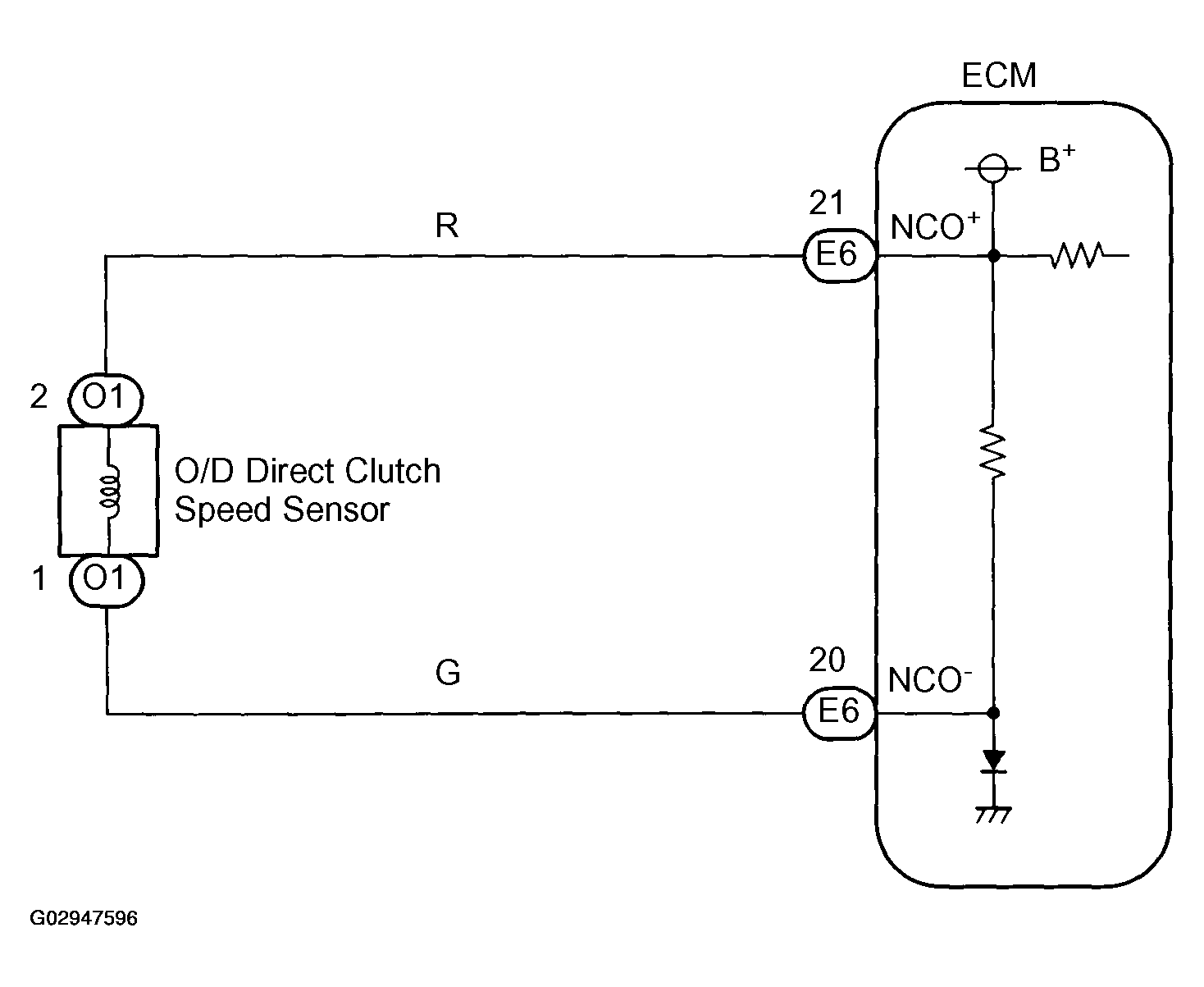

Fig 1: Wiring Diagram - Input Speed Sensor Circuit
G02947596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
