Front Stabilizer Bar: Components

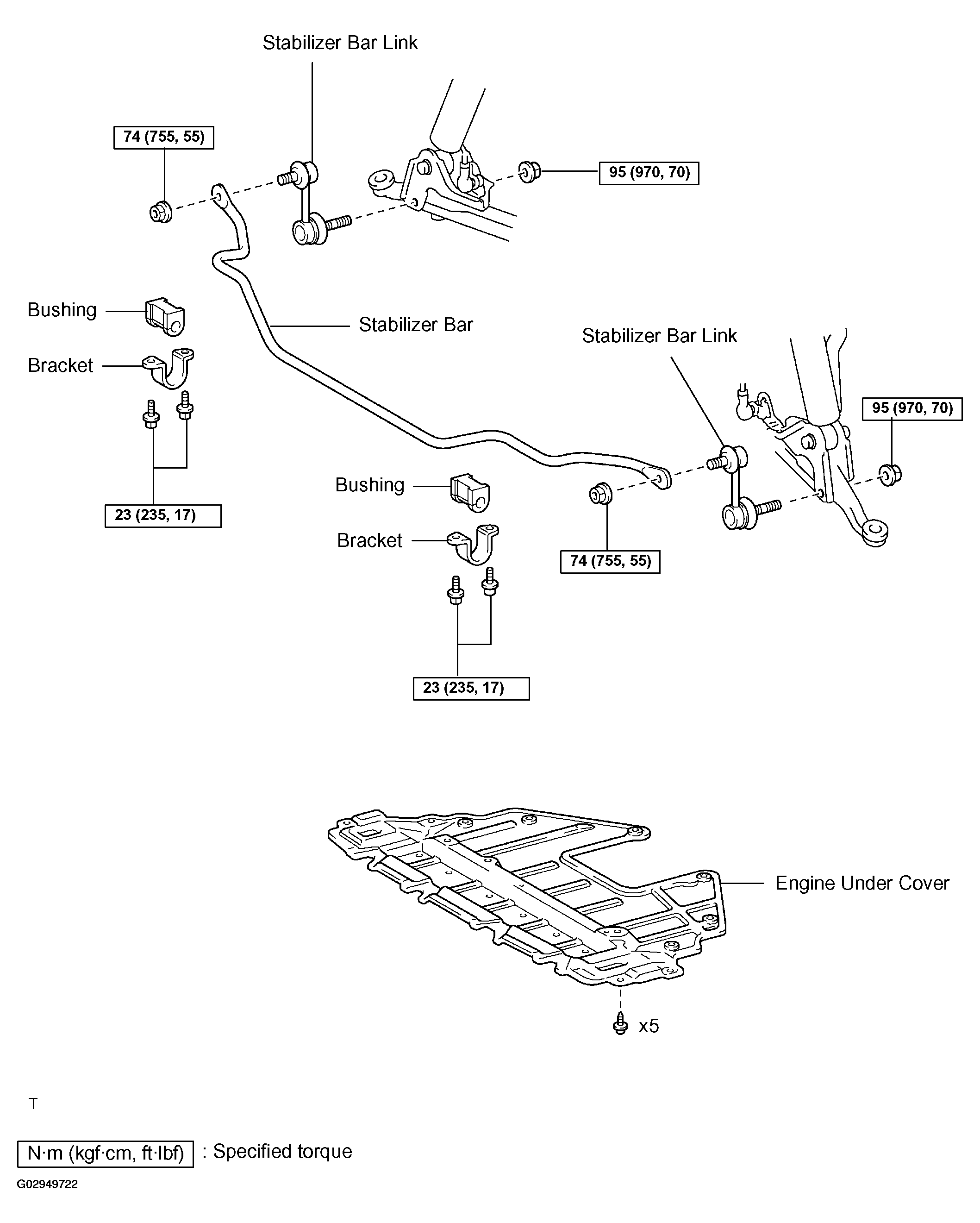

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications
G02949722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
