Rear Wheel Alignment: Inspection

MEASURE VEHICLE HEIGHT (See FRONT WHEEL ALIGNMENT )
INSTALL CAMBER-CASTER-KINGPIN GAUGE OR POSITION VEHICLE ON WHEEL ALIGNMENT TESTER
Follow the specific instructions of the equipment manufacturer.
INSPECT CAMBER
Camber (SEDAN):

(Canada):
CAMBER SEDAN REFERENCE

Camber Right-left error -0°23' +/- 30' (-0.38° +/- 0.5°) 30' (0.5°) or less

(Except Canada):
EXCEPT CANADA REFERENCE

Camber Right-left error -0°55' +/- 30' (-0.92° +/- 0.5°) 30' (0.5°) or less

Camber (WAGON):

(Canada):
CAMBER WAGON REFERENCE

Camber Right-left error -0°04' +/- 30' (-0.07° +/- 0.5°) 30' (0.5°) or less

(Except Canada):
EXCEPT CANADA REFERENCE

Camber Right-left error -0°23' +/- 30' (-0.38° +/- 0.5°) 30' (0.5°) or less

If the camber is not within the specified valve, after the toe-in is inspected, see step 5 to adjust.

INSPECT TOE-IN

Toe-in:

TOE-IN REFERENCE

Toe-in (total)

A + B: 0°12' +/- 12' (0.2° +/- 0.2°) C - D: 2 +/- 2 mm (0.08 +/- 0.08 in.)

If the toe-in is not within the specified valve, after the camber is inspected, see step 5 to adjust.

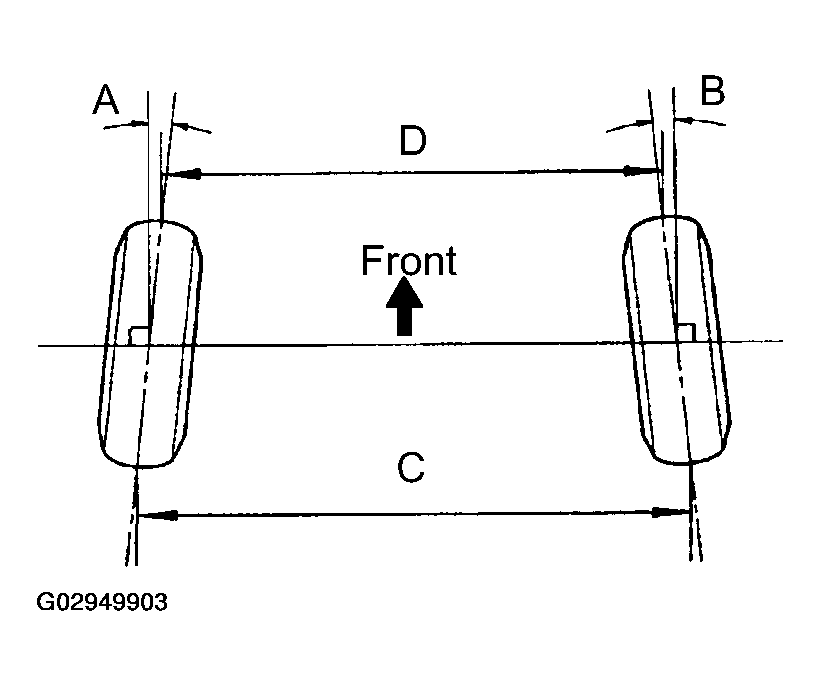

Fig 1: Inspecting Toe-In

ADJUST CAMBER AND TOE-IN

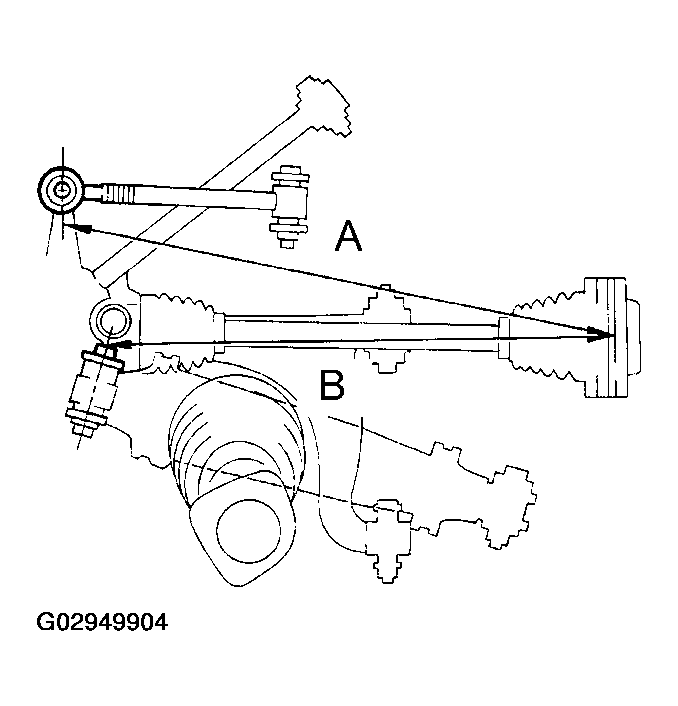

1. Measure the lengths of the toe control link "A" and No. 2 lower suspension arm "B", as shown in the illustration.
2. Obtain the difference between "A" and "B".
3. Employ the same manner described above to the other side.
4. Obtain the difference between right and left from the values obtained above.
  Right and left difference: 4.0 mm (0.157 in.) or less

  If they are not within the specified value, adjust the lengths of them by turning the adjusting cam.
5. Inspect the camber and toe-in.
6. Adjust the camber.
  1. Loosen the camber adjusting cam nut of the No. 2 lower suspension arm.
  2. Turn the camber adjusting cam of the No. 2 lower suspension arm and adjust the camber.
    HINT:

    Camber will change about 5.0' (0.08°) with each graduation of the adjusting cam.

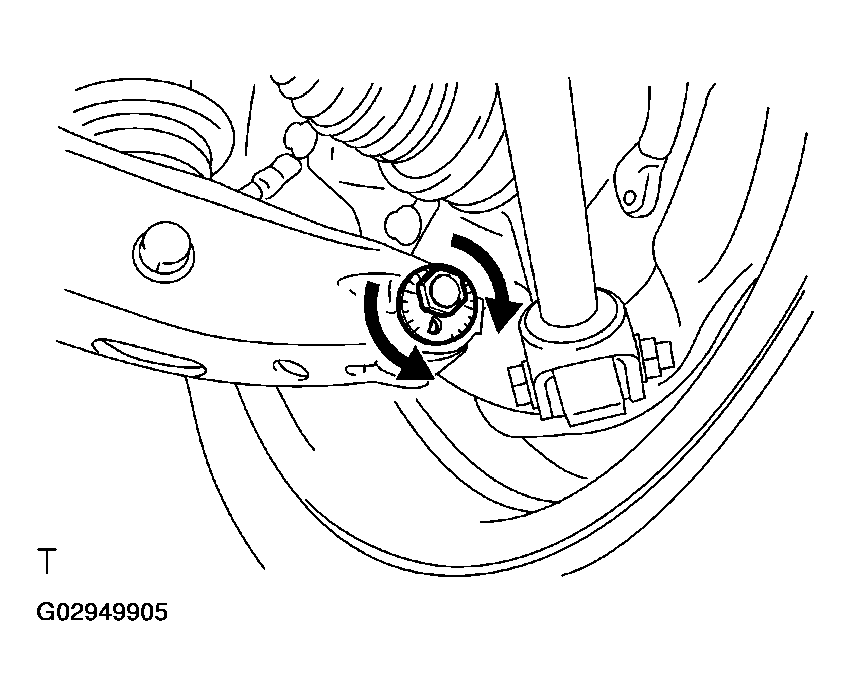

    Fig 3: Turning Camber Adjusting Cam Of No. 2 Lower Suspension Arm And Adjusting Camber
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Torque the camber adjusting cam nut.
    1. Torque: 110 N.m (1,120 kgf.cm, 81 ft.lbf)
7. Adjust the toe-in.
  1. Loosen the camber adjusting cam nut of the toe control link.
  2. Turn the camber adjusting cam of the toe control link and adjust the toe-in.
    HINT:

    Toe-in will change about 4.0 mm (0.157 in.) with each graduation of the adjusting cam.

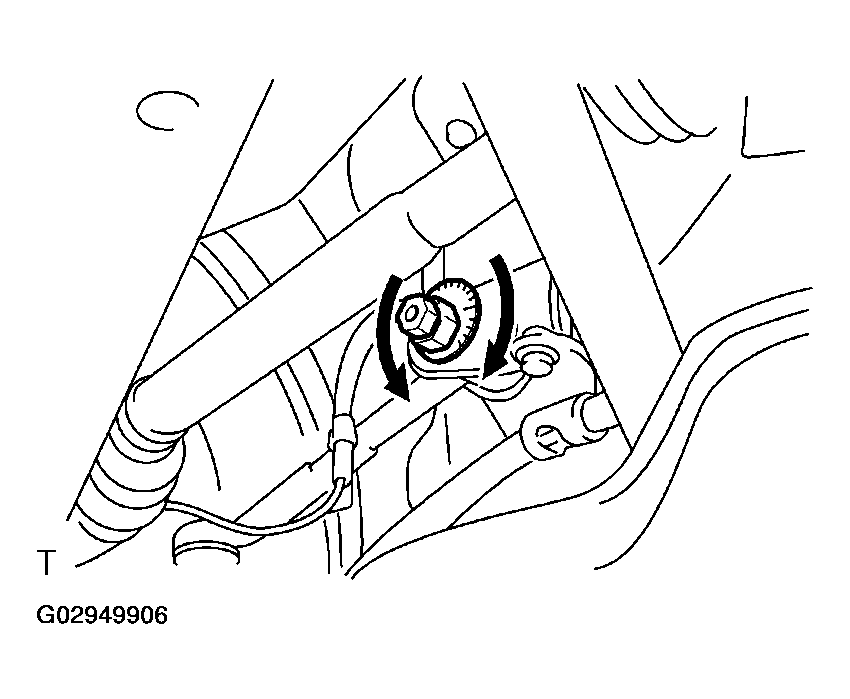

    Fig 4: Turning Camber Adjusting Cam Of Toe Control Link And Adjusting Toe-In
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Torque the camber adjusting cam nut.
  1. Torque: 49 N.m (500 kgf.cm, 36 ft.lbf)
