Headlamp Alignment Control Module: Service and Repair

HEADLAMP SWIVEL ECU ASSEMBLY

REPLACEMENT

HINT: Install is in the reverse order of removal.

1. PRECAUTION
2. SEPARATE BATTERY NEGATIVE TERMINAL
3. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
4. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
5. REMOVE GLOVE COMPARTMENT PLATE
6. REMOVE GLOVE COMPARTMENT HOLE COVER
7. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY W/INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER NO.2

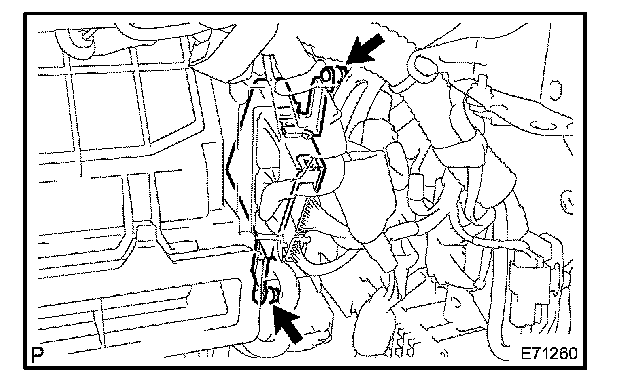

8. REMOVE HEADLAMP SWIVEL ECU ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 nuts and the headlamp swivel ECU assembly.

9. CONNECT BATTERY NEGATIVE TERMINAL
10. INSPECT SRS WARNING LIGHT
11. PERFORM INITIALIZATION
