DTC Check/Clear

  1. DTC CHECK
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Read the DTCs on the tester screen.
  2. DTC CLEAR

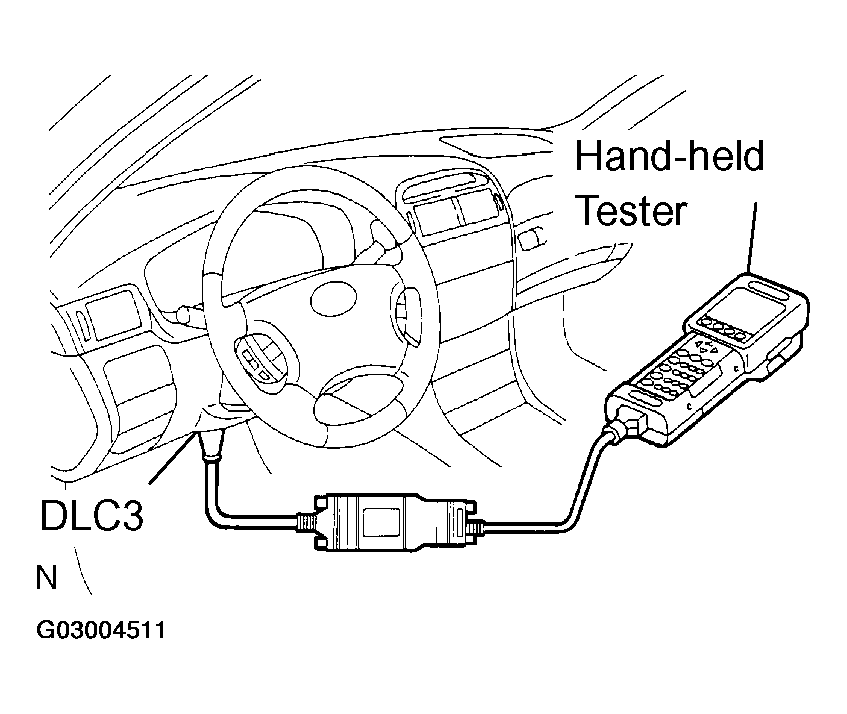

    Fig 1: Connecting Hand-Held Tester To DLC3
    G03004511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. Clear the DTCs following the prompts on the tester screen.
