Diagnostic Trouble Code Chart
HINT:
If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to chart.

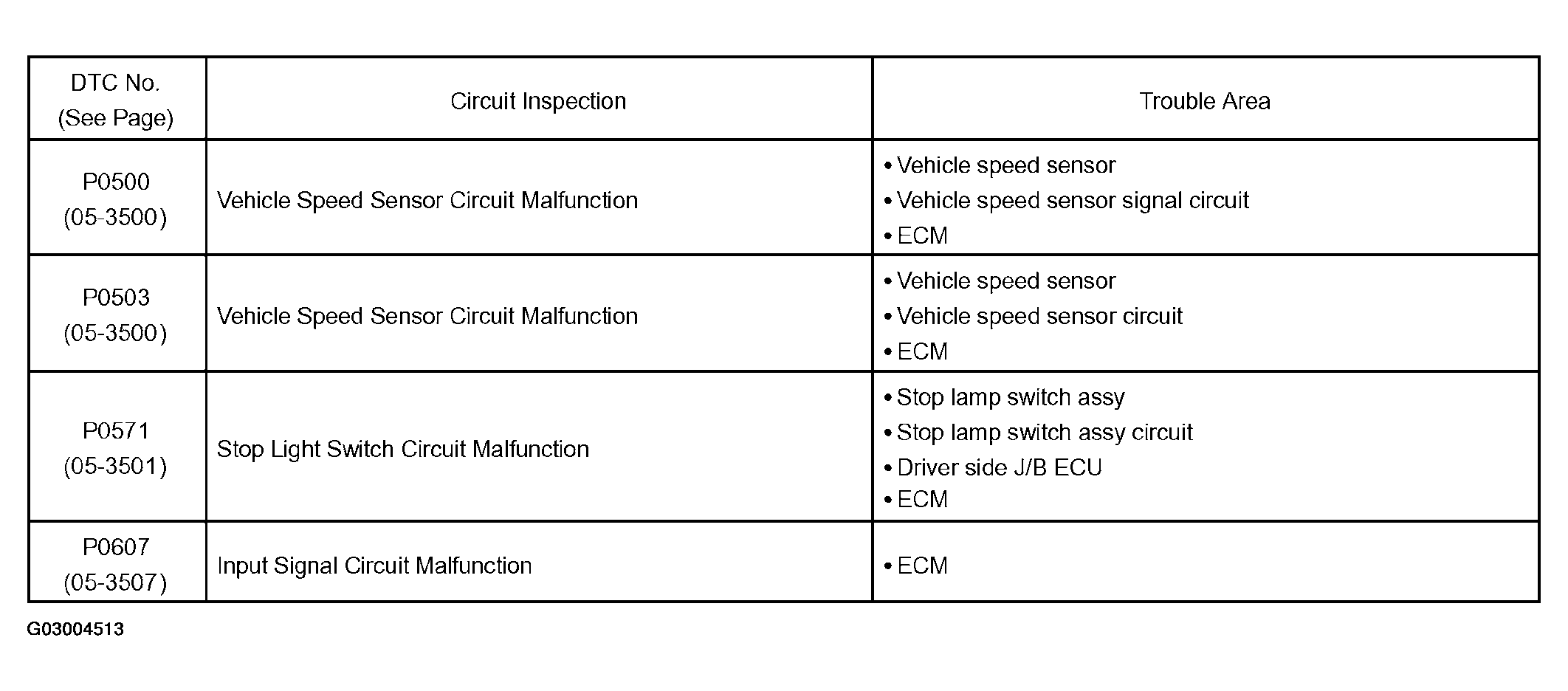

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0500 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0503 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0571 | STOP LIGHT SWITCH CIRCUIT MALFUNCTION |
| DTC P0607 | INPUT SIGNAL CIRCUIT MALFUNCTION |
