Cruise Control System - Diagnostics: Location

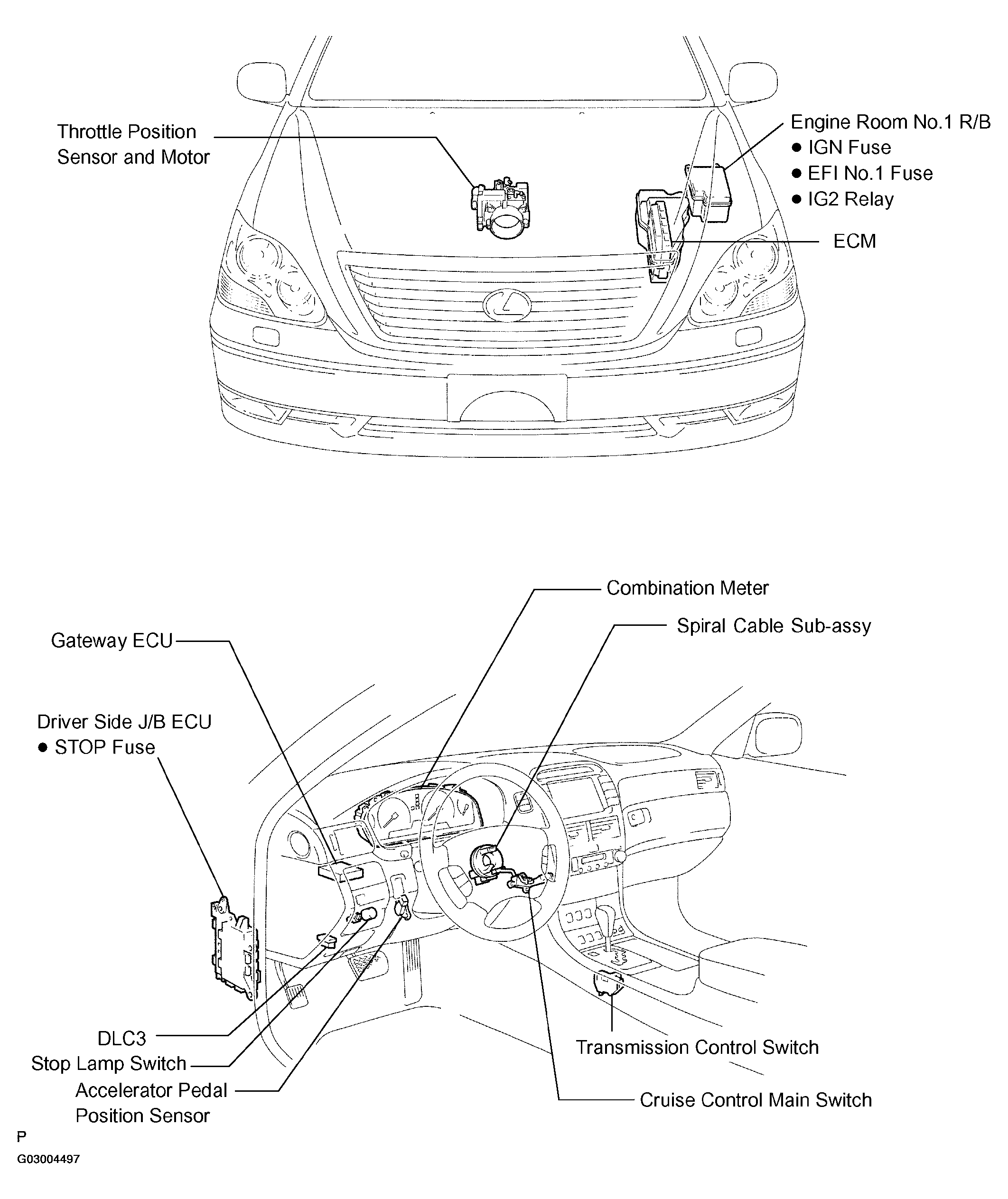

Fig 1: Identifying Cruise Control System Electrical Components Location (1 Of 2)
G03004497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

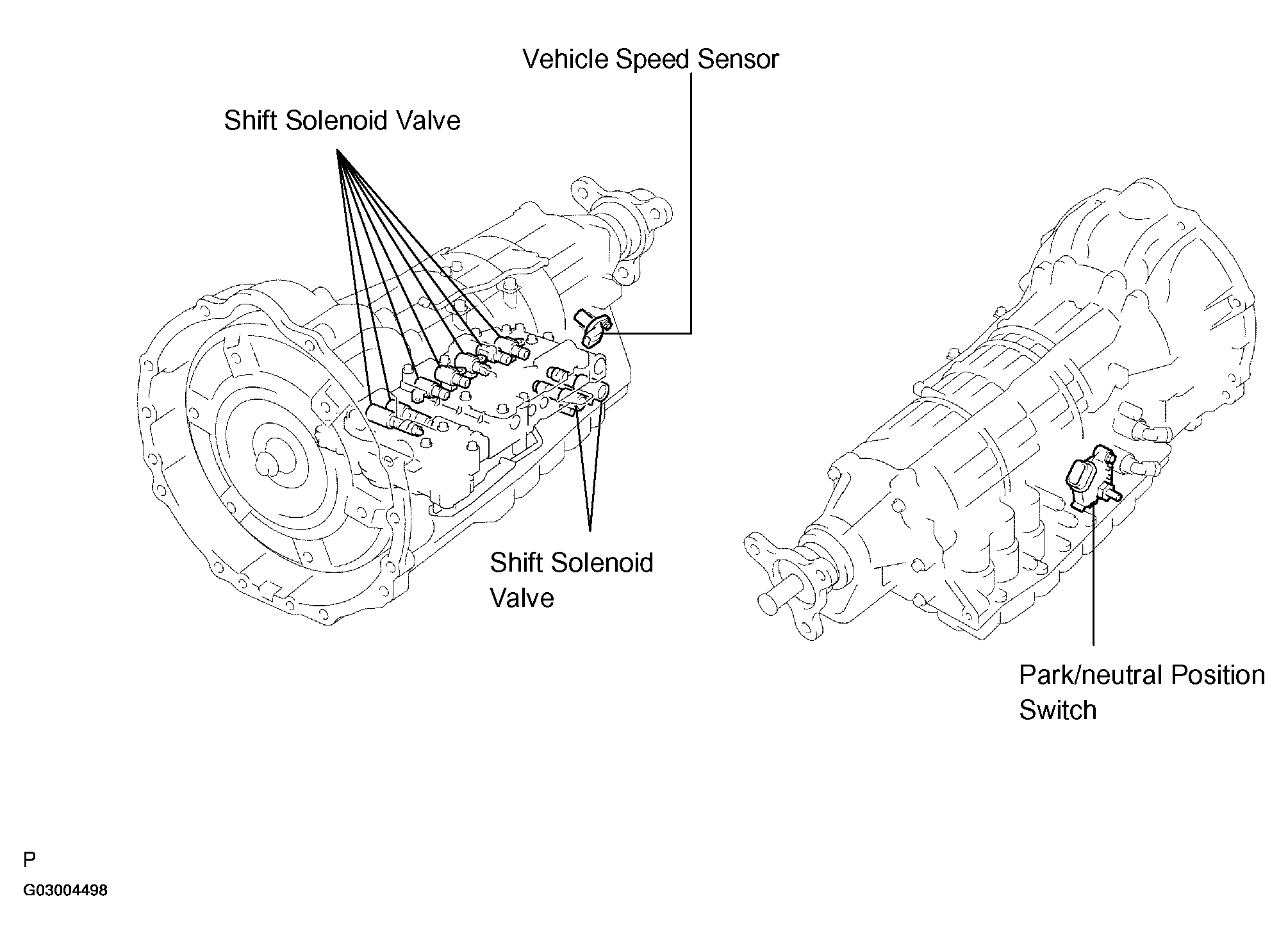

Fig 2: Identifying Cruise Control System Electrical Components Location (2 Of 2)
G03004498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
