DTC Check/Clear

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Read the DTCs by following the prompts on the tester screen.

1. Connect the hand-held tester to the DLC3.
2. Turn the ignition switch to the ON position.
3. Clear the DTCs following the prompts on the tester screen.

HINT:

Refer to the hand-held tester operators manual for further details.

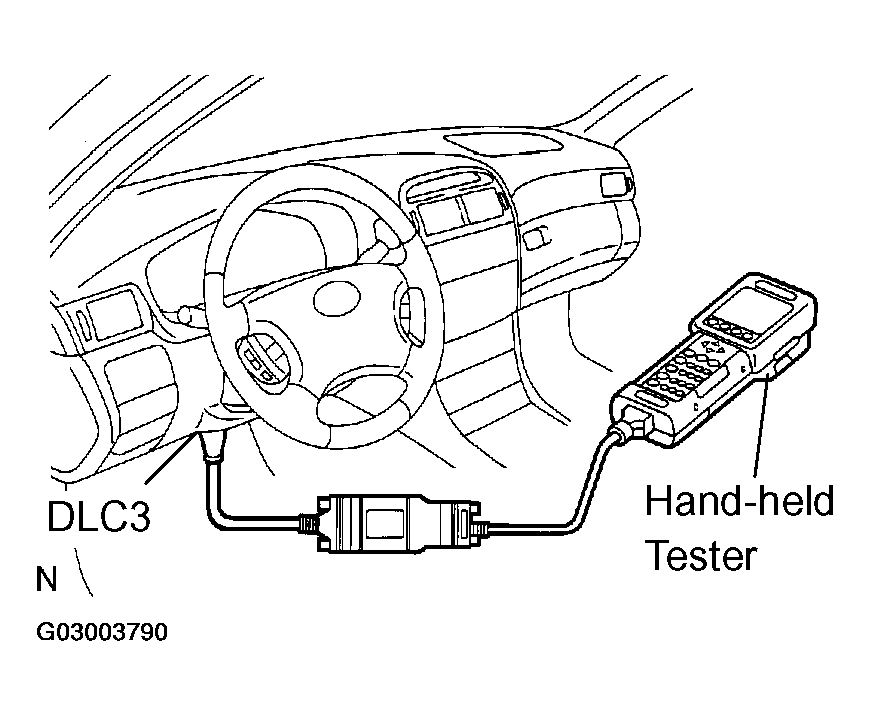

Fig 1: Connecting Hand-Held Tester To DLC3

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
