Diagnostic Trouble Code Chart
HINT:
If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the DTC chart below.

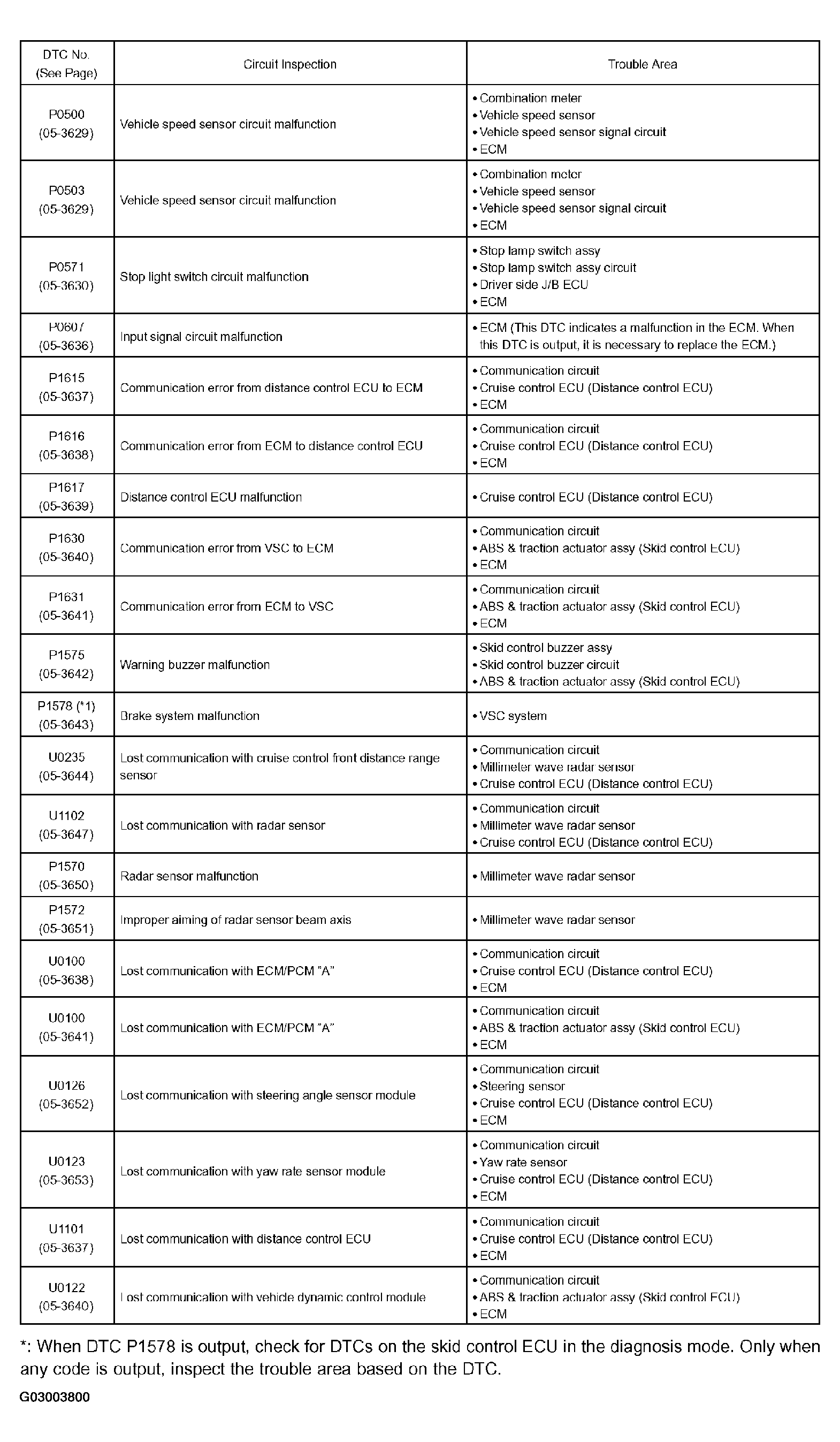

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0500, DTC P0503 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0571 | STOP LIGHT SWITCH CIRCUIT MALFUNCTION |
| DTC P0607 | INPUT SIGNAL CIRCUIT MALFUNCTION |
| DTC P1615, DTC U1101 | COMMUNICATION ERROR FROM DISTANCE CONTROL ECU TO ECM |
| DTC P1616, DTC U0100 | COMMUNICATION ERROR FROM ECM TO DISTANCE CONTROL ECU |
| DTC P1617 | DISTANCE CONTROL ECU MALFUNCTION |
| DTC P1630, DTC U0122 | COMMUNICATION ERROR FROM VSC TO ECM |
| DTC P1631, DTC U0100 | COMMUNICATION ERROR FROM ECM TO VSC |
| DTC P1575 | WARNING BUZZER MALFUNCTION |
| DTC P1578 | BRAKE SYSTEM MALFUNCTION |
| DTC U0235 | LOST COMMUNICATION WITH CRUISE CONTROL FRONT DISTANCE RANGE SENSOR |
| DTC U1102 | LOST COMMUNICATION WITH RADAR SENSOR |
| DTC P1572 | IMPROPER AIMING OF RADAR SENSOR BEAM AXIS |
| DTC U0126 | LOST COMMUNICATION WITH STEERING ANGLE SENSOR MODULE |
| DTC U0123 | LOST COMMUNICATION WITH YAW RATE SENSOR MODULE |
