Audio & Visual System: Multi-Display: Replacement

HINT:

• See COMPONENTS .
• See LOCATION  .
• Installation is in the reverse order of removal.

1. SHIP MODE SETTING (See  REPLACEMENT   )
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See step 26 on  REPLACEMENT  )
3. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (See step 27 on  REPLACEMENT  )
4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (See  REPLACEMENT   )
5. SHIP MODE CONFIRMATION (See  REPLACEMENT   )
6. REMOVE TEMPERATURE CONTROL SWITCH ASSY
   1. Disengage the 2 claws.
   2. Disconnect the connector and remove the temperature control switch assembly.
   3. Perform the same procedure on the other side.

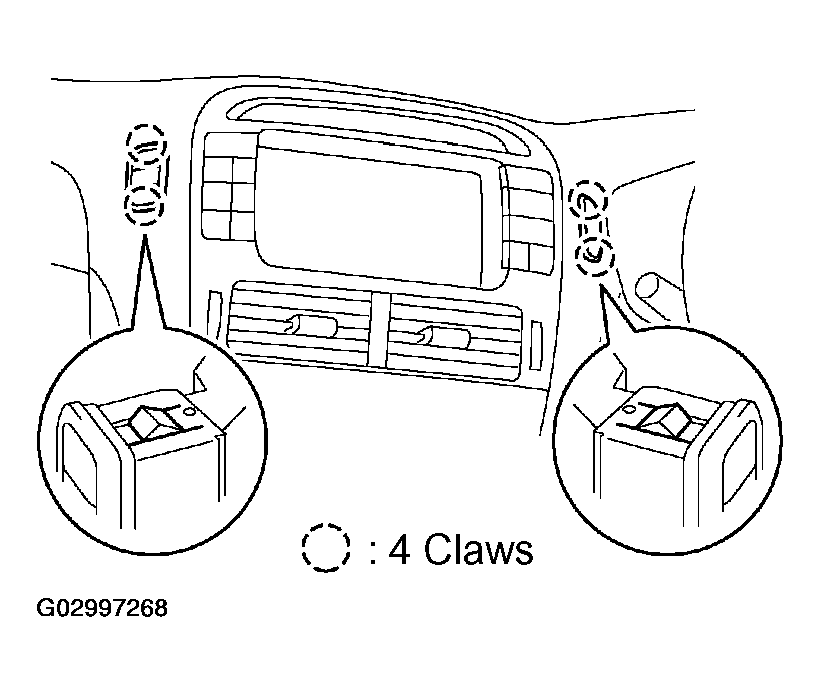

      Fig 1: Disengaging Claws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
   1. Remove the 4 bolts.
   2. Disengage the 4 clips.
      NOTE: In order to prevent the safety pad from being damaged, do not pry with a screwdriver or similar tool.
   3. Disconnect the connector and remove the instrument cluster finish panel sub-assy center.

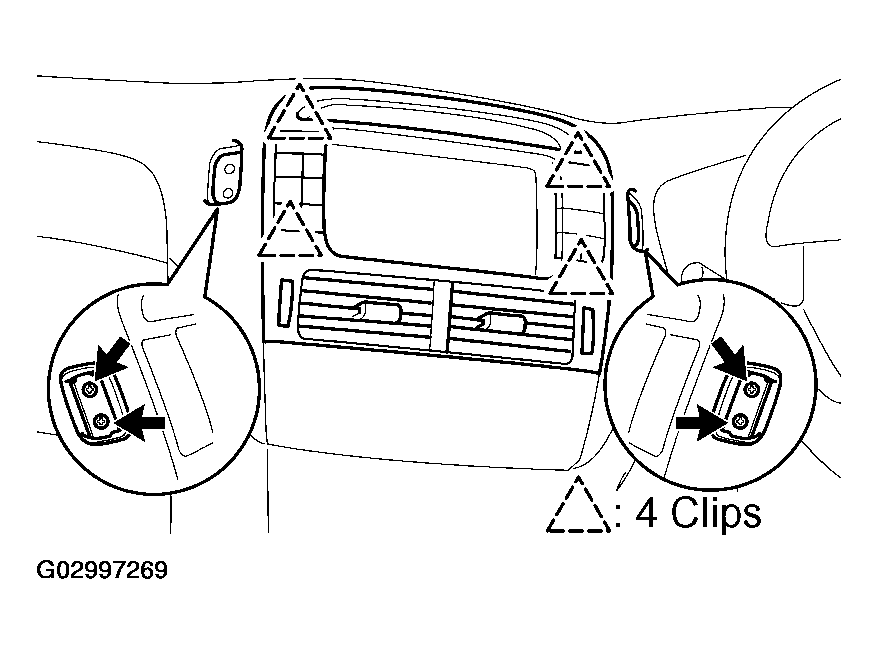

      Fig 2: Removing Bolts And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE MULTI-DISPLAY
   1. Remove the 4 screws and multi-display.

   HINT:

   After the replacement, perform the screen noise automatic adjustment when screen noise occurs (see SCREEN NOISE AUTOMATIC ADJUSTMENT ).

   Fig 3: Removing Multi-Display Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
