Pre-Collision Safety System - Diagnostics: Location

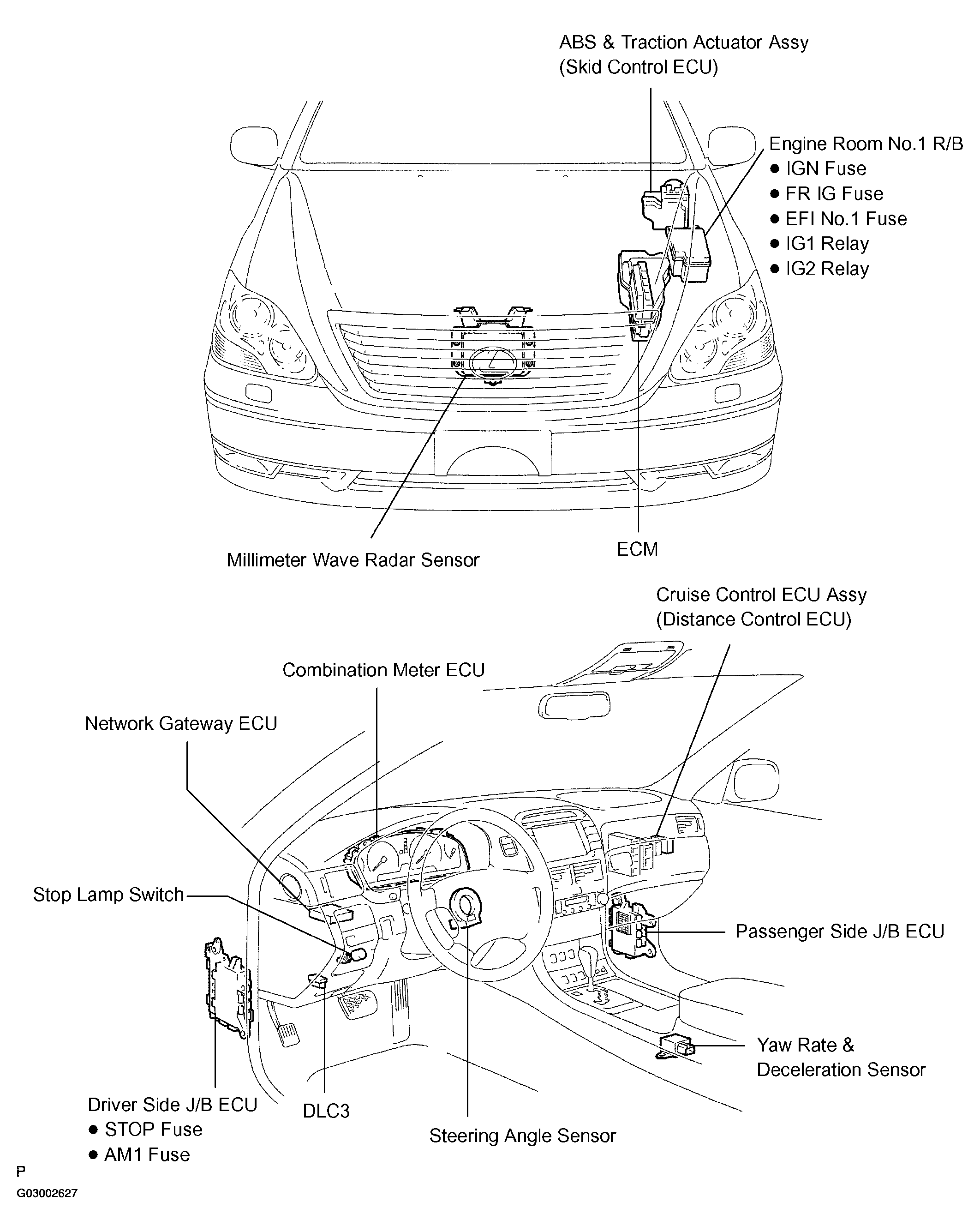

Fig 1: Identifying Components & Replacements Location (1 Of 2)
G03002627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

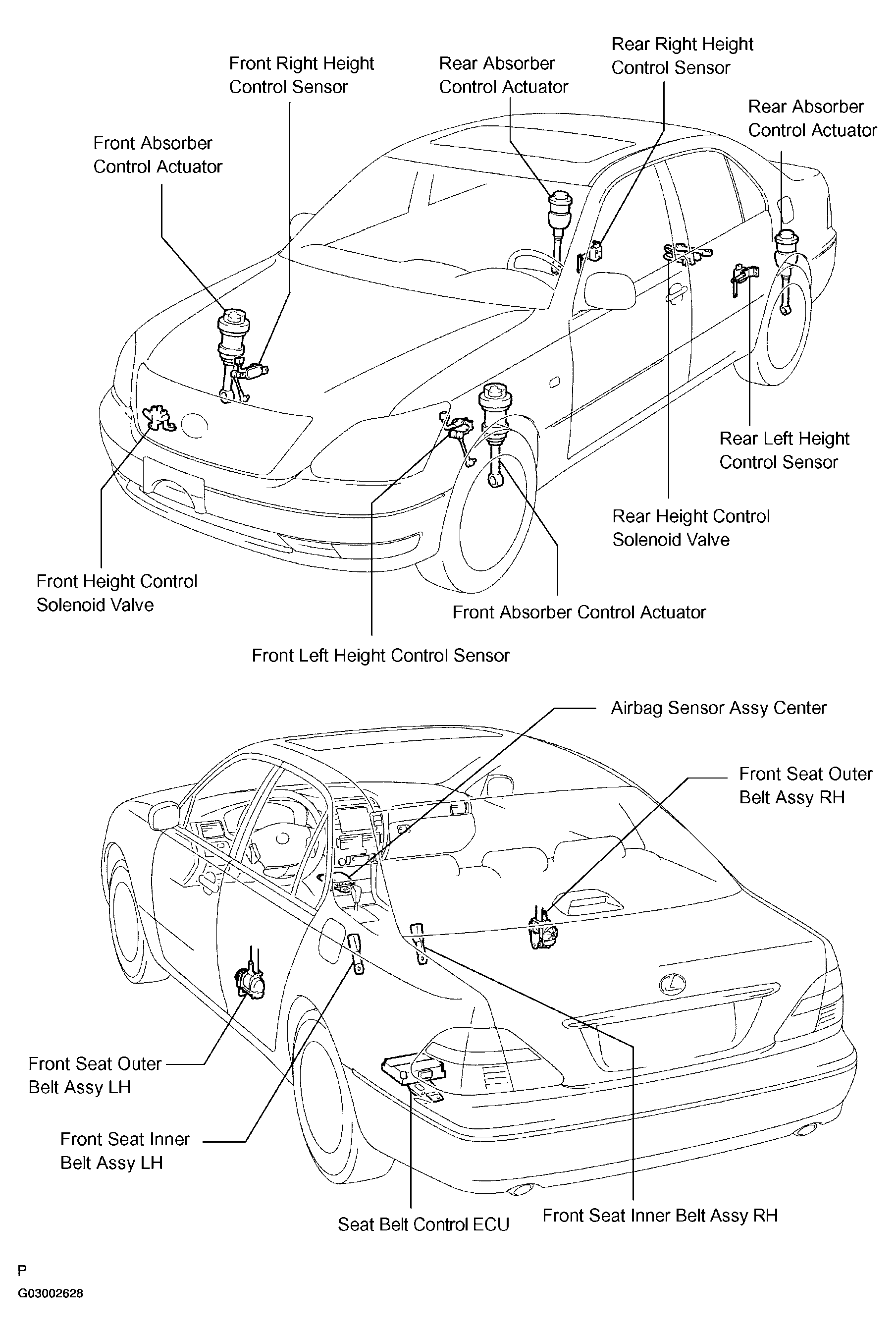

Fig 2: Identifying Components & Replacements Location (2 Of 2)
G03002628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
