Height Control Sensor Sub-ASSY Rear LH: Components

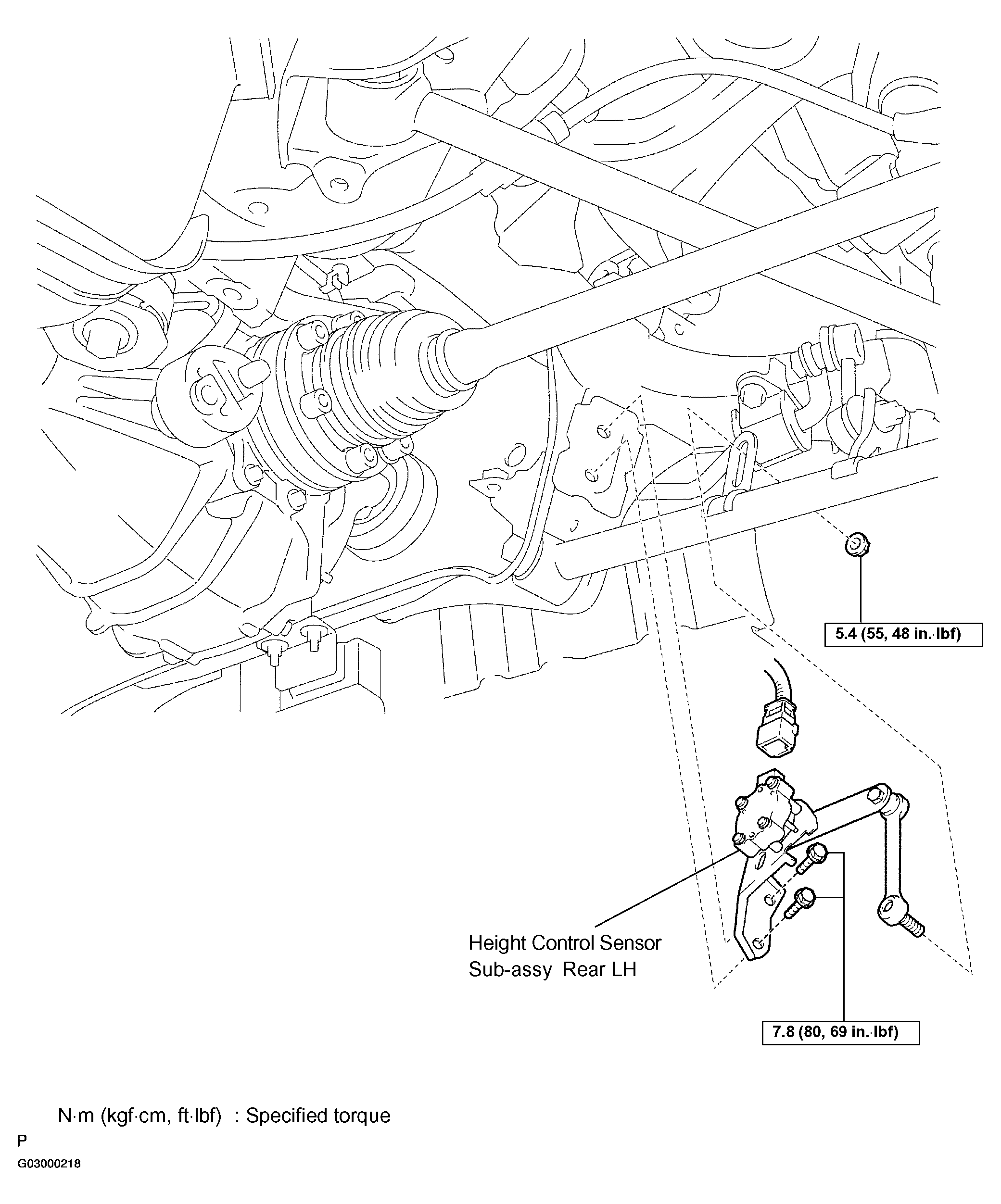

Fig 1: Identifying Height Control Sensor Sub-Assy Rear LH Components
G03000218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
