Navigation Module: Testing and Inspection

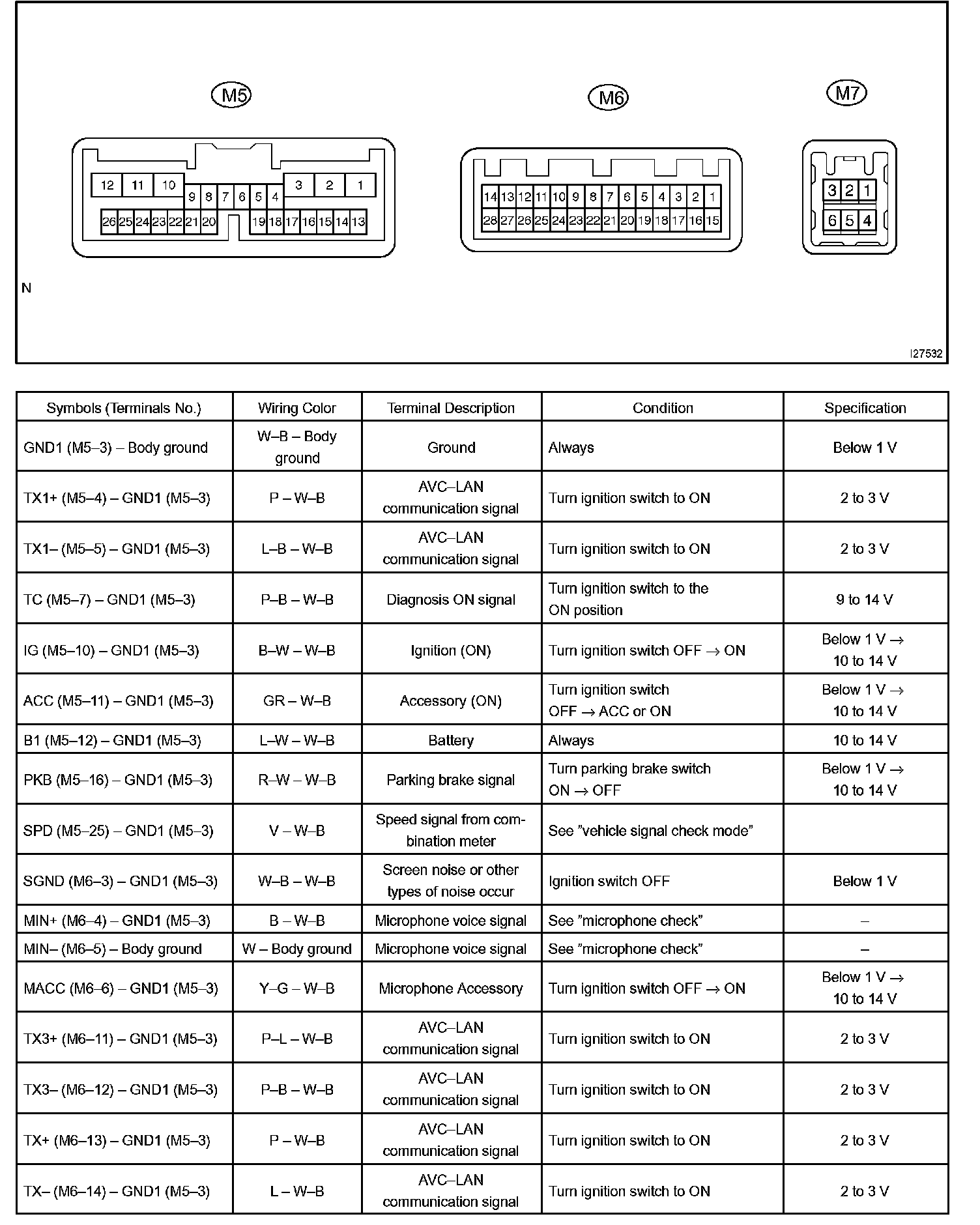

Terminals Of Control Module/Pinouts - Multi Display Part 1:

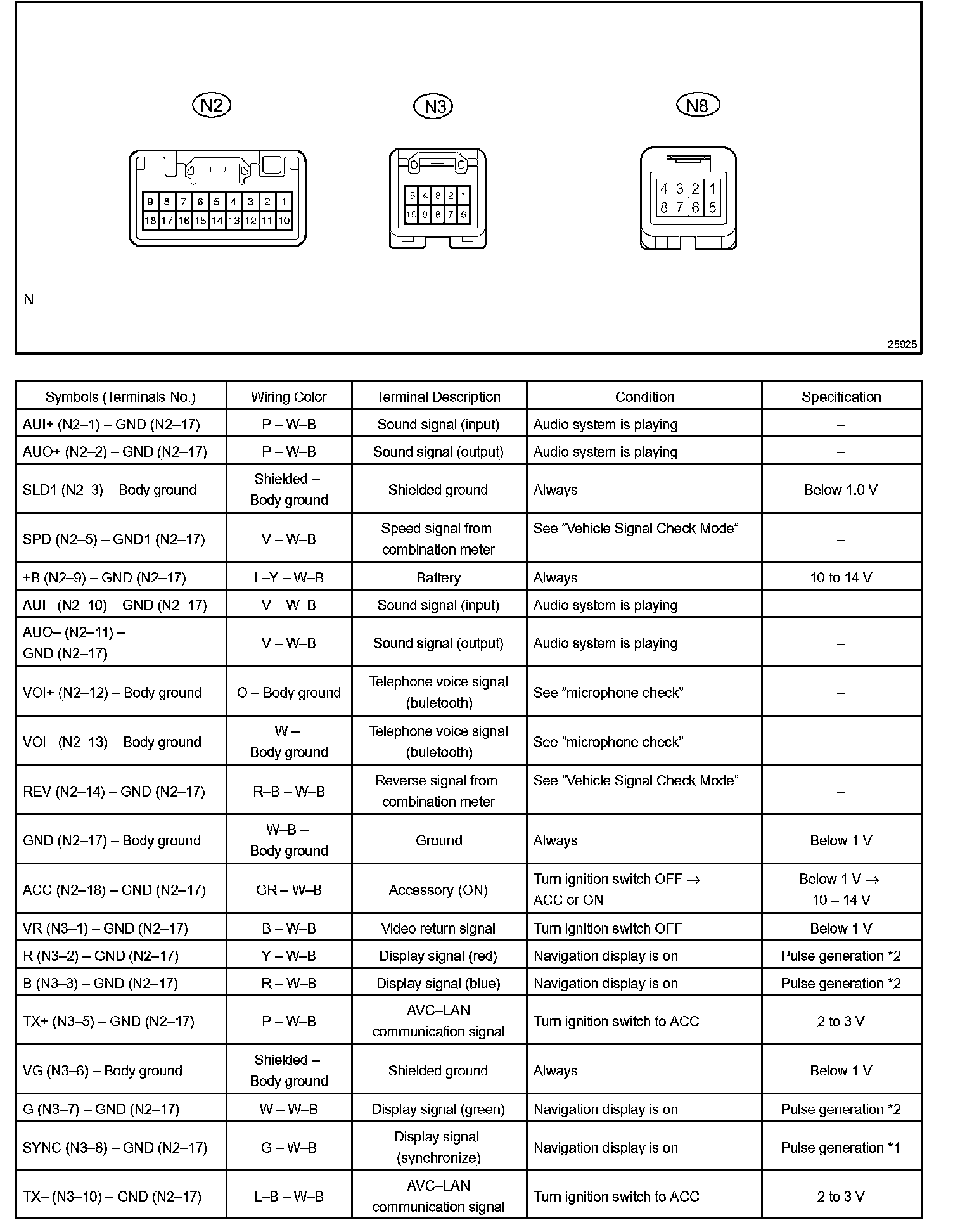

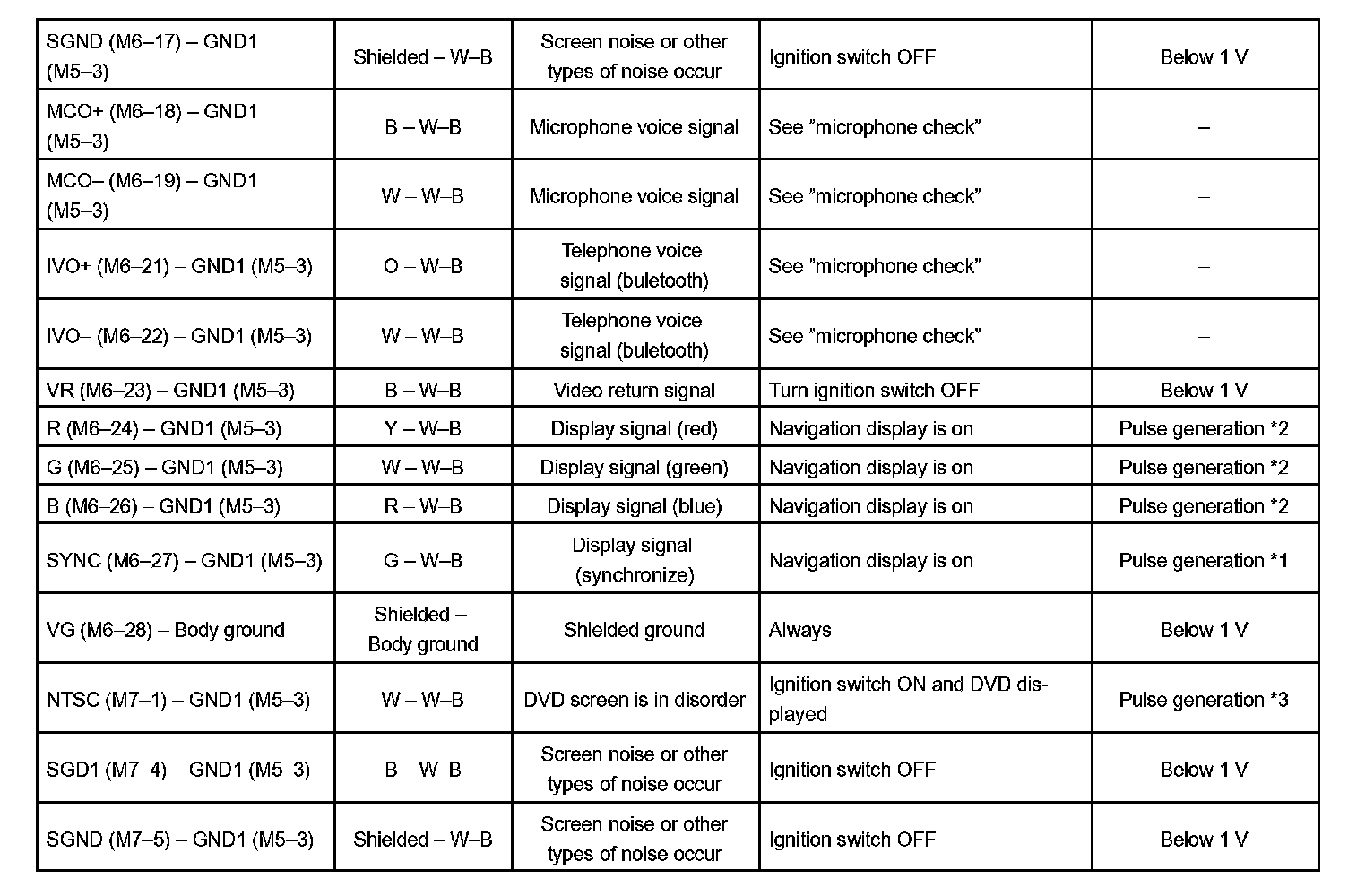

Terminals Of Control Module/Pinouts - Multi Display Part 2:

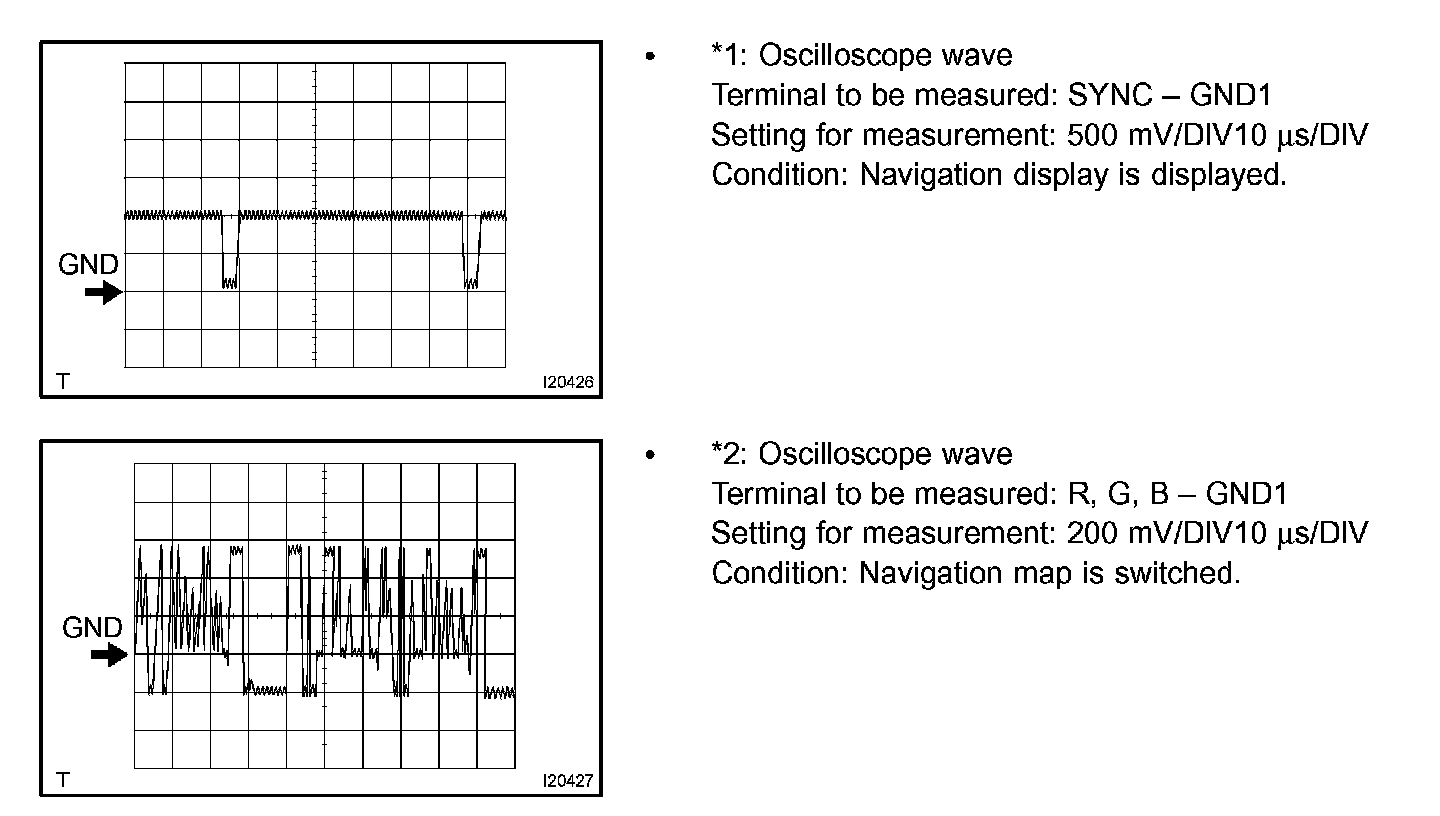

Oscilloscope Waveforms Part 1:

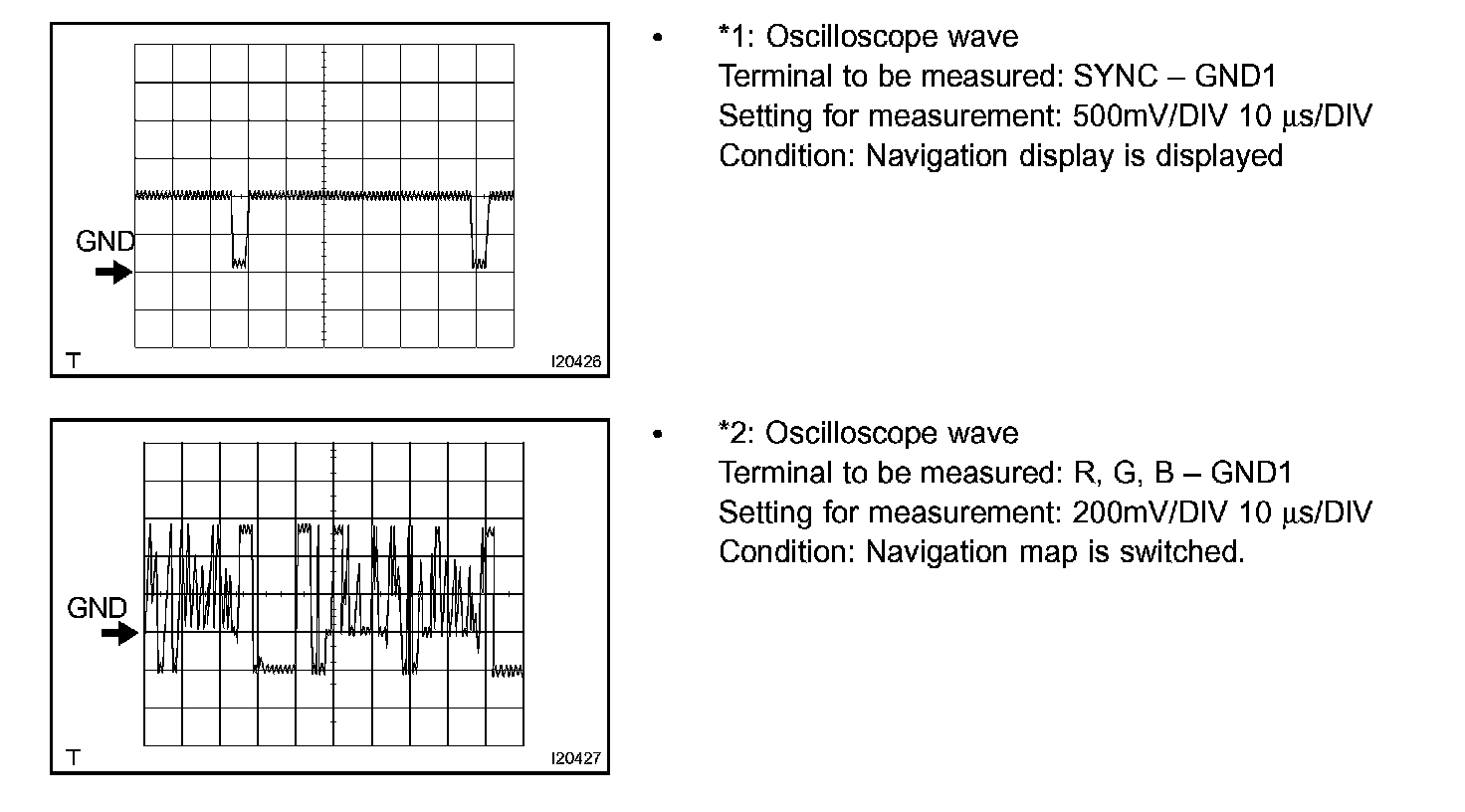

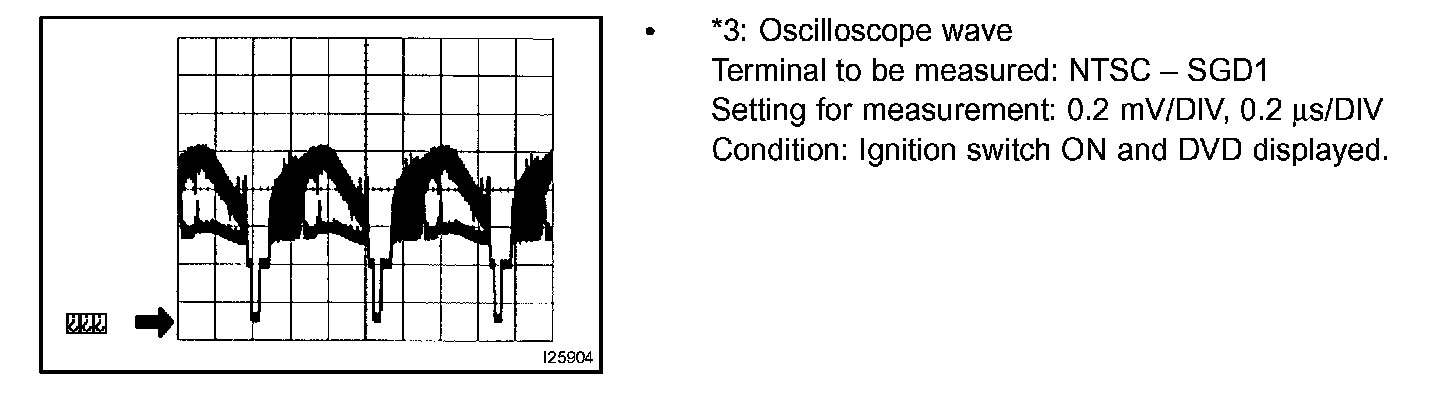

Oscilloscope Waveforms Part 2:

Terminals Of Control Module/Pinouts - Navigation ECU Part 1:

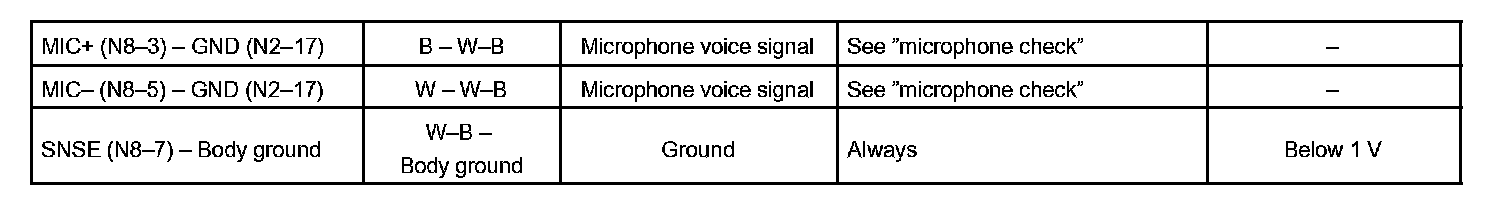

Terminals Of Control Module/Pinouts - Navigation ECU Part 2:

Oscilloscope Waveforms:

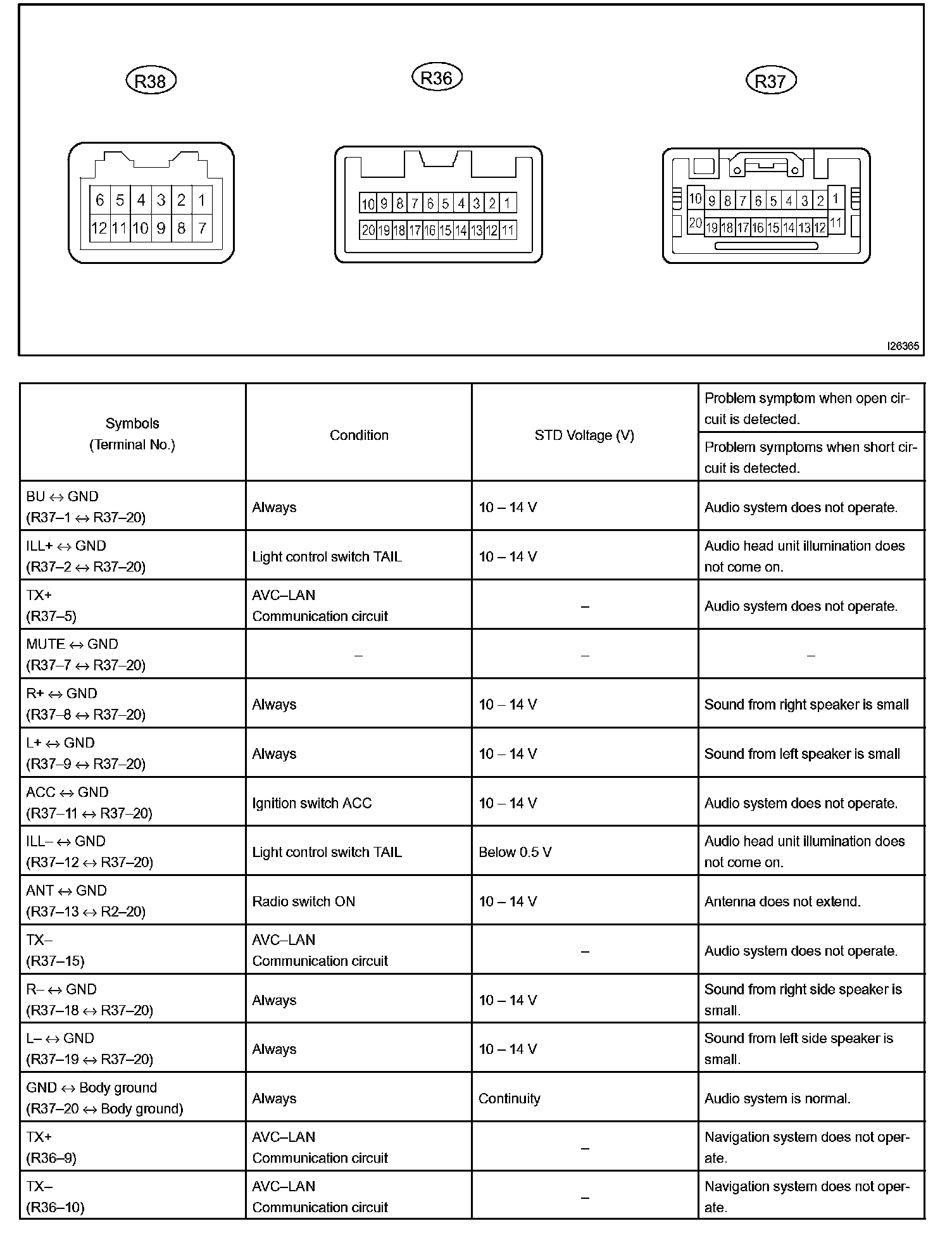

Terminals Of Control Module/Pinouts - Radio Receiver Assembly Part 1:

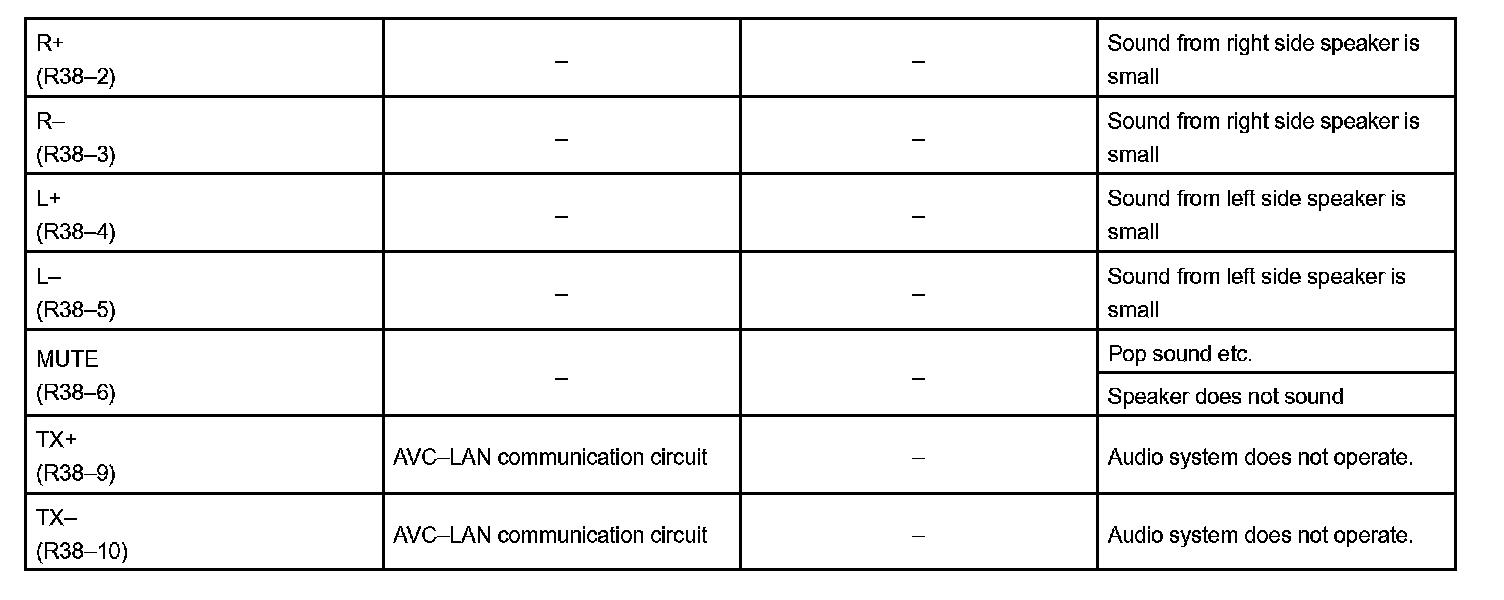

Terminals Of Control Module/Pinouts - Radio Receiver Assembly Part 2:

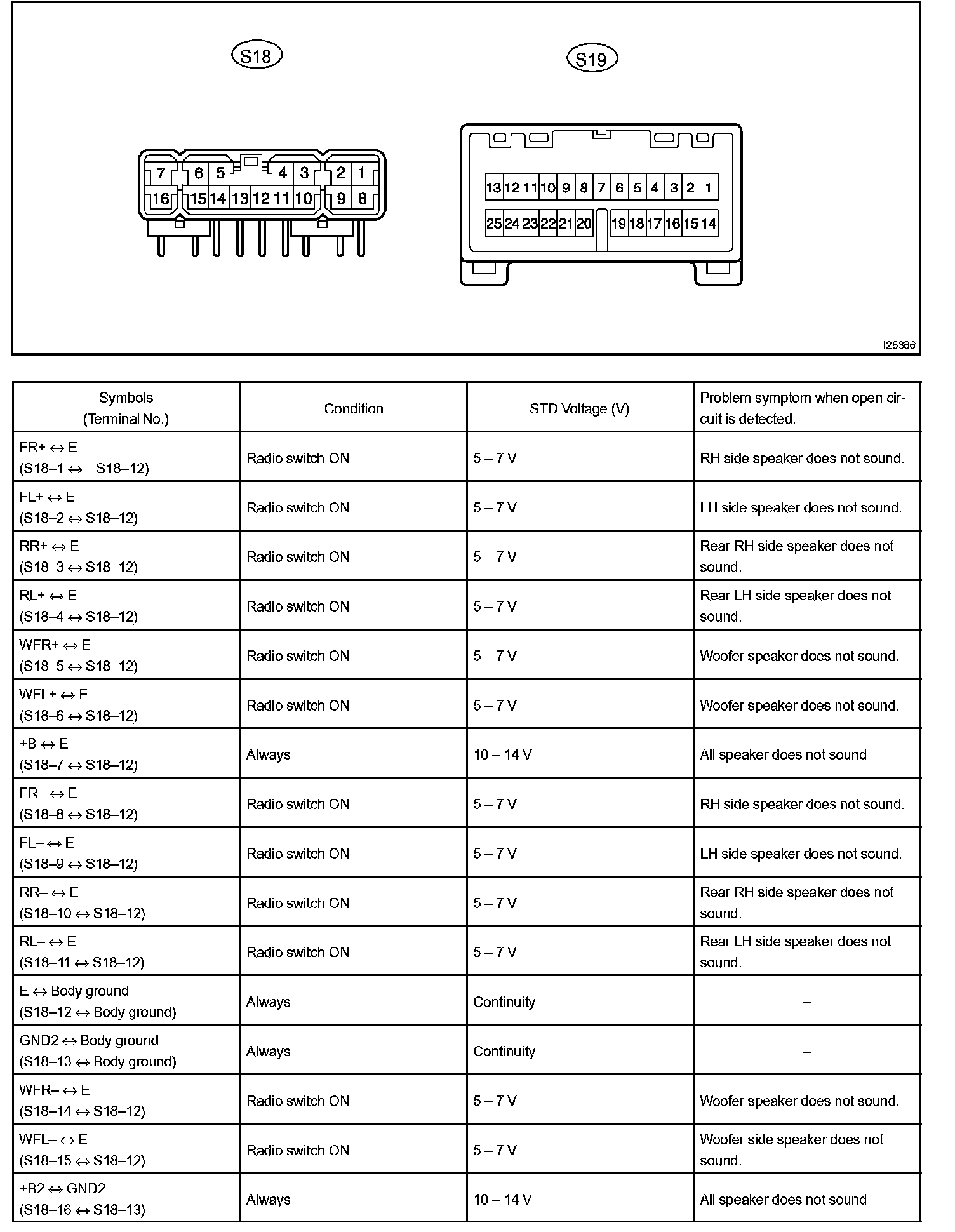

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Part 1:

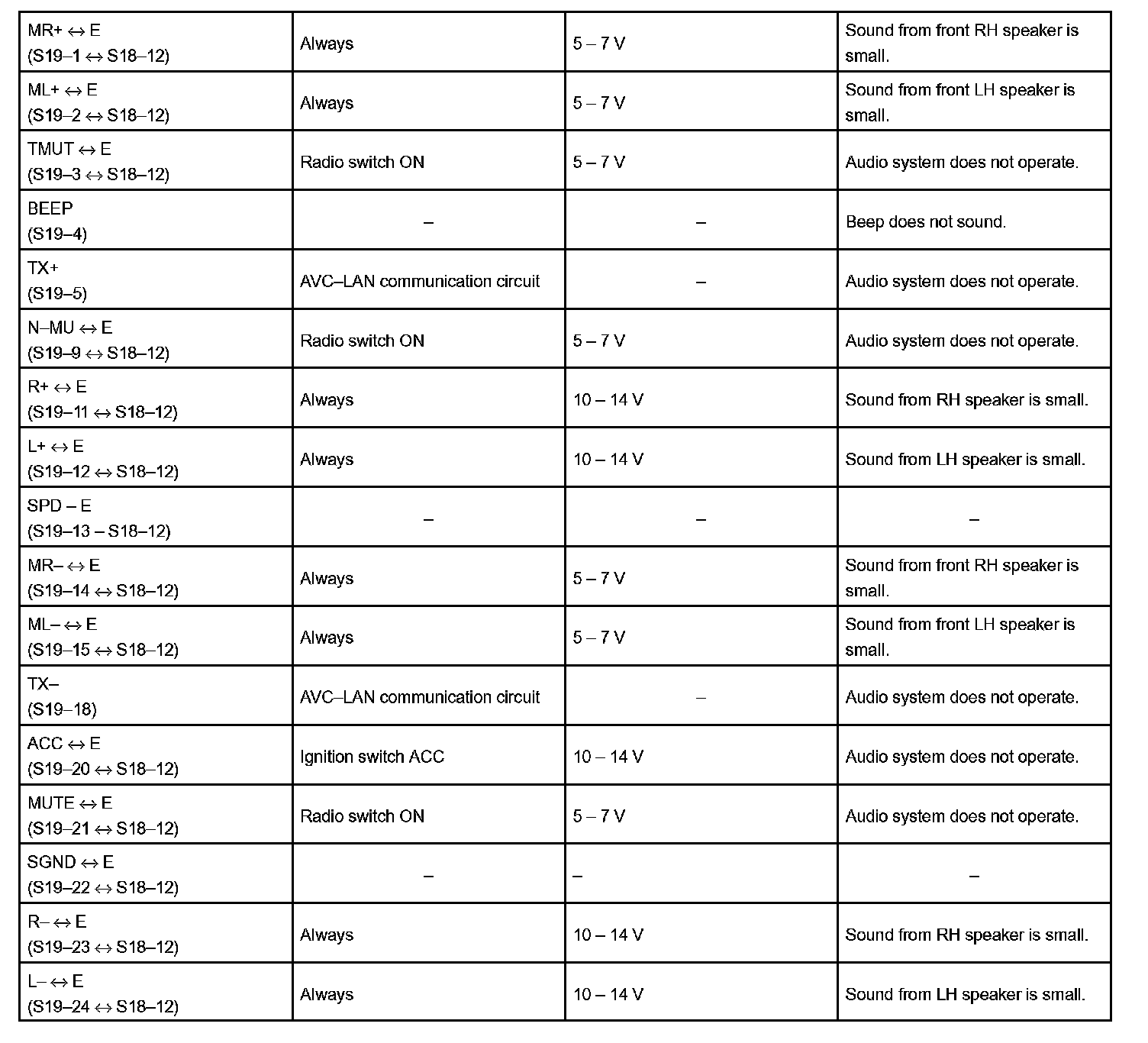

Terminals Of Control Module/Pinouts - Stereo Component Amplifier Part 2:

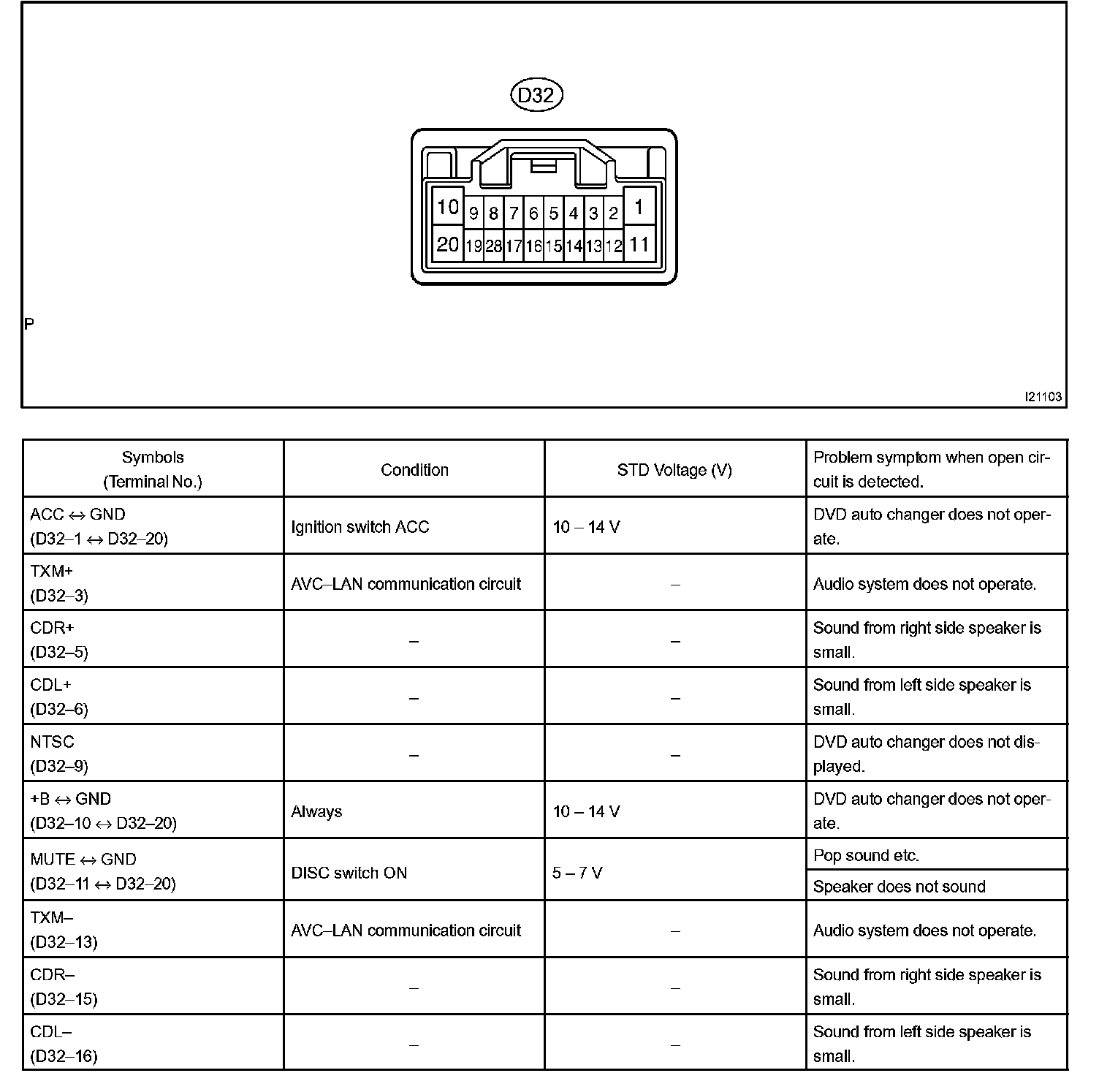

Terminals Of Control Module/Pinouts - DVD Auto Changer:

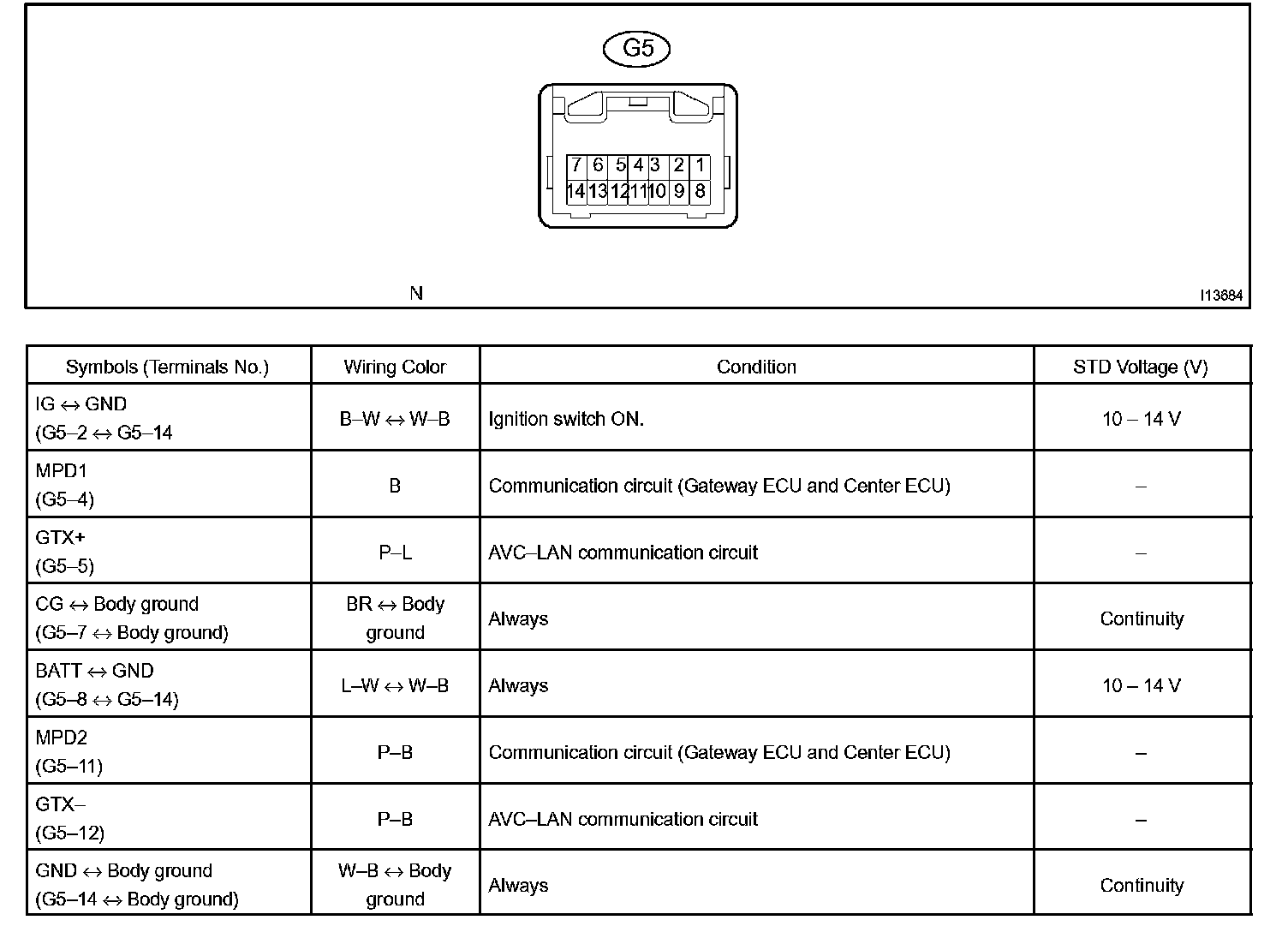

Terminals Of Control Module/Pinouts - Gateway ECU:
