Variable Gear Ratio Steering

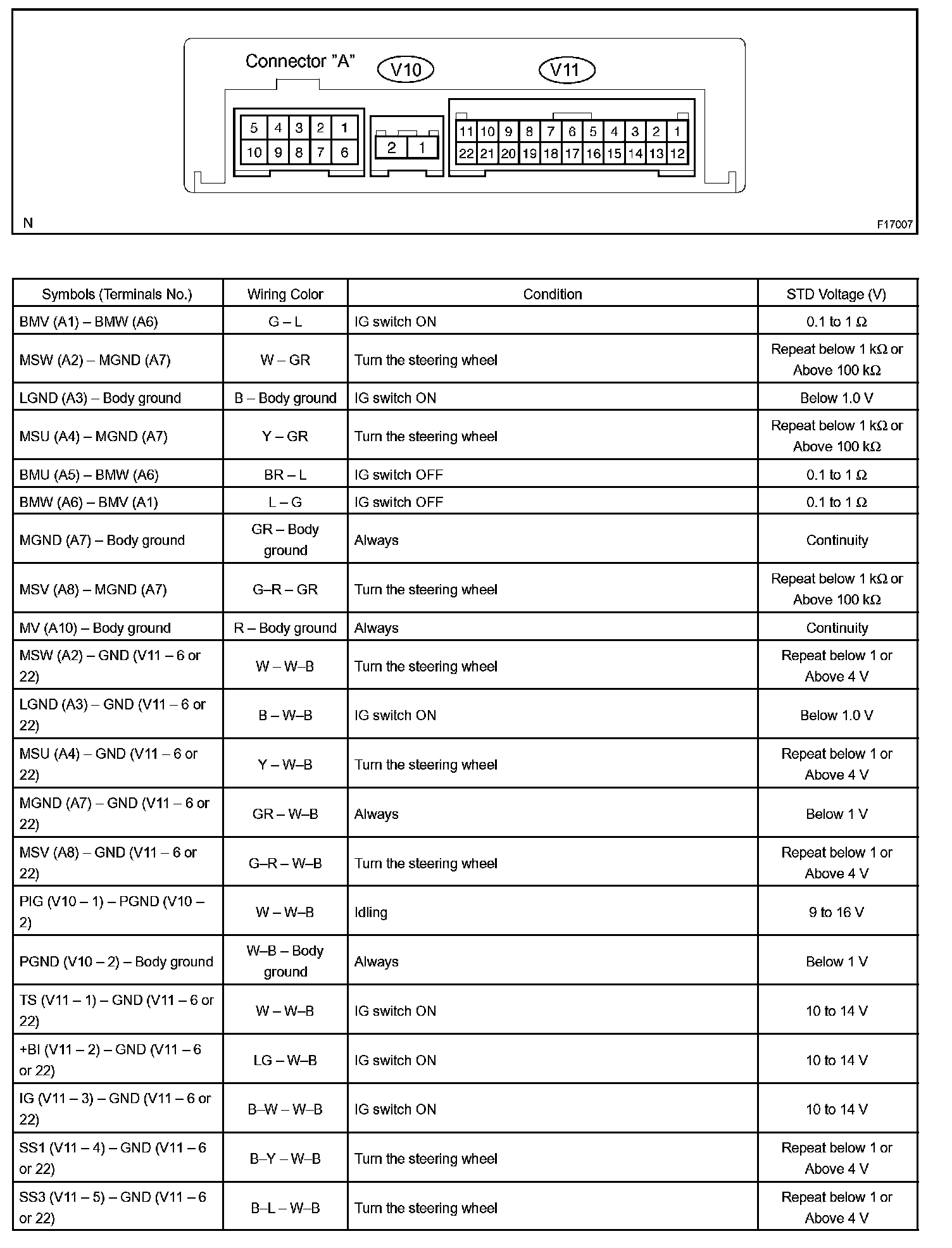

Terminals Of Control Module/Pinouts Part 1:

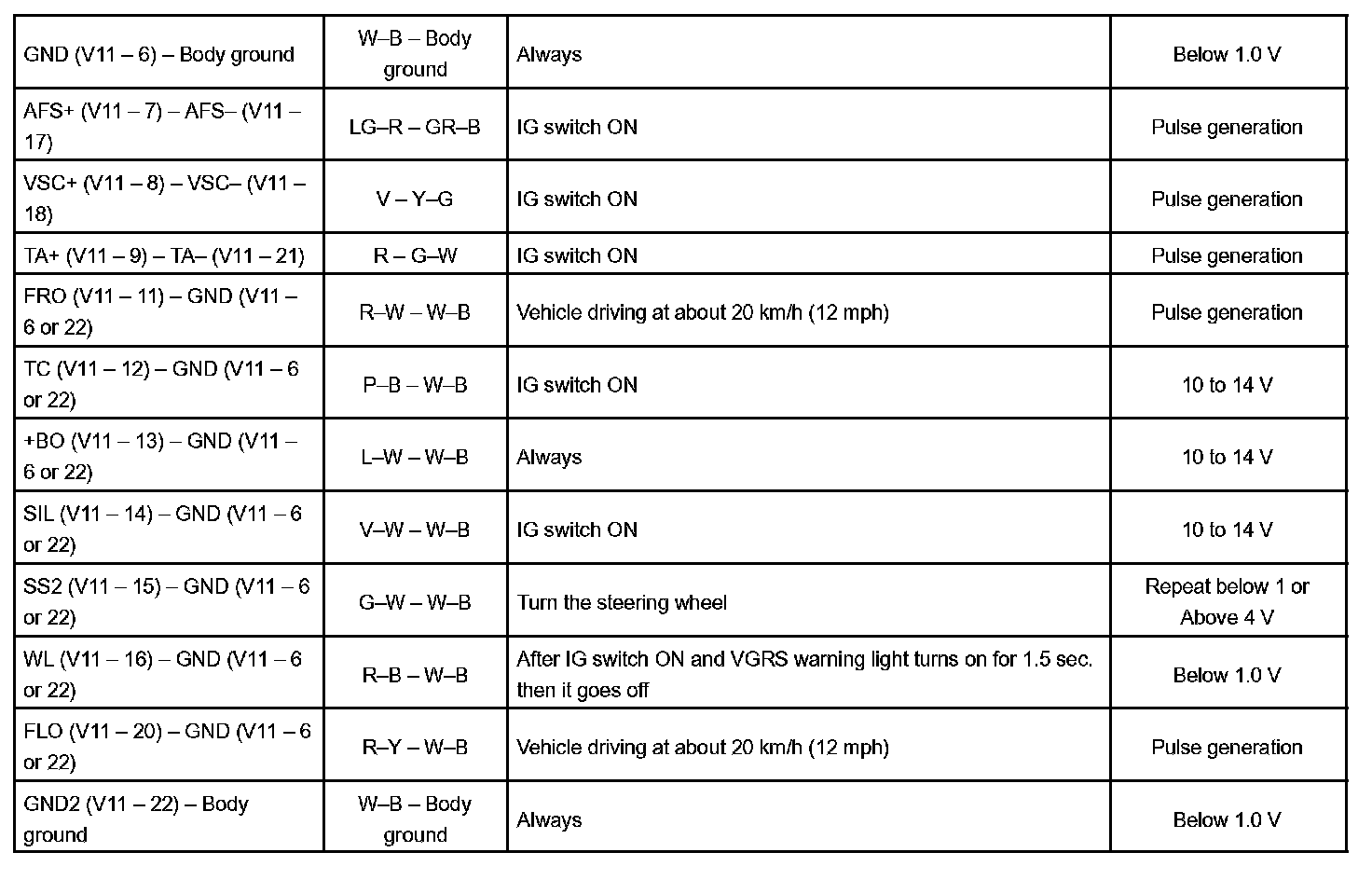

Terminals Of Control Module/Pinouts Part 2:
