Hood Lock Control: Installation

Apply MP grease to the sliding surface of the lock.

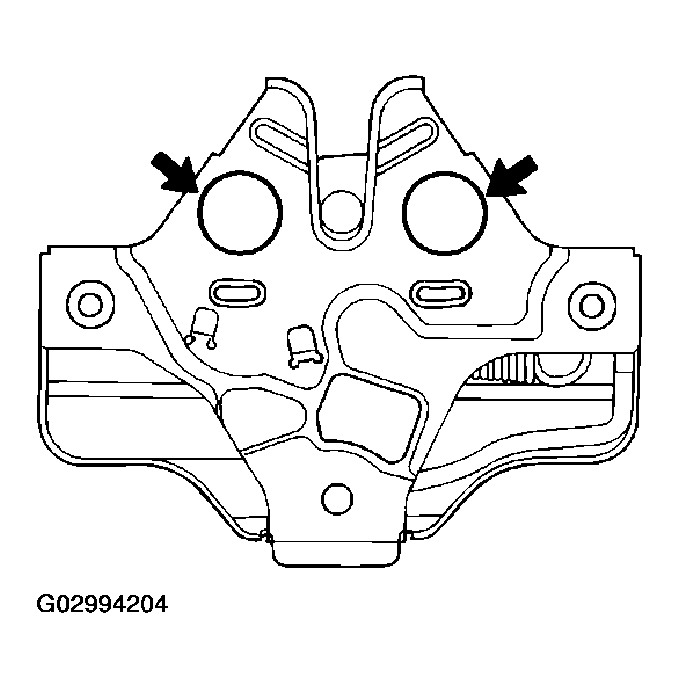

Fig 1: Applying MP Grease To Sliding Surface Of Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Push the rear side cable through the grommet.
2. Using a screwdriver, push the cable stopper into the grommet.

   HINT:

   • Tape the screwdriver tip before use.
   • Do not damage the grommet with the screwdriver.

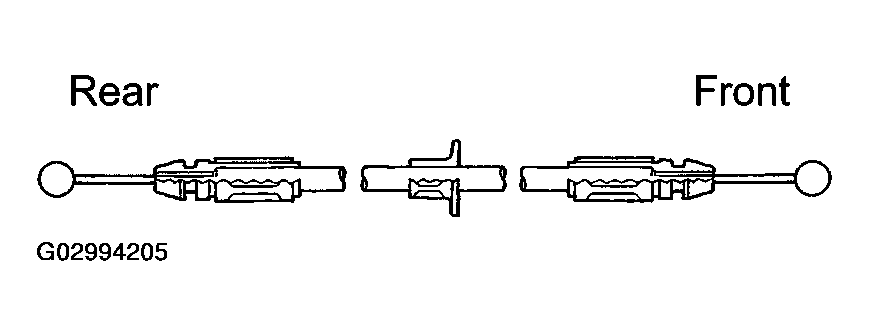

   Fig 2: Pushing Rear Side Cable Through Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pass the front side cable through the upper radiator support.
4. Install the cable with clamps.

After checking for proper operation, tighten the 2 bolts and nut to install the lock.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)
