Side Step: Components

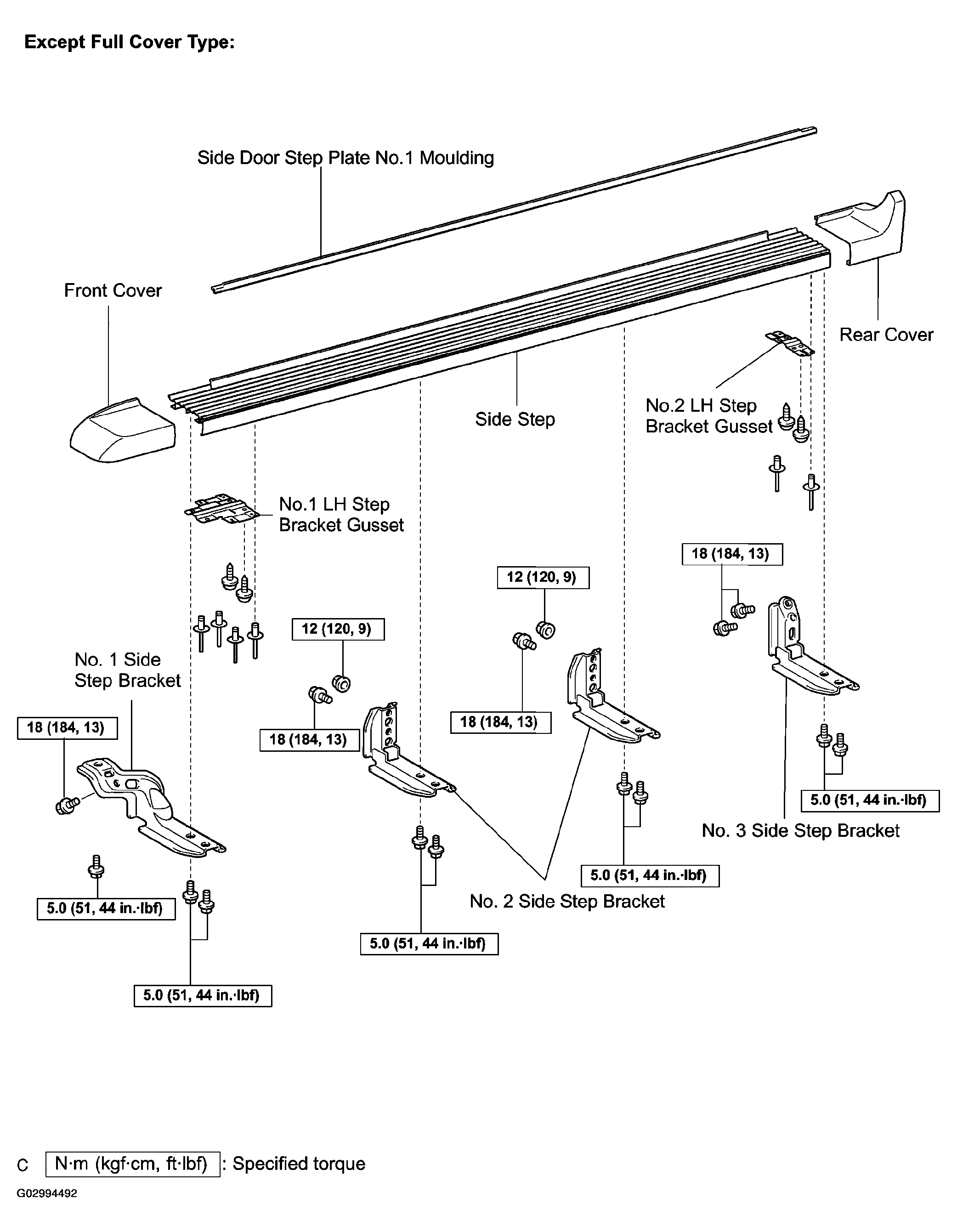

Fig 1: Identifying Side Step And Components (1 Of 2)
G02994492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

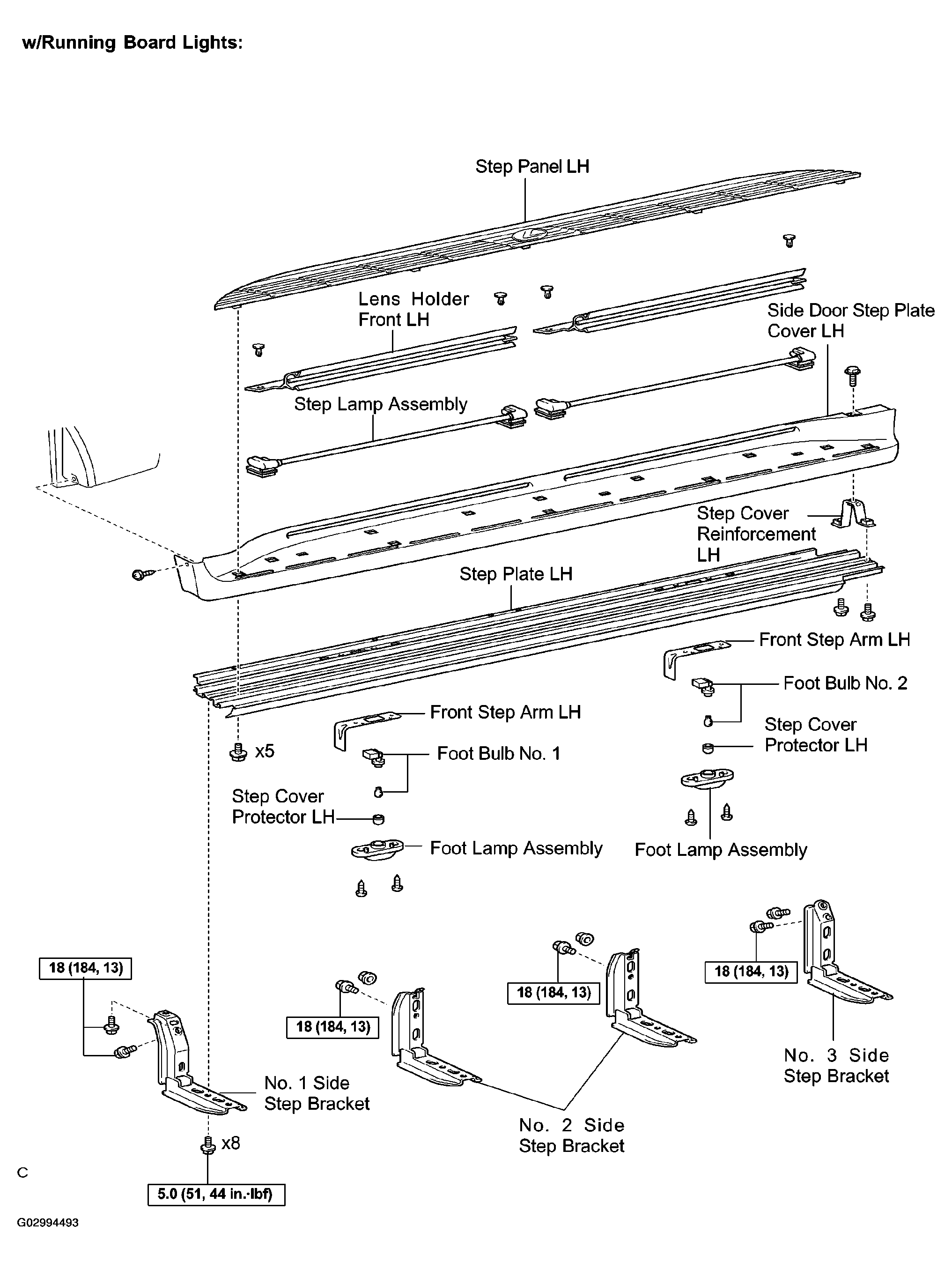

Fig 2: Identifying Side Step And Components (2 Of 2)
G02994493Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
