Trailer Towing: Inspection

Remove the towing converter with connector being connected and inspect the wire harness side connector from the back side, as shown in the table.

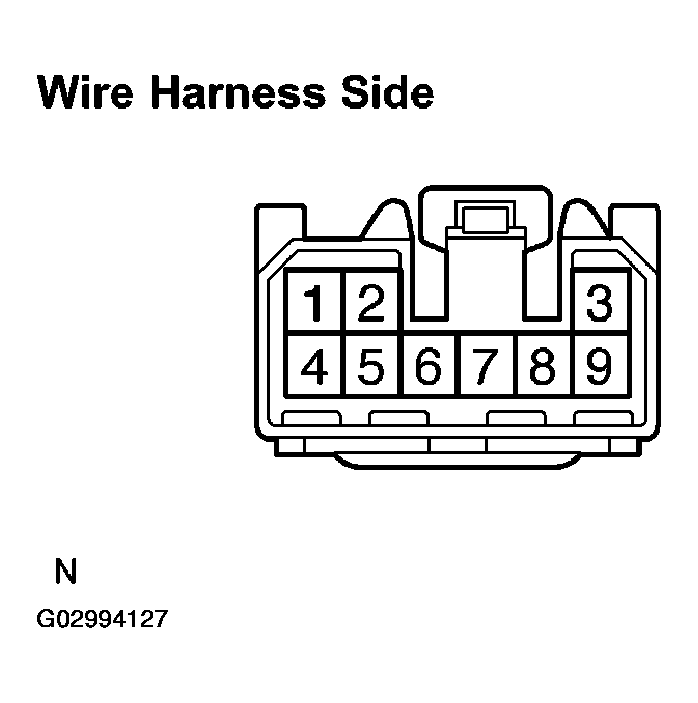

Fig 1: Identifying Towing Converter Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

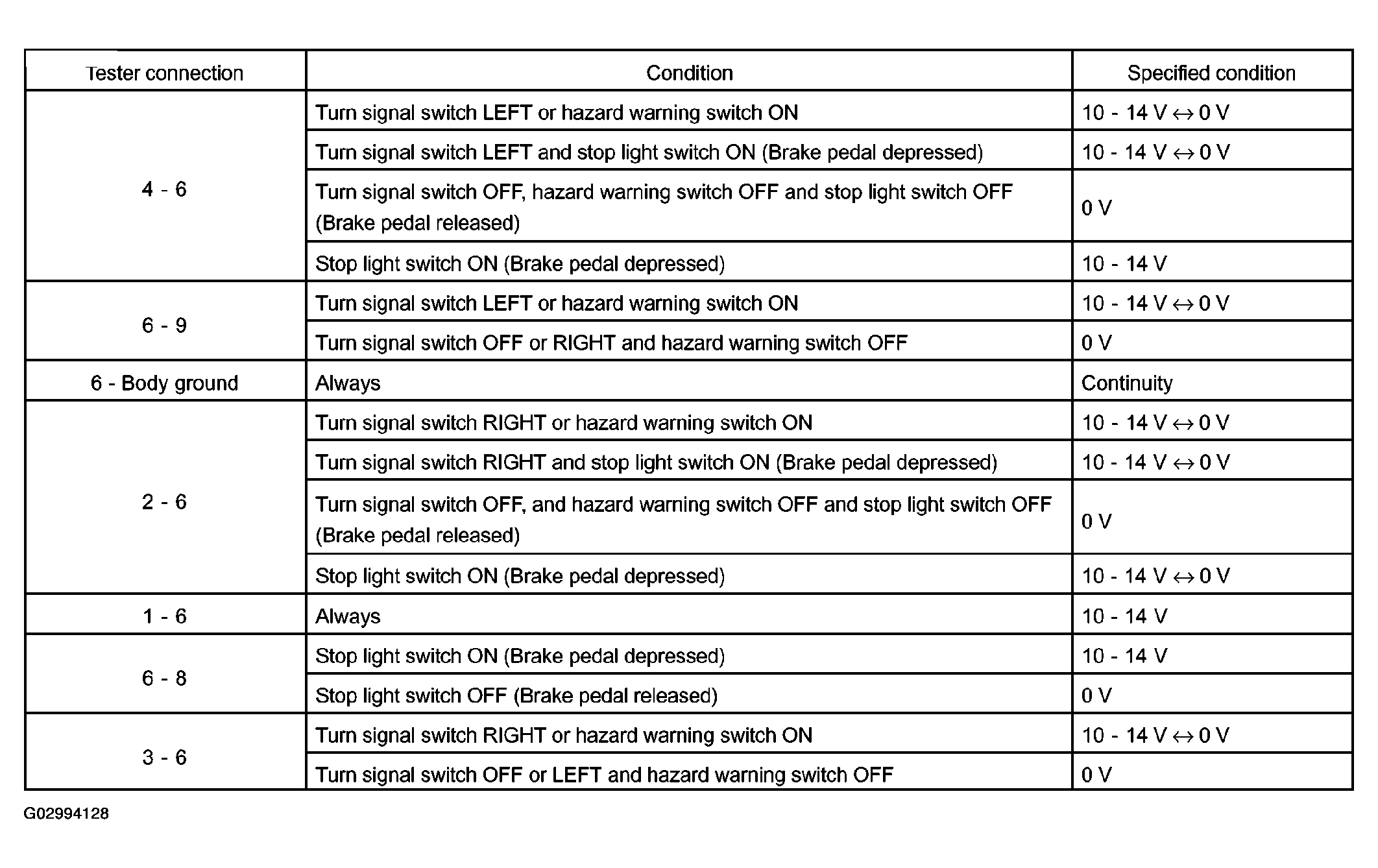

Fig 2: Tester Connection Specified Condition

If the circuit is not as specified, inspect the circuit connected to other parts.
