Knock Sensor: Components

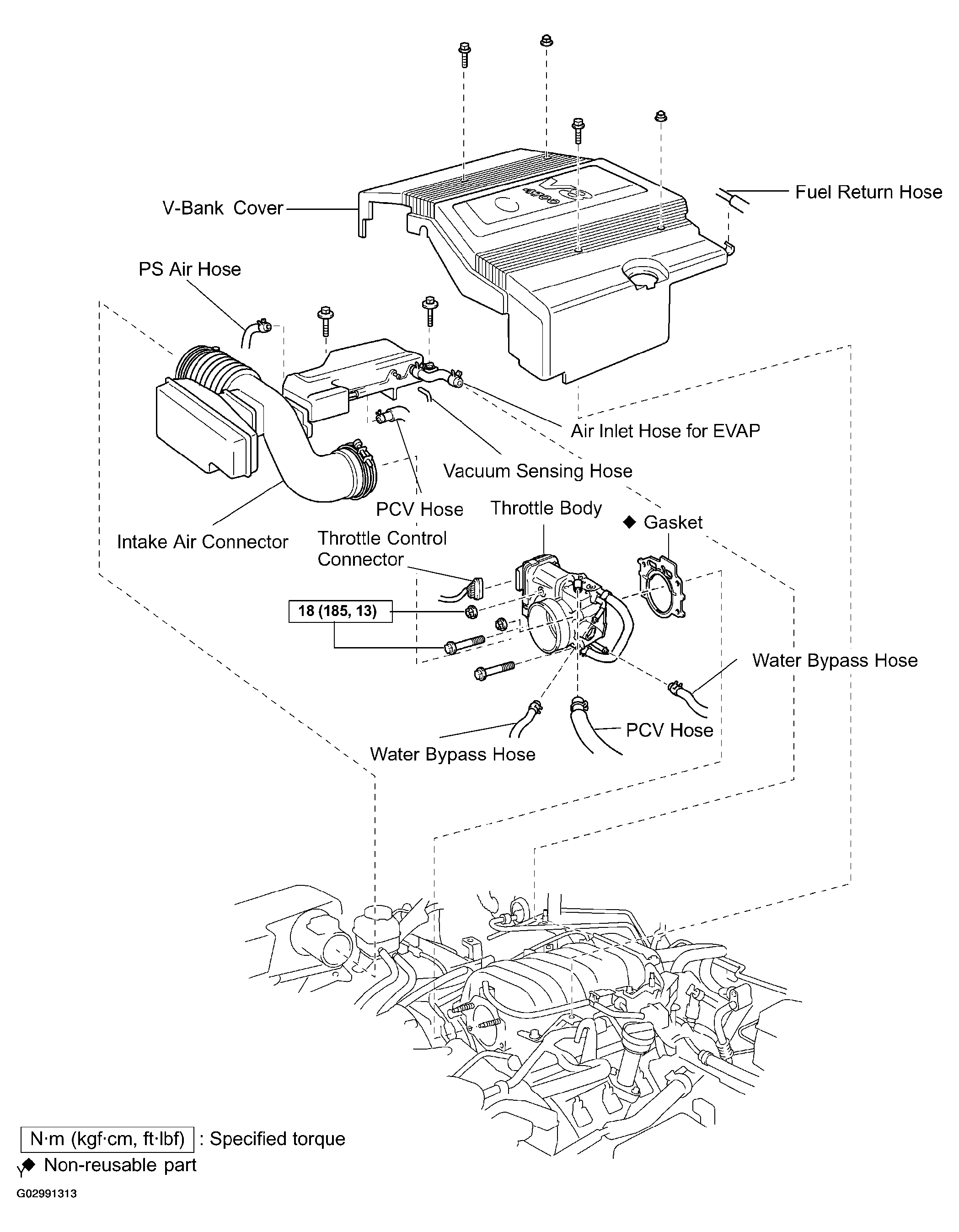

Fig 1: Exploded View Of Knock Sensor Components (1 Of 2)
G02991313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

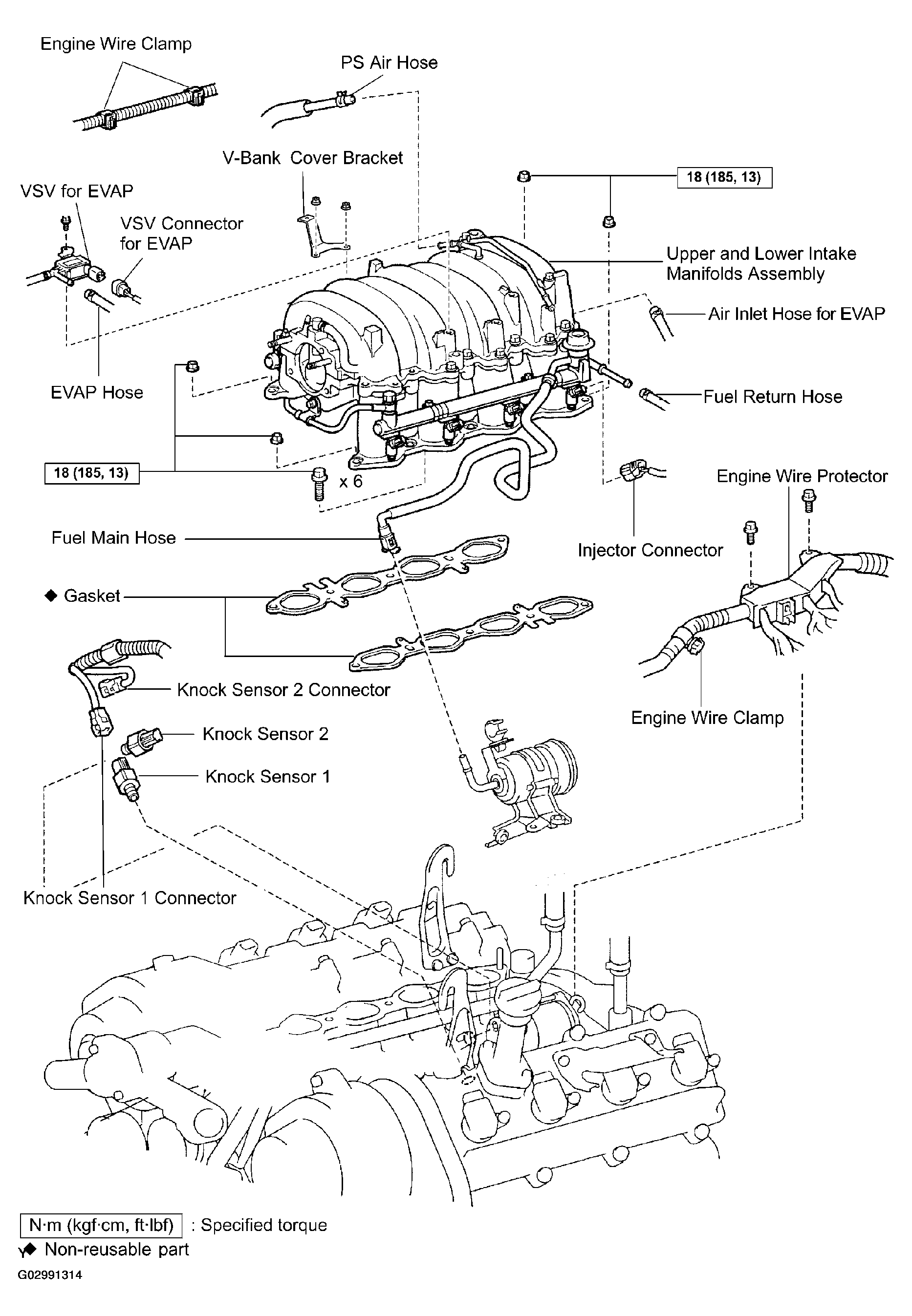

Fig 2: Exploded View Of Knock Sensor Components (2 Of 2)
G02991314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
