Seat Belt: Components

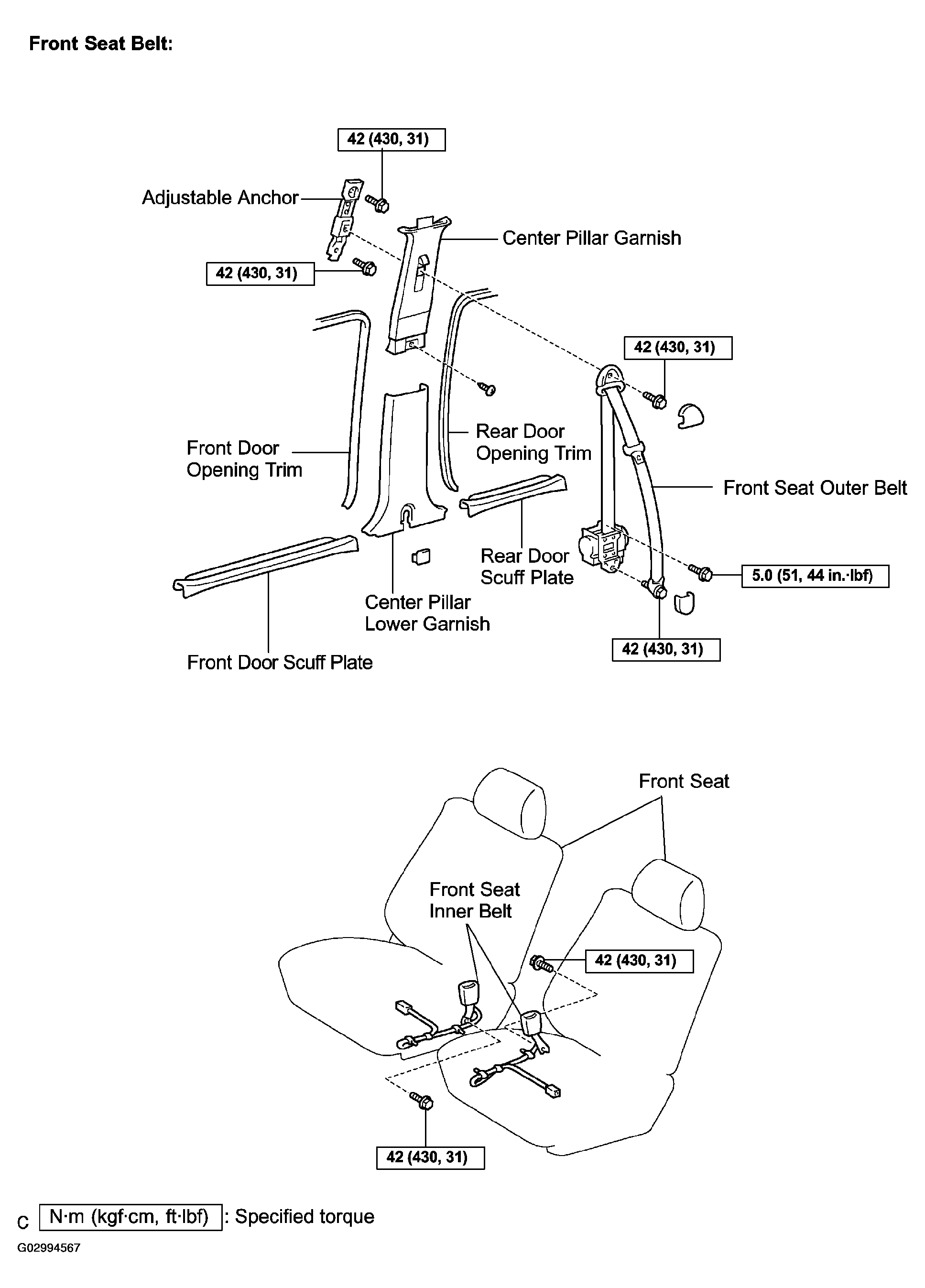

Fig 1: Identifying Seat Belt And Component (1 Of 2)
G02994567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

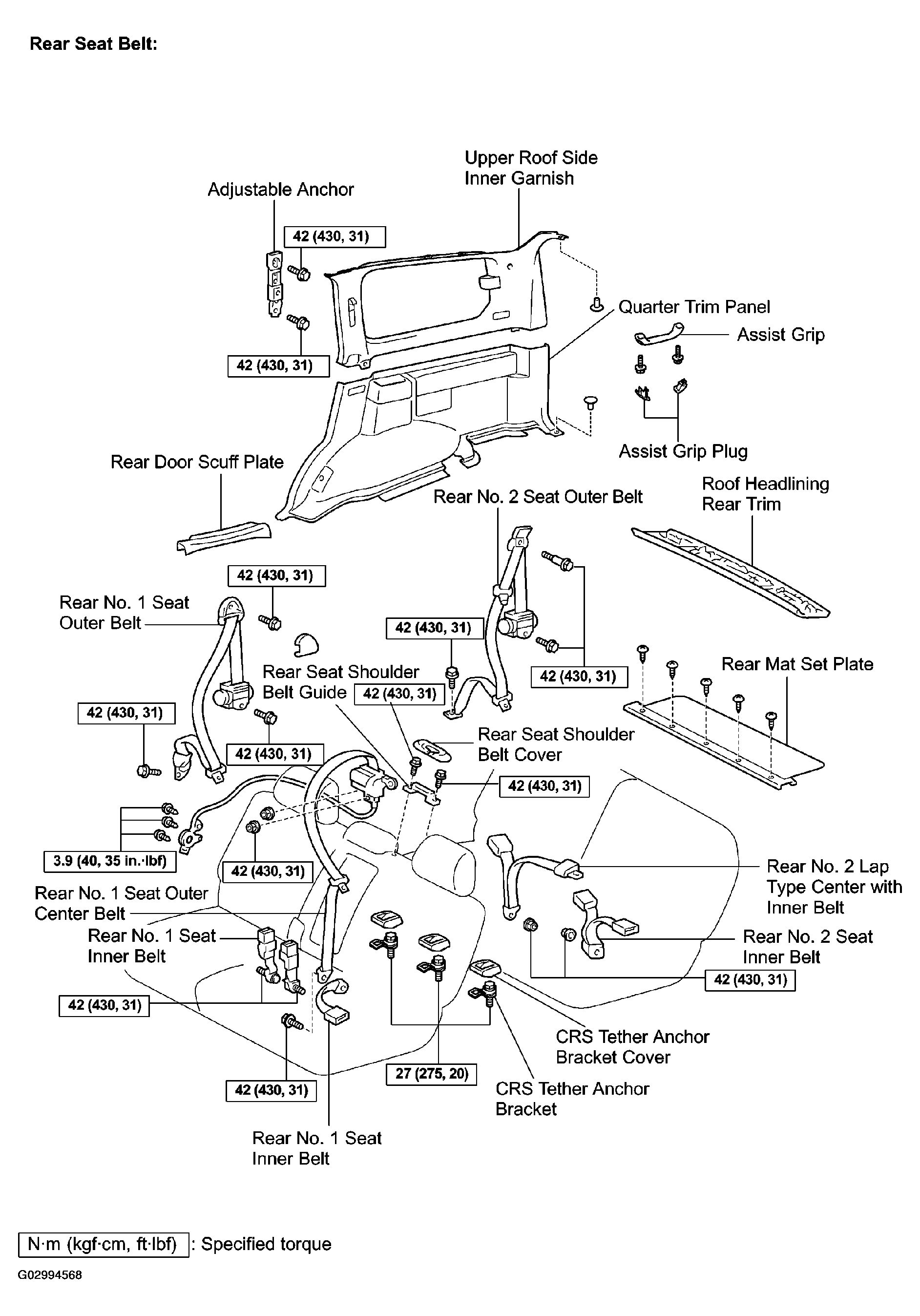

Fig 2: Identifying Seat Belt And Component (2 Of 2)
G02994568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
