Control Valve Assembly: Removal

Using SST, disconnect the 5 AHC fluid lines from the control valve assembly.

SST 09023-00101

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

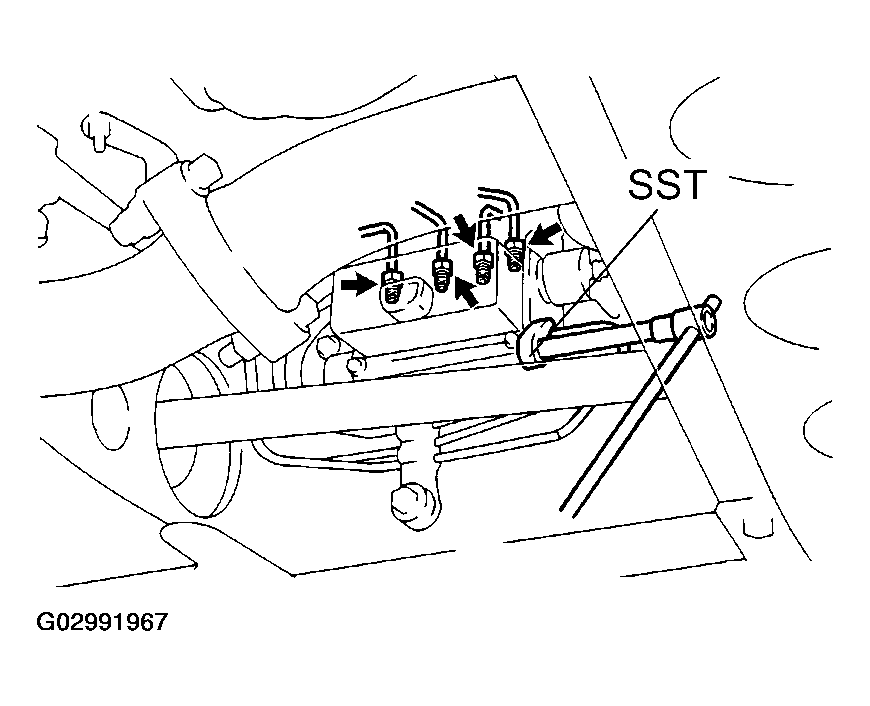

Fig 1: Disconnecting AHC Fluid Lines Using SST

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 nuts and control valve assembly.

   Torque: 5.5 N.m (55 kgf.cm, 48 in.lbf)

2. Remove the 3 holders, cushions and cushion bolts from the control valve assembly.

   Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)

3. Remove the 4 bolts and cover.

   Torque: 4.4 N.m (45 kgf.cm, 38 in.lbf)

4. Remove the gasket.

HINT:

At the time of installation, replace the used gasket with a new one.
