Height Control Accumulator: Components

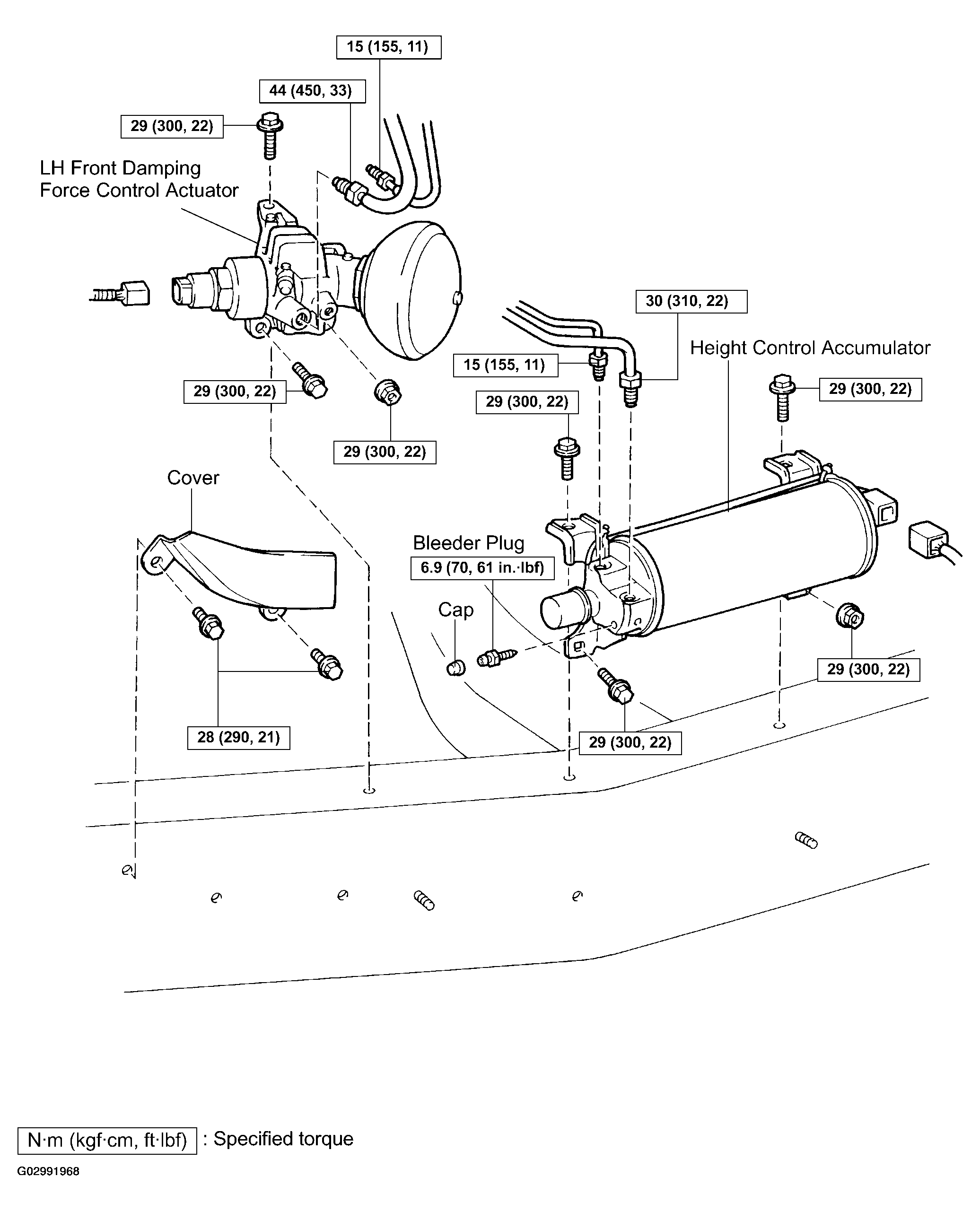

Fig 1: Exploded View Of Height Control Accumulator With Torque Specifications
G02991968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
