Height Control Sensor: Removal

REMOVE FRONT HEIGHT CONTROL SENSOR
1. Remove the front wheel.
  Torque: 131 N.m (1,340 kgf.cm, 97 ft.lbf)
2. Disconnect the connector.
3. Remove the front height control sensor.
  1. Place matchmarks on the height control sensor link and front upper suspension arm.

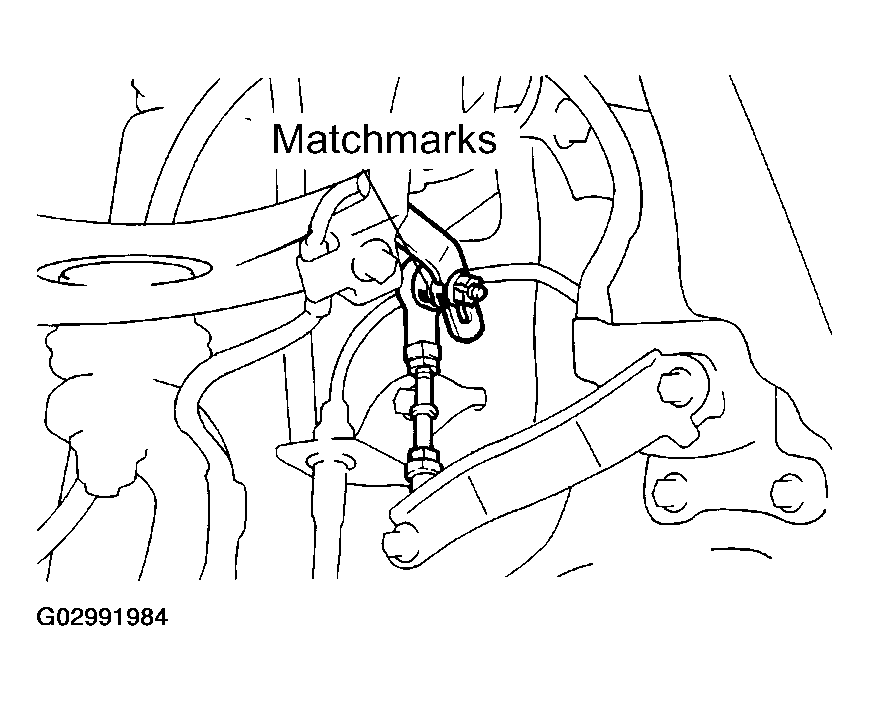

    Fig 1: Placing Matchmarks On Height Control Sensor Link And Front Upper Suspension Arm
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the nut and disconnect the height control sensor link.
    Torque: 5.6 N.m (57 kgf.cm, 49 in.lbf)
  3. Remove the 2 bolts and height control sensor.
    Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)
REMOVE REAR HEIGHT CONTROL SENSOR
1. Remove the rear wheel.
  Torque: 131 N.m (1,340 kgf.cm, 97 ft.lbf)
2. Disconnect the connector.
3. Remove the rear height control sensor.
  1. Place matchmarks on the height control sensor link and rear upper control arm.

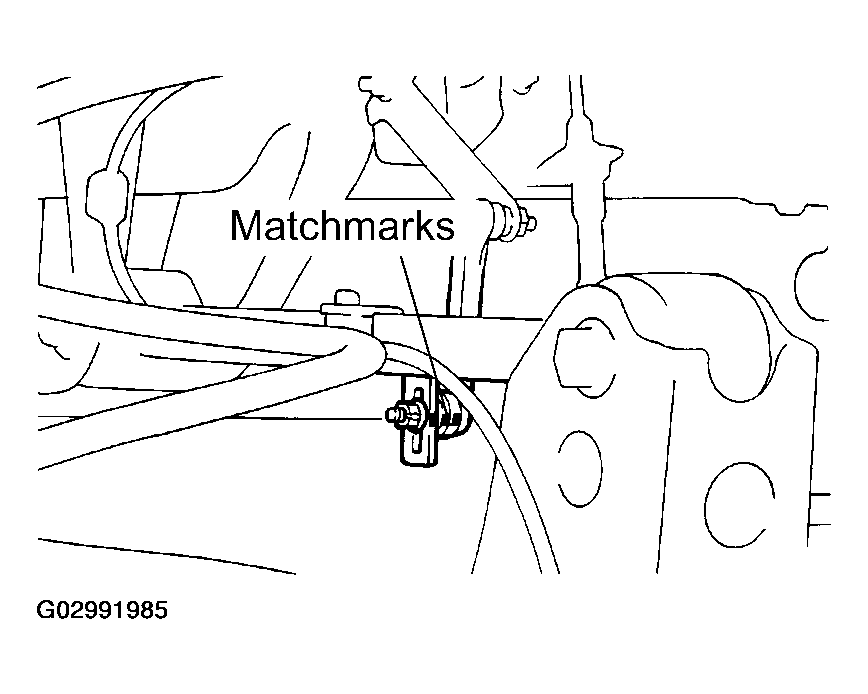

    Fig 2: Placing Matchmarks On Height Control Sensor Link And Rear Upper Control Arm
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the nut and disconnect the height control sensor link from the rear upper control arm.
    Torque: 5.6 N.m (57 kgf.cm, 49 in.lbf)
  3. Remove the 2 bolts and height control sensor.
    Torque: 28 N.m (285 kgf.cm, 21 ft.lbf)
