Rear Lateral Control Rod: Removal
- SUPPORT REAR AXLE HOUSING WITH JACK
- REMOVE LATERAL CONTROL ROD

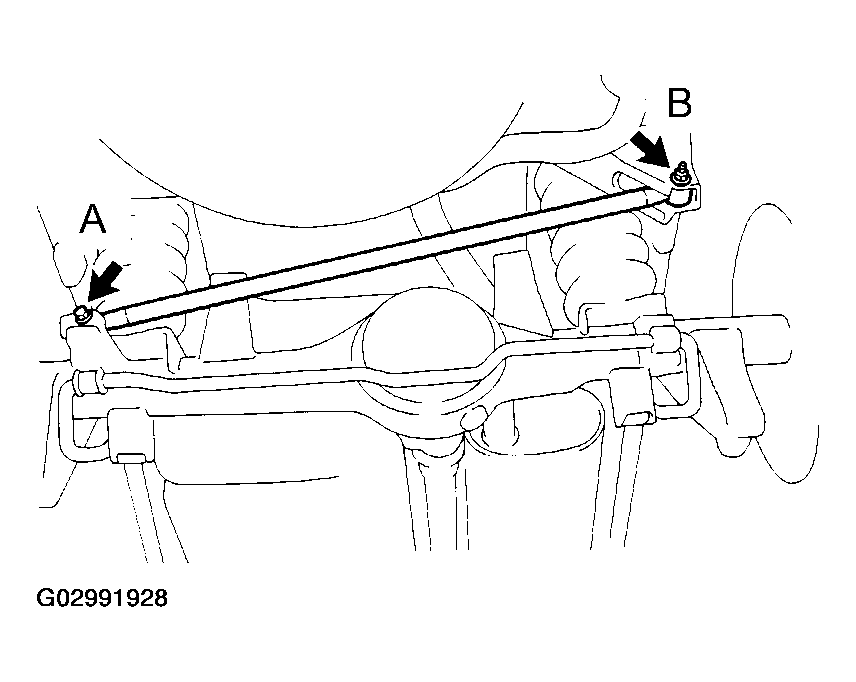

Remove the 2 bolts, nut, washer and lateral control rod.
Torque:
A: 149 N.m (1,520 kgf.cm, 110 ft.lbf)
B: 150 N.m (1,530 kgf.cm, 111 ft.lbf)
HINT:
At the time of installation, please refer to the following items.
- Replace the used nut with a new one.
- After stabilizing the suspension, torque the nut and bolt.
