Rear Upper And Lower Control Arm: Components

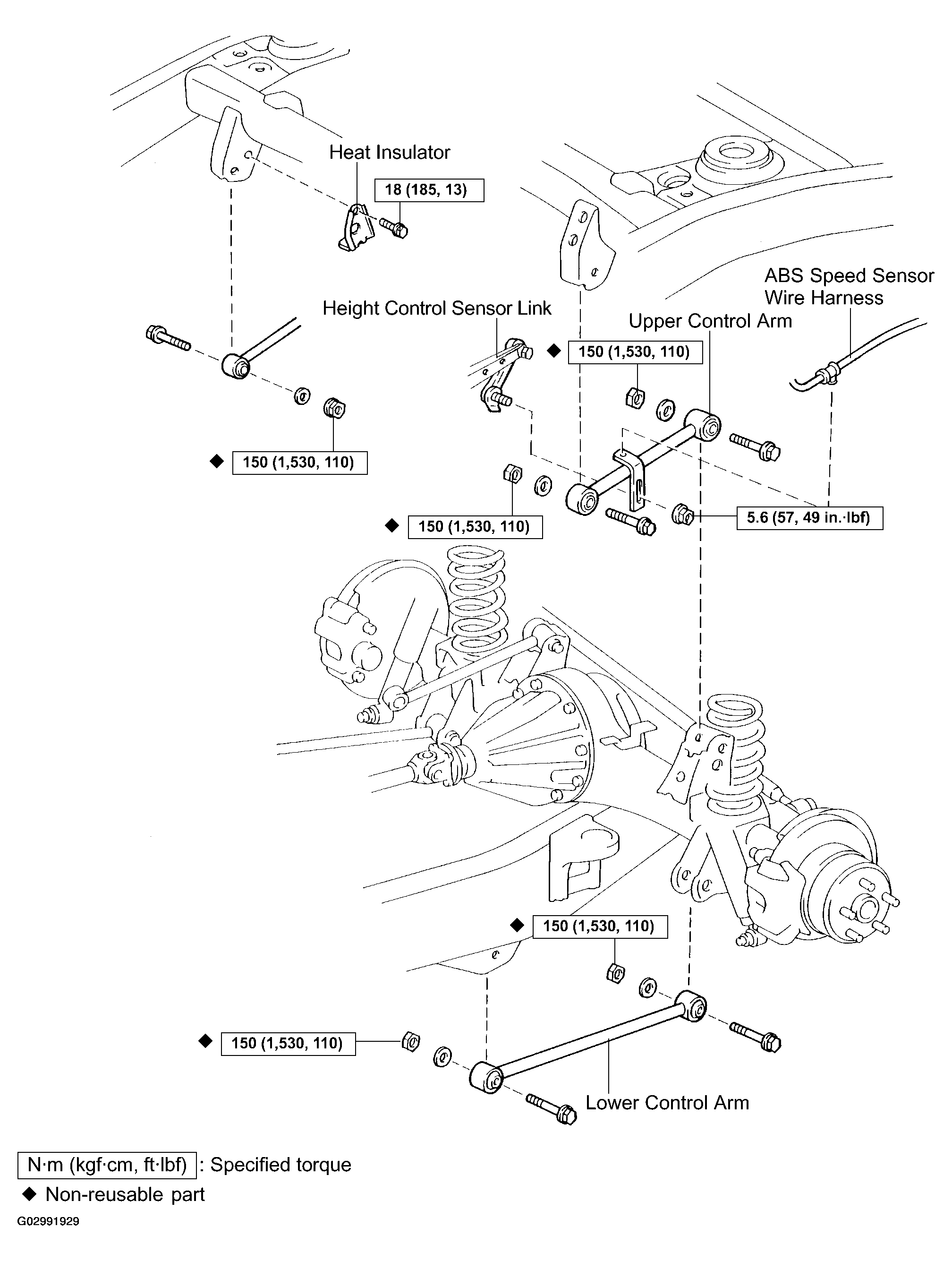

Fig 1: Exploded View Of Rear Upper And Lower Control Arm With Torque Specifications
G02991929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
