Automatic Transmission Unit: Installation

Using calipers and a straight edge, measure the distance from the installed surface of the transmission housing to the installed surface of the torque converter clutch.

Correct distance: More than 17.1 mm (0.673 in.)

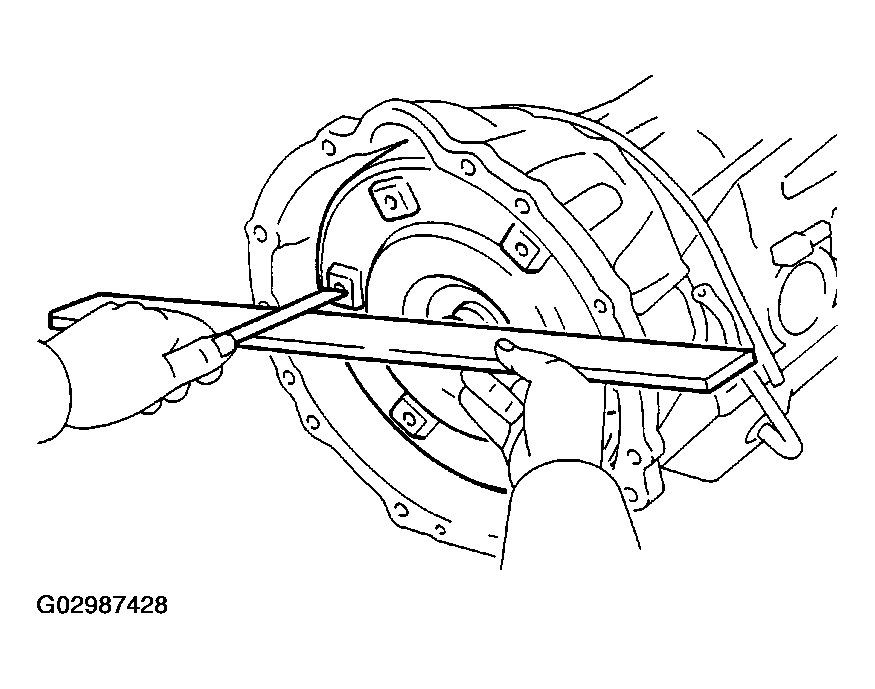

Fig 1: Checking Torque Converter Clutch Installation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Installation is in the reverse order of removal

(See REMOVAL  ).

HINT:

• Transmission control rod and park/neutral position switch (See PRE-CHECK )
• ATF level (See PRE-CHECK )
• Conduct the road test of the vehicle (See PRE-CHECK )
