On-Vehicle Repair

DISCONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR

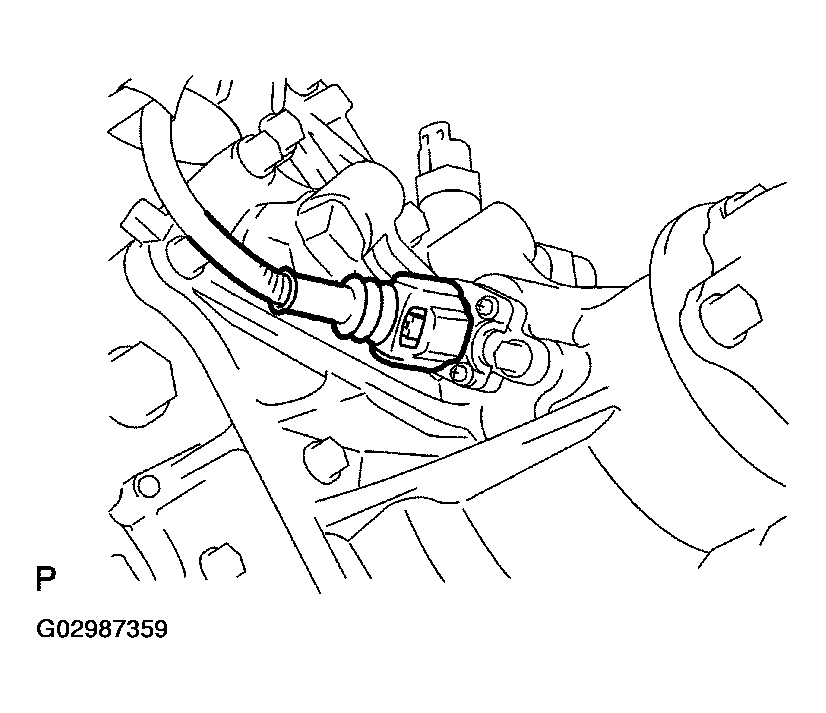

Fig 1: Locating No. 1 Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 VEHICLE SPEED SENSOR
Remove the bolt and the No. 1 vehicle speed sensor.

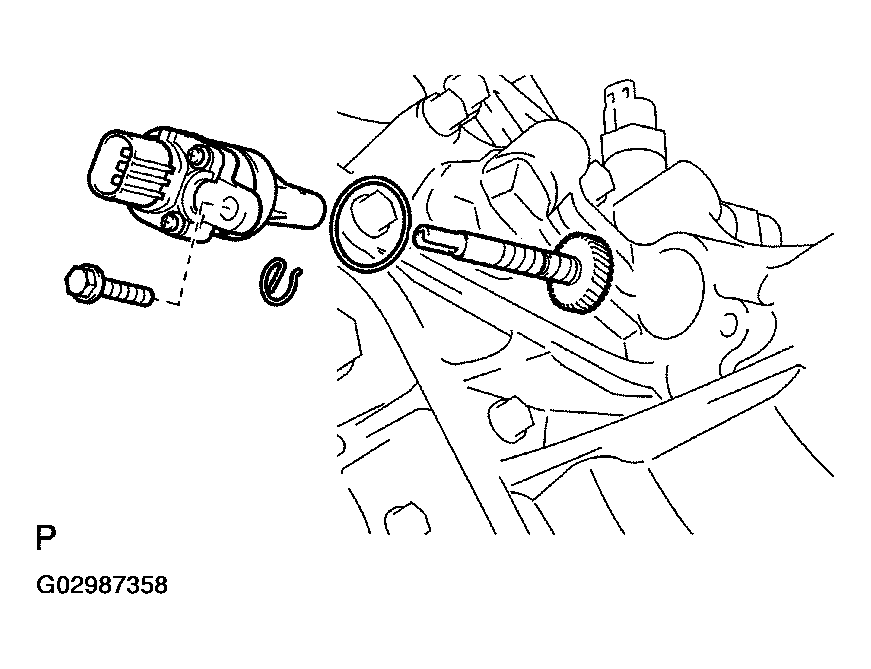

Fig 2: Removing No. 1 Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISASSEMBLE NO. 1 VEHICLE SPEED SENSOR
1. Remove the O-ring from the speedometer driven gear assembly.
2. Remove the clip and the speedometer driven gear from the speedometer driven gear sleeve.
ASSEMBLE NO. 1 VEHICLE SPEED SENSOR
1. Install the speedometer driven gear and the clip to the speedometer driven gear sleeve.
2. Coat a new O-ring with ATF.
3. Install the O-ring to the speedometer driven gear assembly.
INSTALL NO. 1 VEHICLE SPEED SENSOR
Install the No. 1 vehicle speed sensor with the bolt.

Torque: 16 N.m (160 kgf.cm, 12 ft.lbf)
CONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR

Fig 3: Locating No. 1 Vehicle Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT SPEED SENSOR NT AND SP2 CONNECTORS
REMOVE SPEED SENSOR NT AND SP2
1. Remove the 2 bolts, speed sensor NT and SP2.

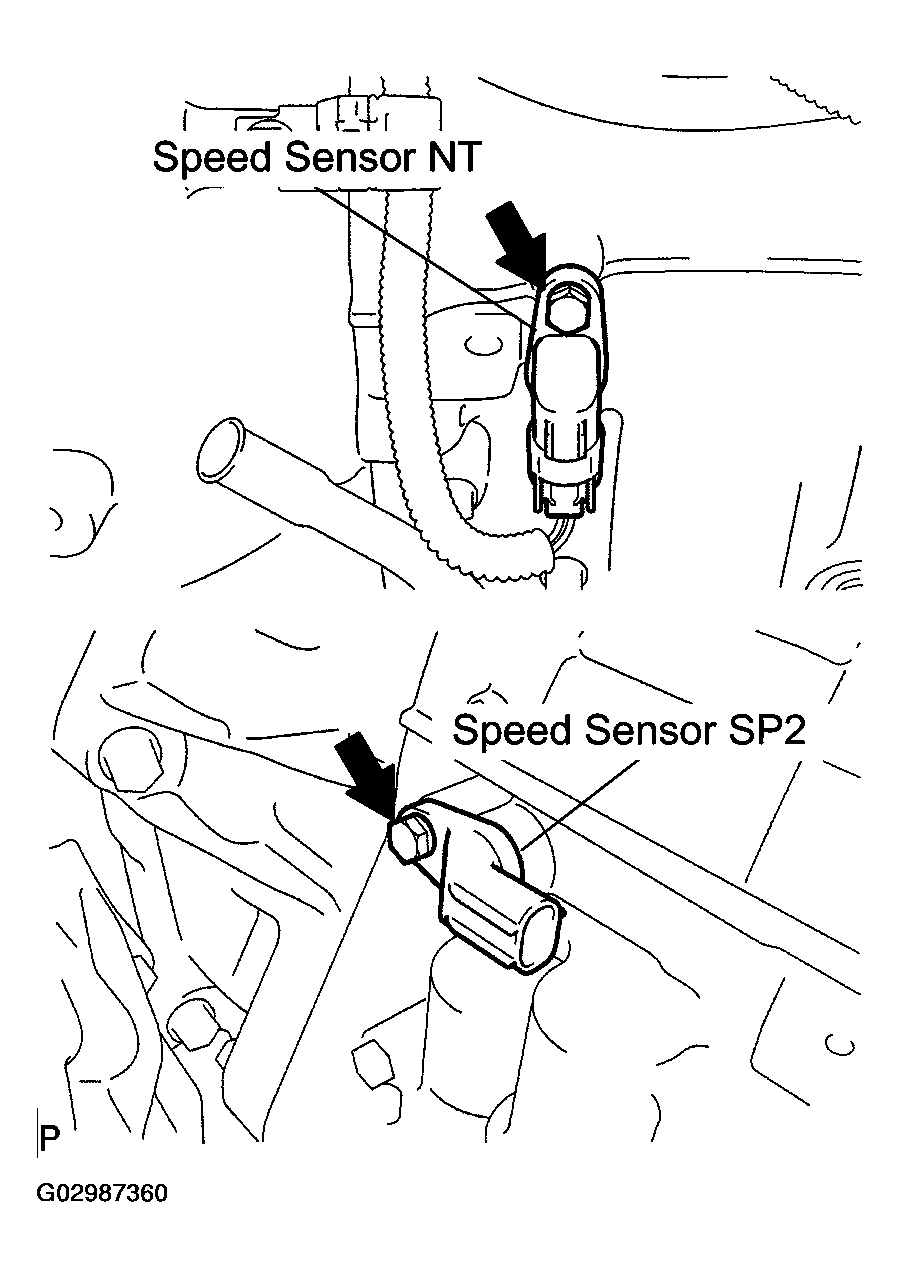

  Fig 4: Locating Speed Sensors NT And SP2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove 2 O-rings from the speed sensor NT and SP2.

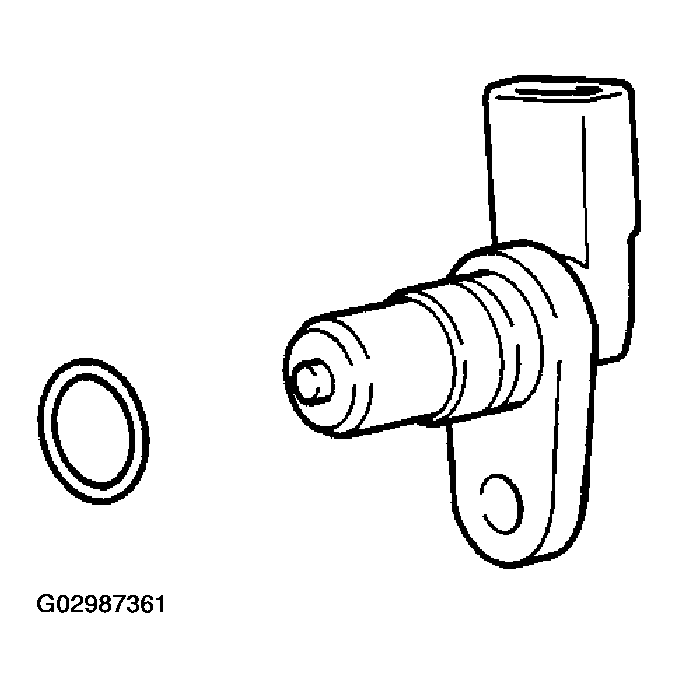

Fig 5: Removing O-Rings From Speed Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SPEED SENSOR NT AND SP2
1. Coat 2 new O-rings with ATF and install them to the speed sensor NT and SP2.
2. Install the speed sensor NT and SP2 with 2 bolts.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
Fig 6: Installing Speed Sensor NT And SP2 With 2 Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT SPEED SENSOR NT AND SP2 CONNECTORS
