Motor Shift Control System: Location

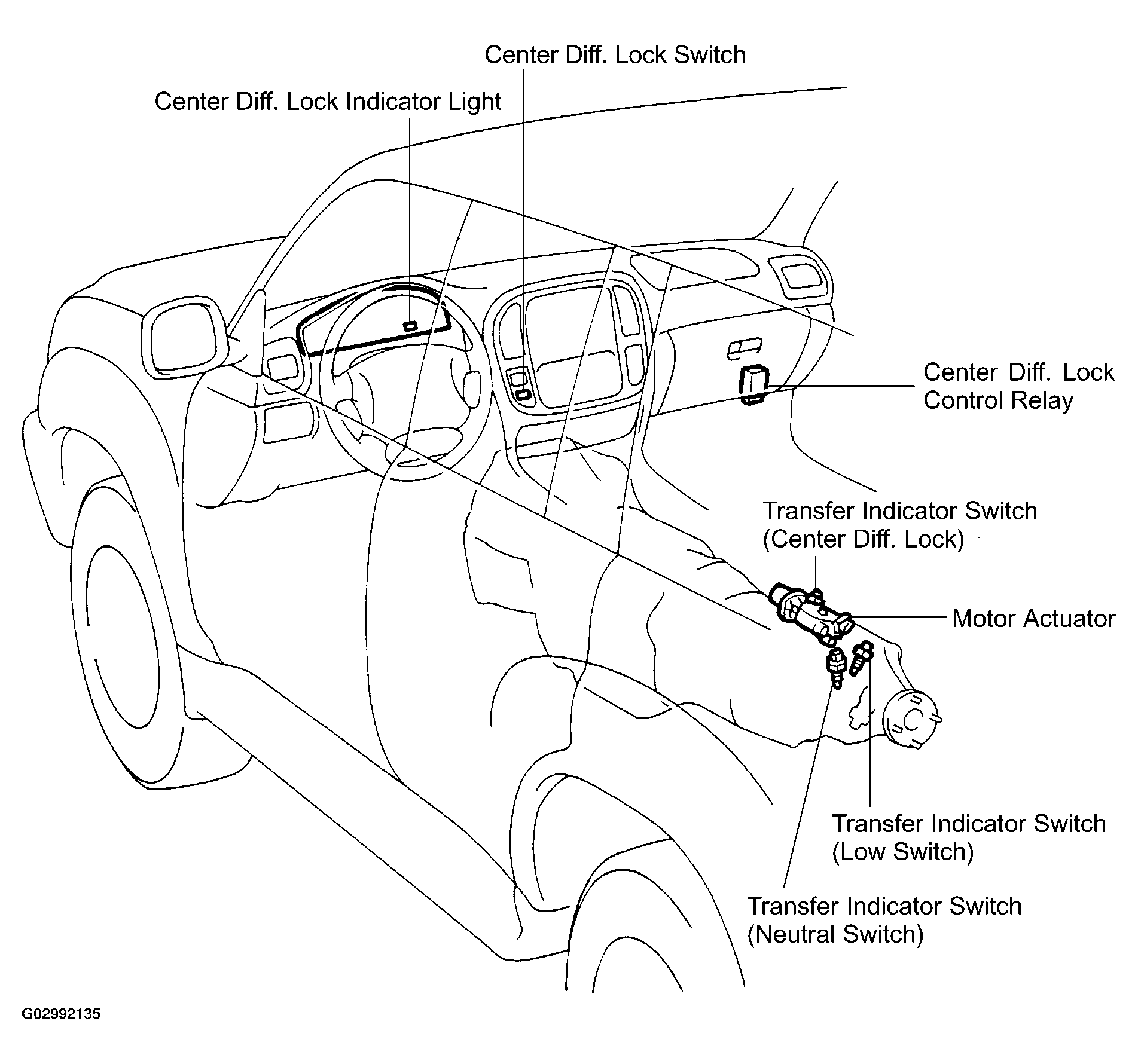

Fig 1: Identifying Components Motor Shift Control System
G02992135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
