Rear Extension Housing: Components

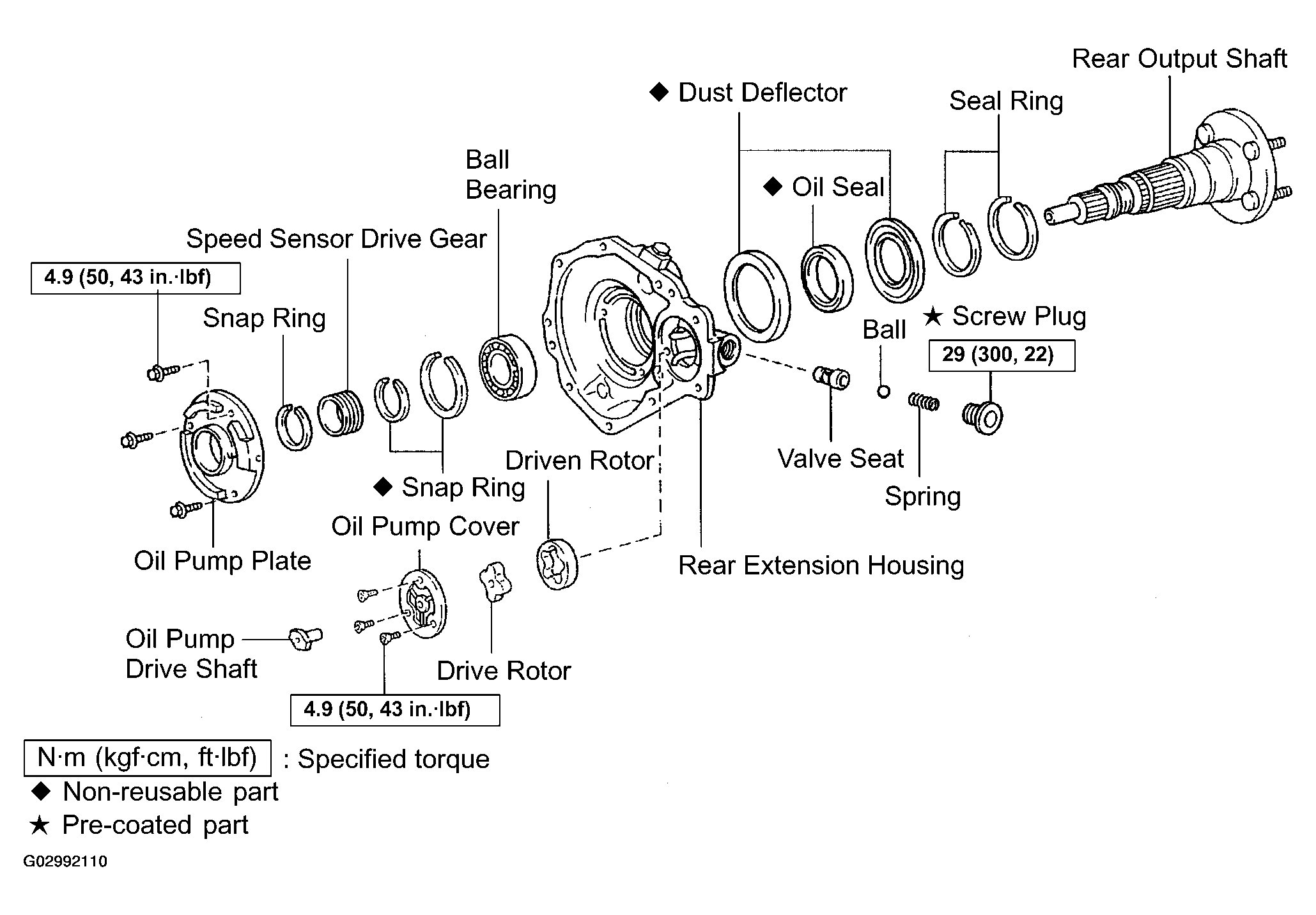

Fig 1: Replacement Components Rear Extension Housing With Torque Specifications
G02992110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
