Navigation Module: Service and Repair

NAVIGATION ECU

REPLACEMENT

1. REMOVE DECK BOARD SUB-ASSEMBLY
2. REMOVE TONNEAU COVER ASSEMBLY
3. REMOVE DECK FLOOR BOX FRONT
4. REMOVE DECK FLOOR BOX REAR
5. REMOVE DECK BOARD SUB-ASSEMBLY NO.2
6. REMOVE DECK BOARD SUB-ASSEMBLY NO.3
7. REMOVE DECK SIDE TRIM BOX RH

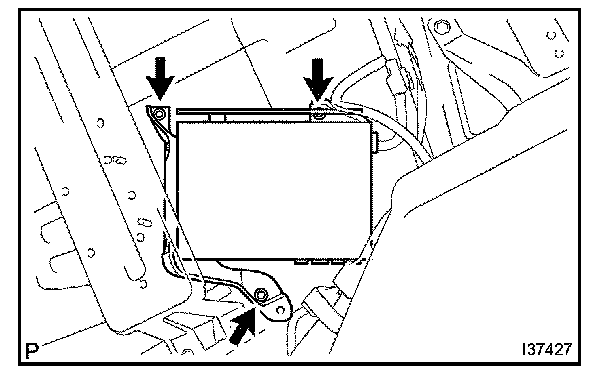

8. REMOVE NAVIGATION ECU W/BRACKET
a. Disconnect the connector.
b. Disconnect the wire harness clamp.
c. Remove the 3 nuts and the navigation ECU w/ bracket.

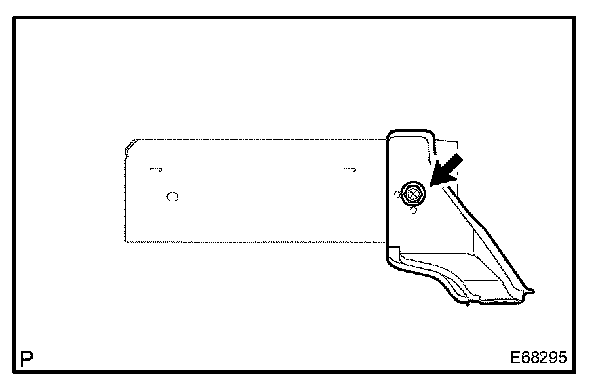

9. REMOVE DISC PLAYER BRACKET
a. Remove the screw and the disc player bracket.

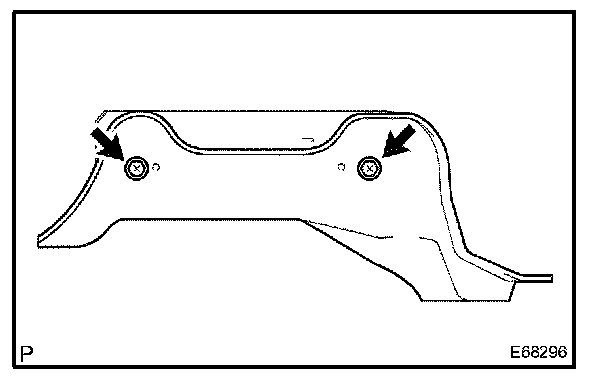

10. REMOVE DISC PLAYER BRACKET NO.2
a. Remove the 2 screws and the disc player bracket No.2.

11. REMOVE NAVIGATION ECU
