Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

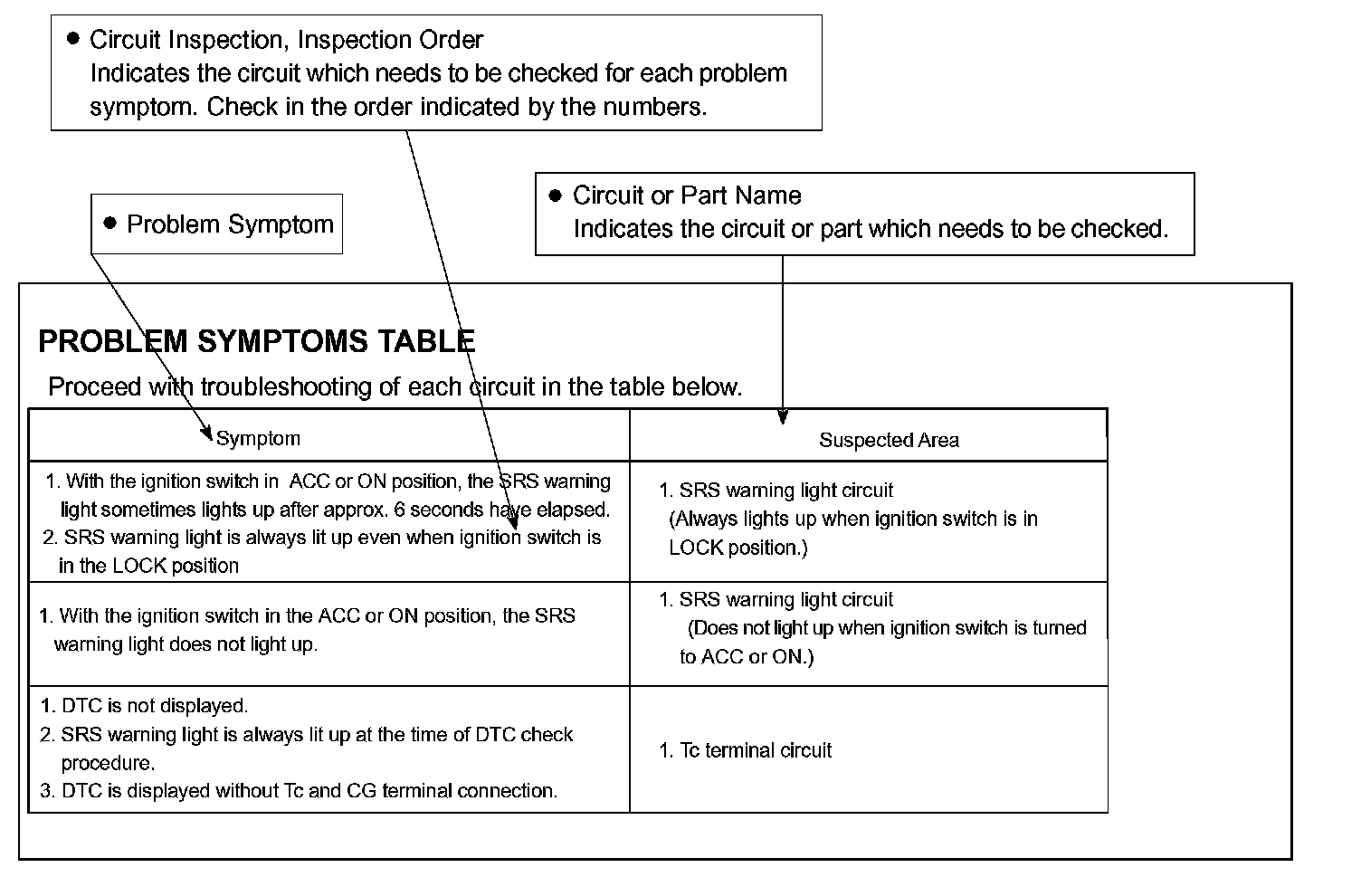

Problem Symptoms Table:

The suspected circuits or parts for each problem symptom are shown in the table. Use this table to troubleshoot the problem when a Normal code is displayed in the diagnostic trouble code chart but the problem is still occurring. Numbers in the table indicate the inspection order in which the circuits or parts should be checked.

HINT: When the problem is not detected by the diagnostic system even though the problem symptom is present, it may be that the problem is occurring outside the detection range of the diagnostic system.
