Laser Sensor: Replacement

  1. REMOVE ENGINE UNDER COVER NO. 1 (See  REPLACEMENT  )
  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY RH (See  REPLACEMENT  )
  3. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH (See  REPLACEMENT  )
  4. REMOVE FRONT BUMPER COVER (See  REPLACEMENT  )
  5. REMOVE FRONT BUMPER ENERGY ABSORBER (See  REPLACEMENT  )
  6. REMOVE FRONT BUMPER REINFORCEMENT (See  REPLACEMENT  )
  7. REMOVE LASER SENSOR
    1. Disconnect the connector and remove the laser sensor.

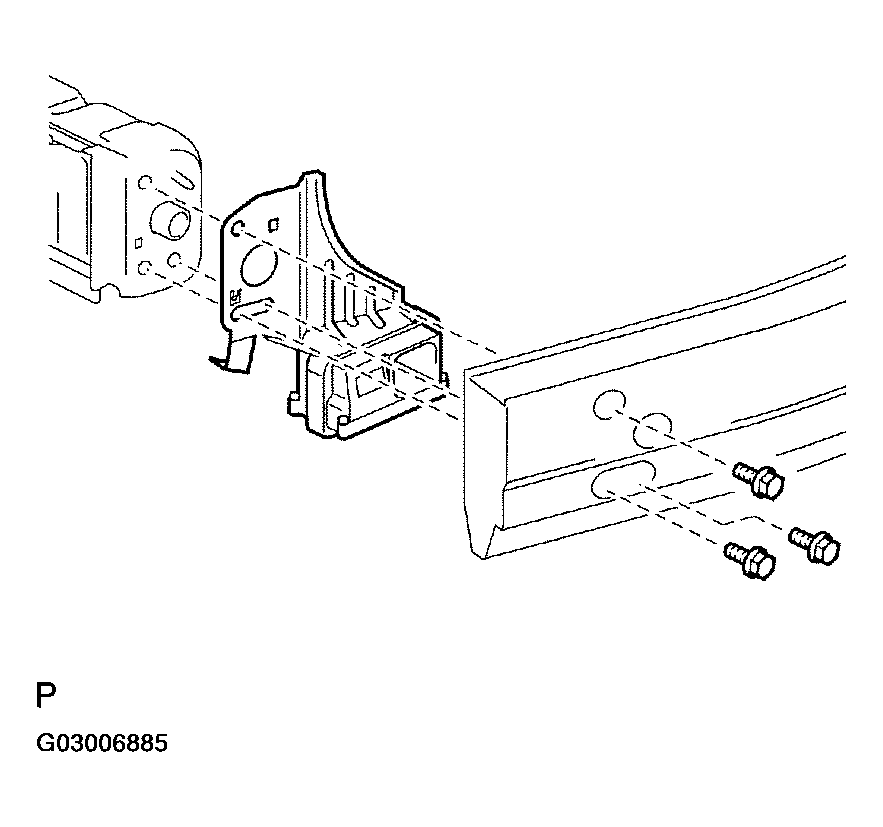

      Fig 1: Removing Laser Sensor
      G03006885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL LASER SENSOR
    NOTE: Do not install the laser sensor if it has been damaged or received some sort of shock.
  9. INSTALL FRONT BUMPER REINFORCEMENT (See  REPLACEMENT  )
  10. ADJUST FOG LIGHT AIM (See  ADJUSTMENT  )
  11. CHECK FOG LIGHT AIM (See  ADJUSTMENT  )
  12. ADJUST LASER SENSOR (See  ADJUSTMENT  )

    SST 09870-60000 (09870-60010, 09870-60020)
