Inspection Procedure

INSPECT CRUISE CONTROL MAIN SWITCH

Disconnect the cruise control main switch connector.

Measure the resistance between terminals 1 and 3 of the cruise control main switch connector when the cruise control main switch is operated.

Standard:

CRUISE CONTROL MAIN SWITCH TERMINALS RESISTANCE

Switch position	Specified value
Neutral	10 kΩ or higher
+/RES	210 to 270 Ω
-/SET	560 to 700 Ω
CANCEL	1,380 to 1,700 Ω

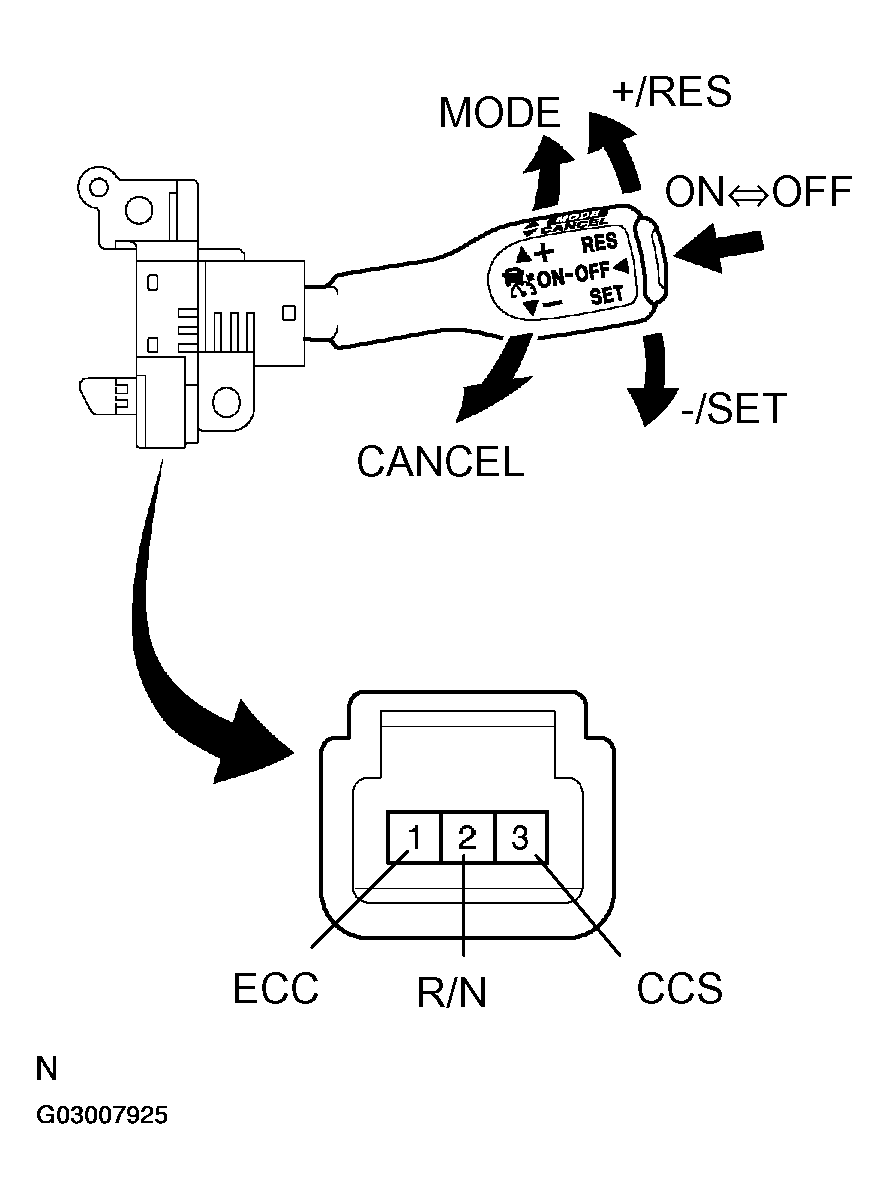

Fig 1: Identifying Cruise Control Main Switch Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Measure the resistance between terminals 1 and 3 of the cruise control main switch connector when the main switch is held on and off.

Standard:

CRUISE CONTROL MAIN SWITCH TERMINALS RESISTANCE

Switch position	Tester connection	Specified value
OFF	1 - 3	10 kΩ or higher
ON	1 - 3	Below 1 Ω

Measure the resistance between terminals 1 and 2 of the cruise control main switch connector when the mode switch is operated.

Standard:

CRUISE CONTROL MAIN SWITCH TERMINALS RESISTANCE

Switch position	Tester connection	Specified value
MODE	1 - 2	Below 1 Ω

NG: REPLACE CRUISE CONTROL MAIN SWITCH (See CRUISE CONTROL MAIN SWITCH )
OK: GO TO NEXT STEP.

CHECK WIRE HARNESS AND CONNECTOR (CRUISE CONTROL MAIN SWITCH-SPIRAL CABLE SUB-ASSY)

Turn the ignition switch OFF.
Disconnect the cruise control main switch connector and spiral cable connector.

Check for an open circuit in harness and connector.

Standard:

CRUISE CONTROL MAIN SWITCH AND SPIRAL CABLE CONNECTOR TERMINALS RESISTANCE

Terminal No.	Specified value
A-1 - B-2	Below 1 Ω
A-3 - B-3	Below 1 Ω
A-4 - B-1	Below 1 Ω

Connect the spiral cable connector.

Check for a short circuit in harness and connector.

Standard:

CRUISE CONTROL MAIN SWITCH CONNECTOR TERMINALS RESISTANCE

Terminal No.	Specified value
B-2 - Body ground	10 kΩ or higher
B-3 - Body ground	10 kΩ or higher

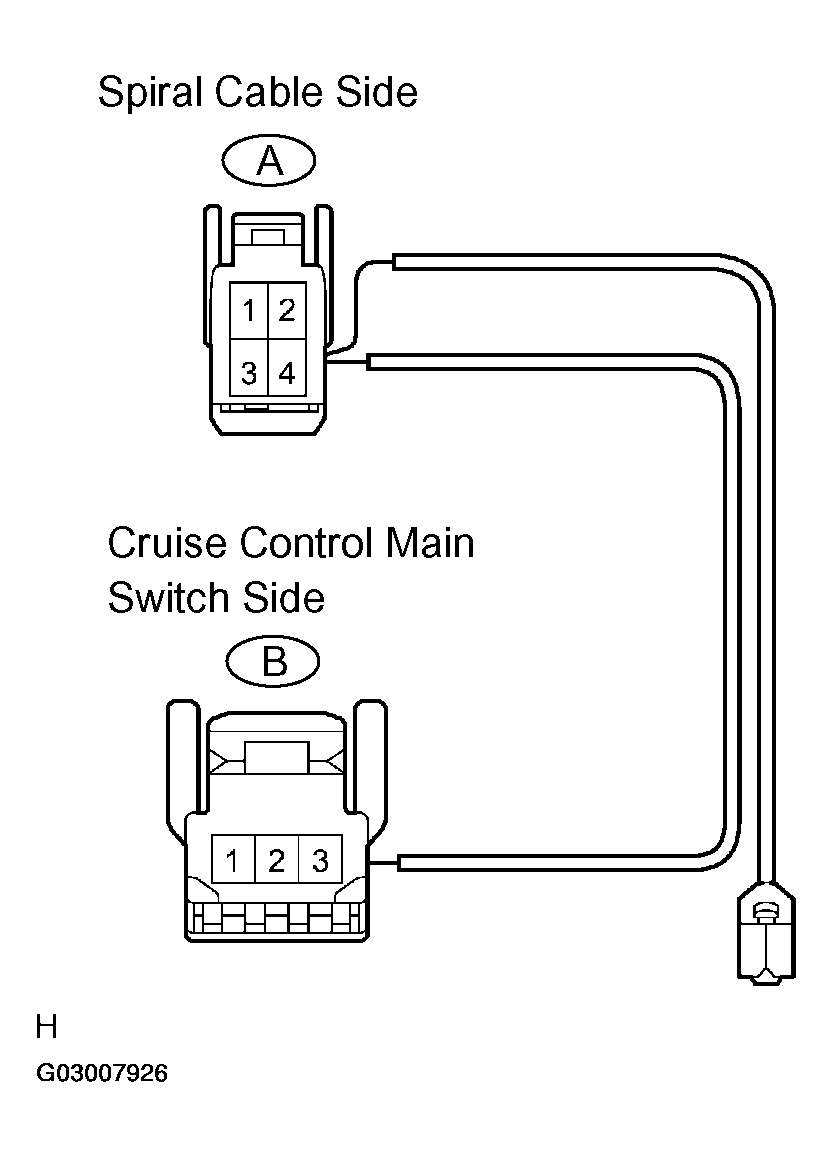

Fig 2: Checking Cruise Control Main Switch And Spiral Cable Connector Terminals For Open Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
OK: GO TO NEXT STEP.

INSPECT SPIRAL CABLE SUB-ASSY

Disconnect the spiral cable sub-assy connector.

Measure the resistance between terminals A and C13 of spiral cable sub-assy.

Standard:

SPIRAL CABLE SUB-ASSY TERMINALS RESISTANCE

Terminal No.	Specified value
A-1 - C13-7	Below 1 Ω
A-3 - C13-1	Below 1 Ω
A-4 - C13-2	Below 1 Ω

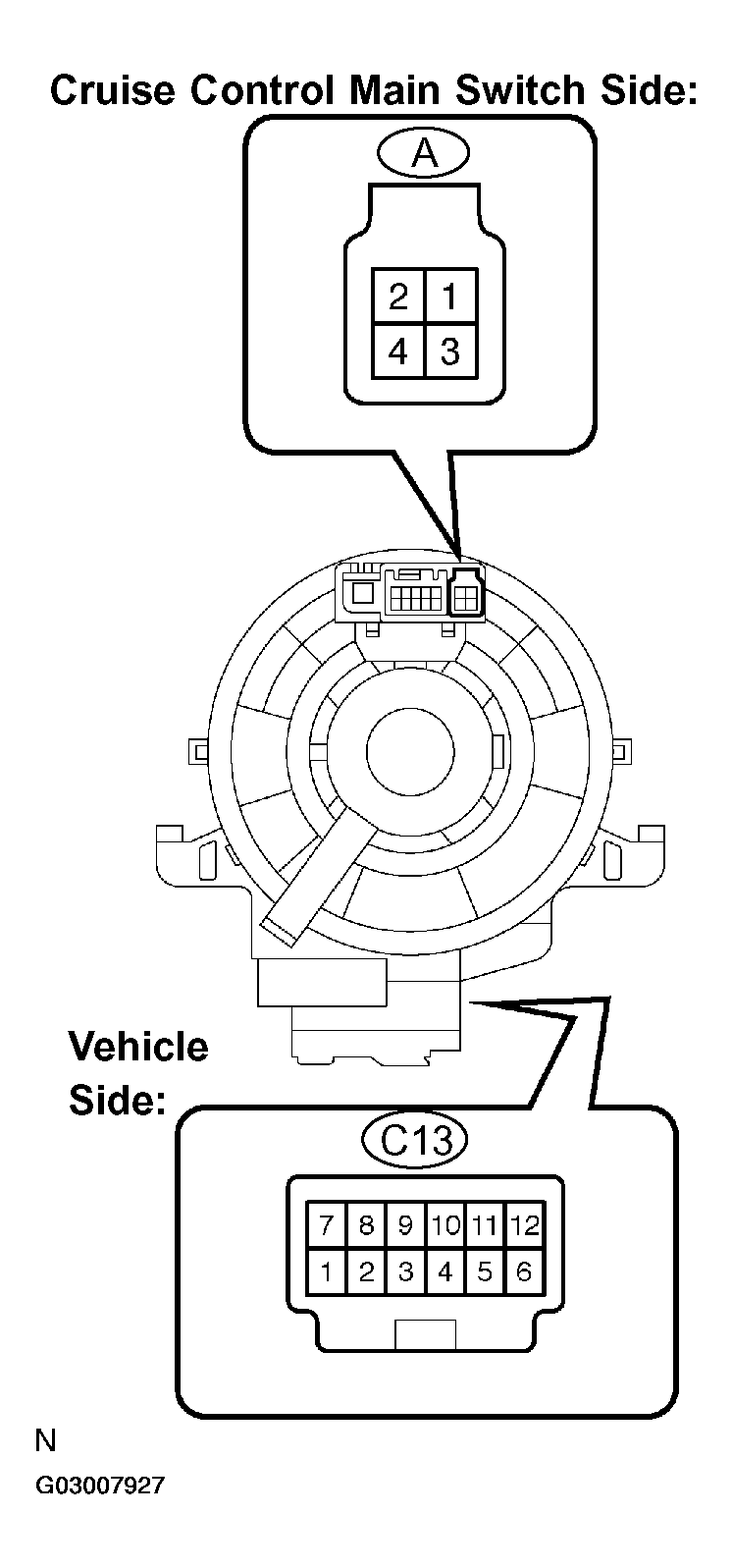

Fig 3: Identifying Spiral Cable Sub-Assy Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPIRAL CABLE SUB-ASSY
OK: GO TO NEXT STEP.

CHECK WIRE HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM)
1. Check for an open or short circuit in harness and connector between the spiral cable sub-assy and ECM (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.
CHECK WIRE HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - BODY GROUND)
1. Check for an open circuit in harness and connector between the spiral cable sub-assy and body ground (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
1. NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
2. OK: GO TO NEXT STEP.

INSPECT ECM

Remove the ECM with connector.

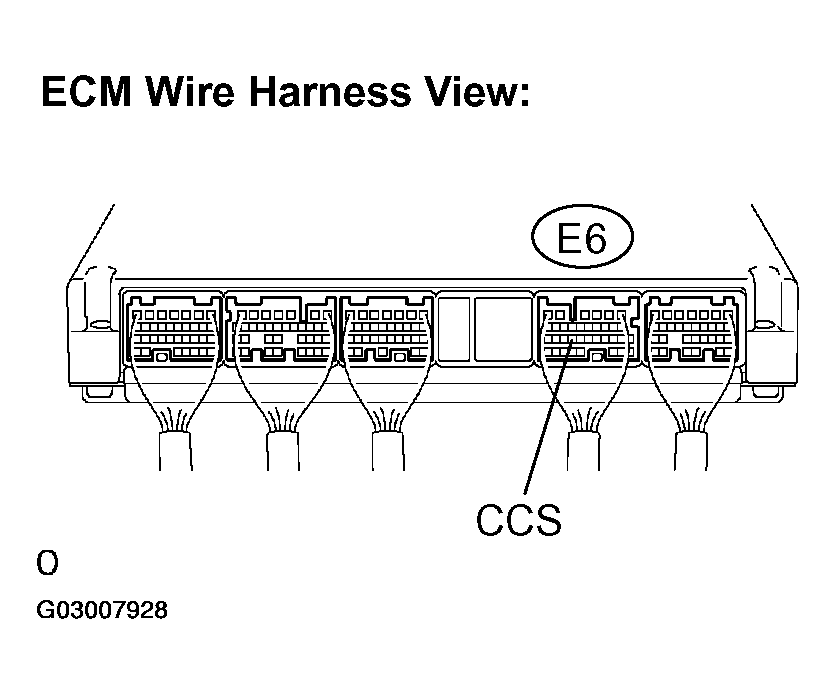

Fig 4: Identifying ECM Connector Terminal (CCS)

Turn the ignition switch ON.

Measure the voltage between terminal CCS (E6-24) of ECM and body ground, according to the cruise control main switch position as shown in the chart below.

Standard:

ECM CONNECTOR TERMINALS VOLTAGE

Switch position	Specified value
Neutral	10 to 16 V
CANCEL	6.6 to 10.1 V
-/SET	4.5 to 7.1 V
+/RES	2.3 to 4.0 V
Main switch ON	Below 1 V

Measure the voltage between terminal CCHG (E7-28) of ECM and body ground, according to the cruise control main switch position as shown in the chart below.

Standard:

ECM CONNECTOR TERMINALS VOLTAGE

Switch position	Specified value
MODE	Below 1 V
Neutral	10 to 14 V

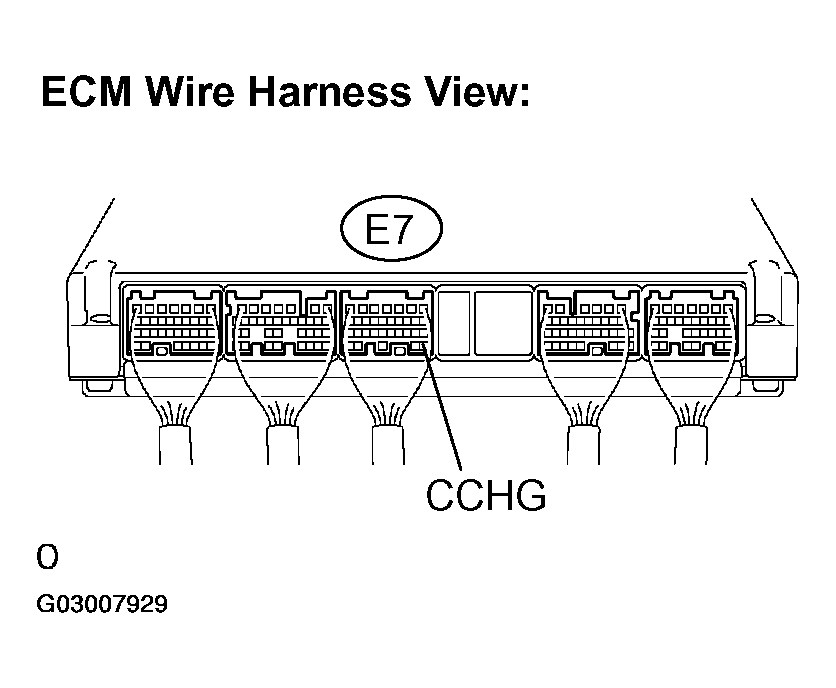

Fig 5: Identifying ECM Connector Terminal (CCHG)

NG: REPLACE ECM (See ECM (3MZ-FE) )
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE
