Dynamic Laser Cruise Control System: Location

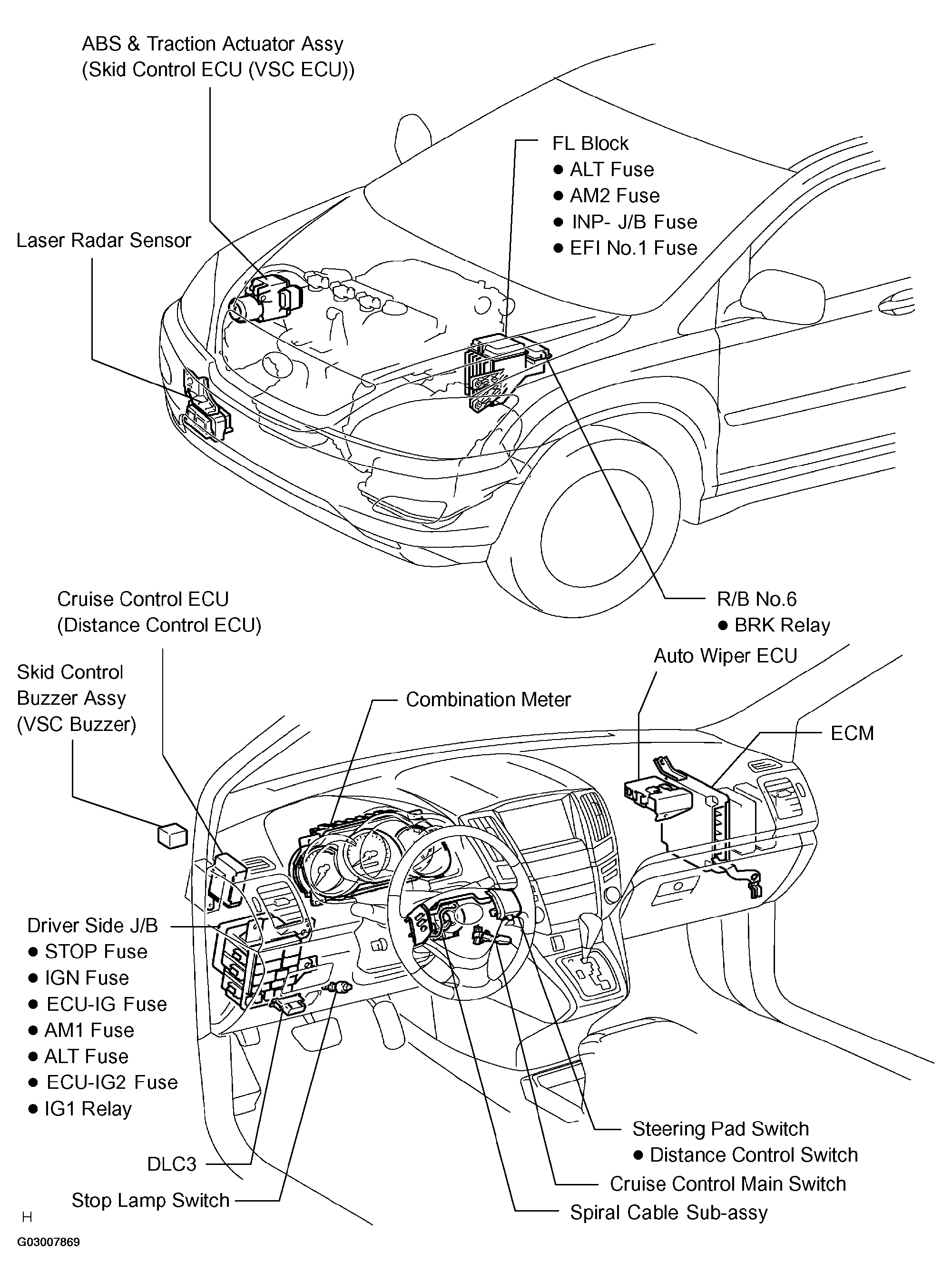

Fig 1: Identifying Cruise Control System Components Location
G03007869Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

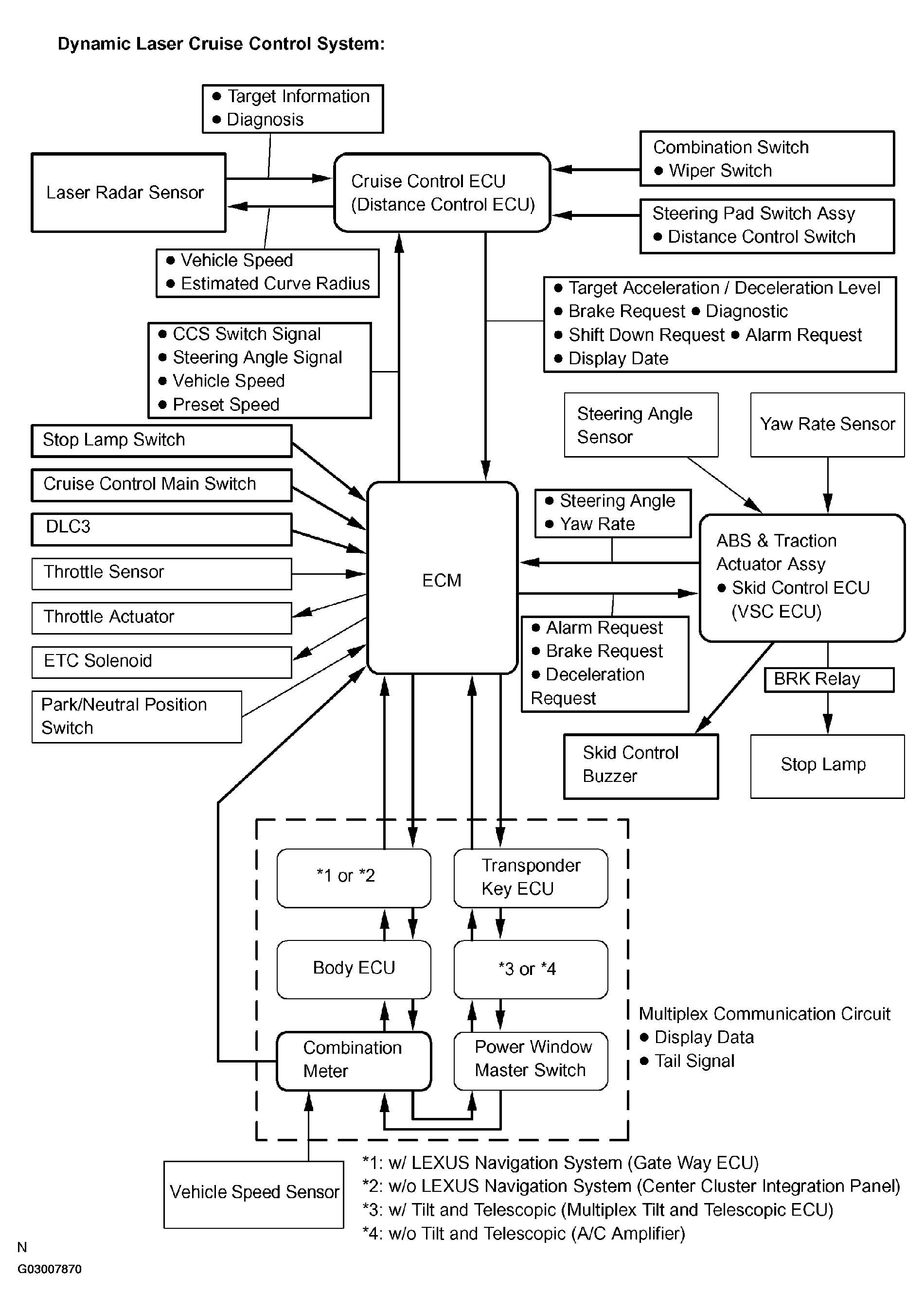

Fig 2: Dynamic Laser Cruise Control System - Line Diagram
G03007870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
