Driving Position Memory Switch Circuit: Wiring Diagram

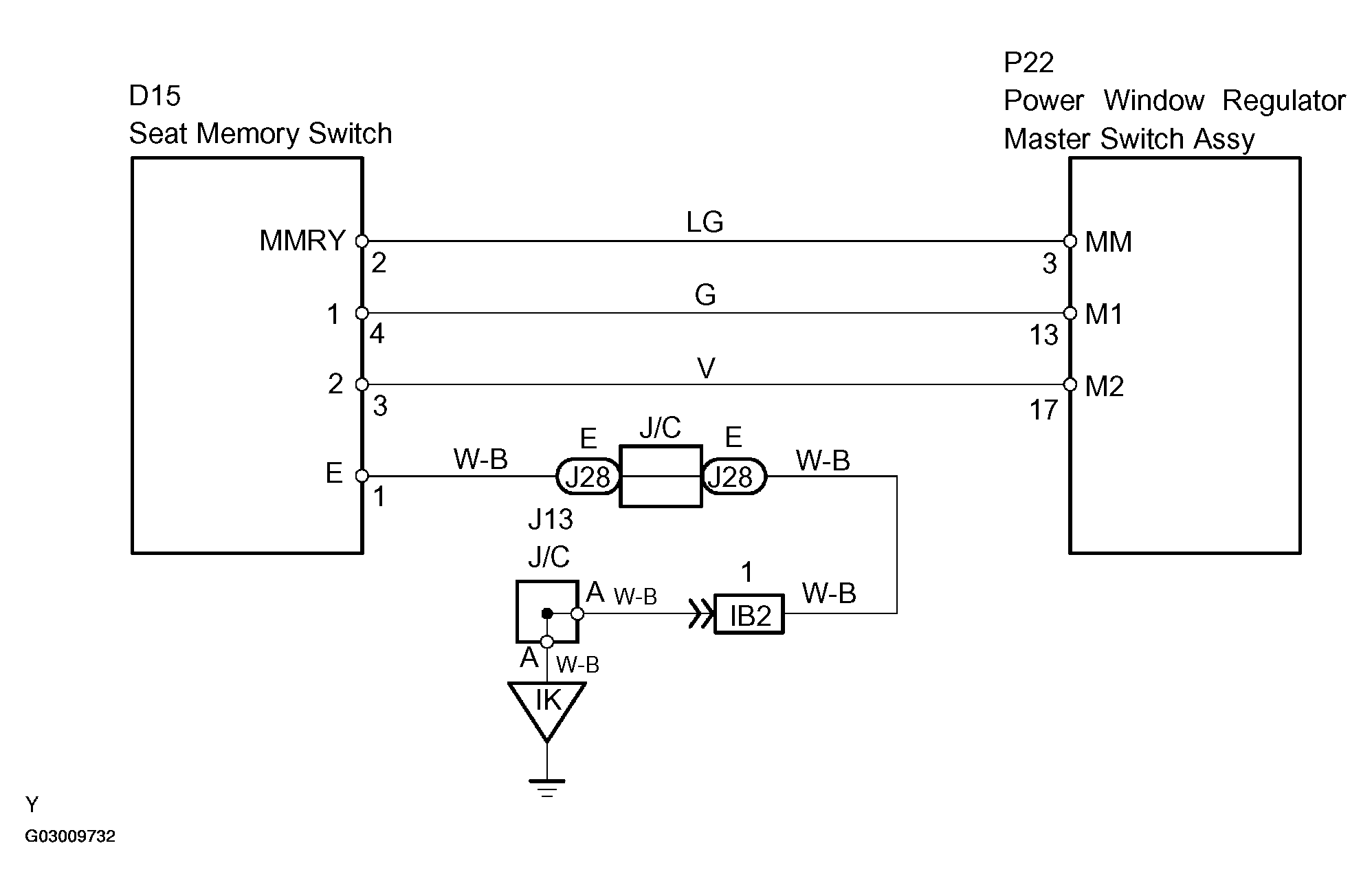

Fig 1: Driving Position Memory Switch Circuit Wiring Diagram
G03009732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
