Remote Control Mirror Switch Circuit: Wiring Diagram

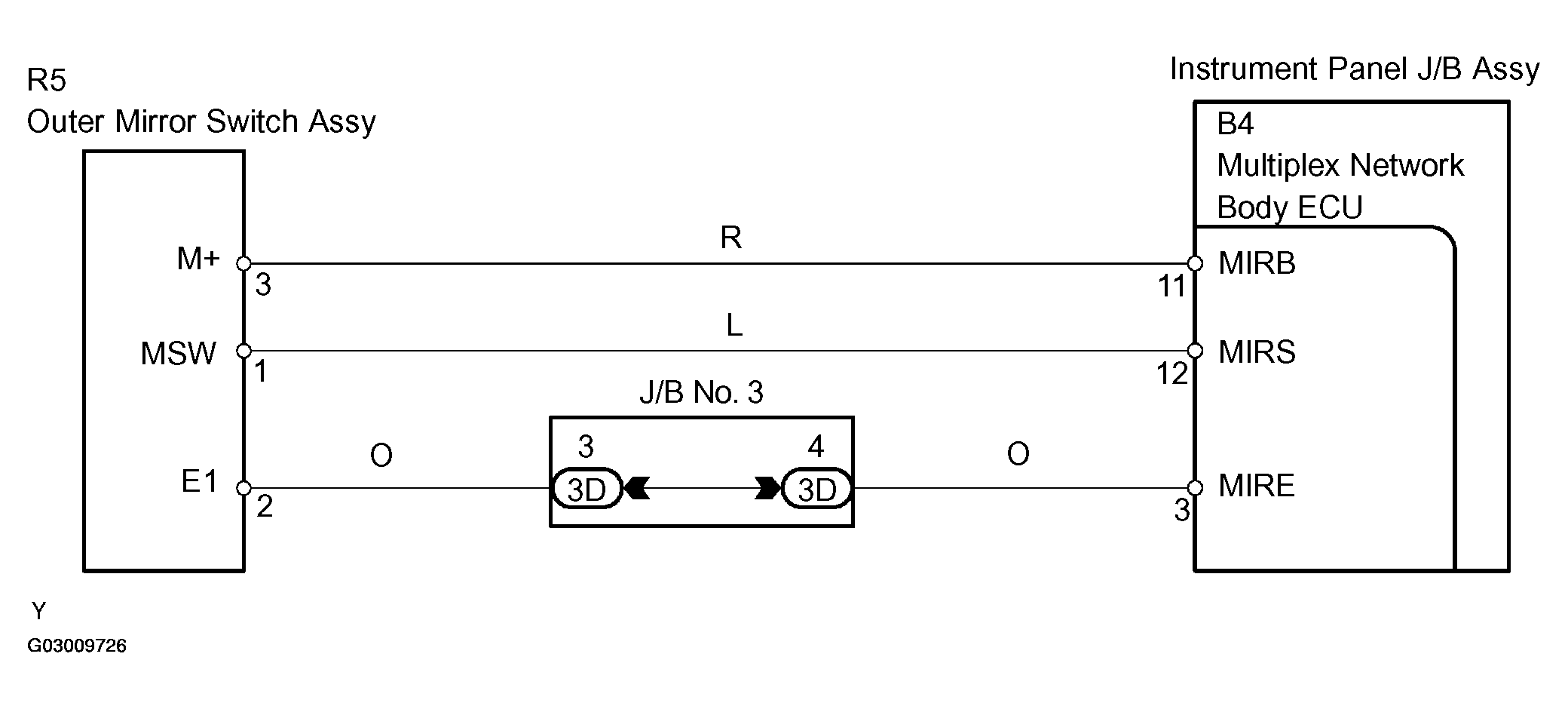

Fig 1: Remote Control Mirror Switch Circuit Wiring Diagram
G03009726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
