Recommended Tools

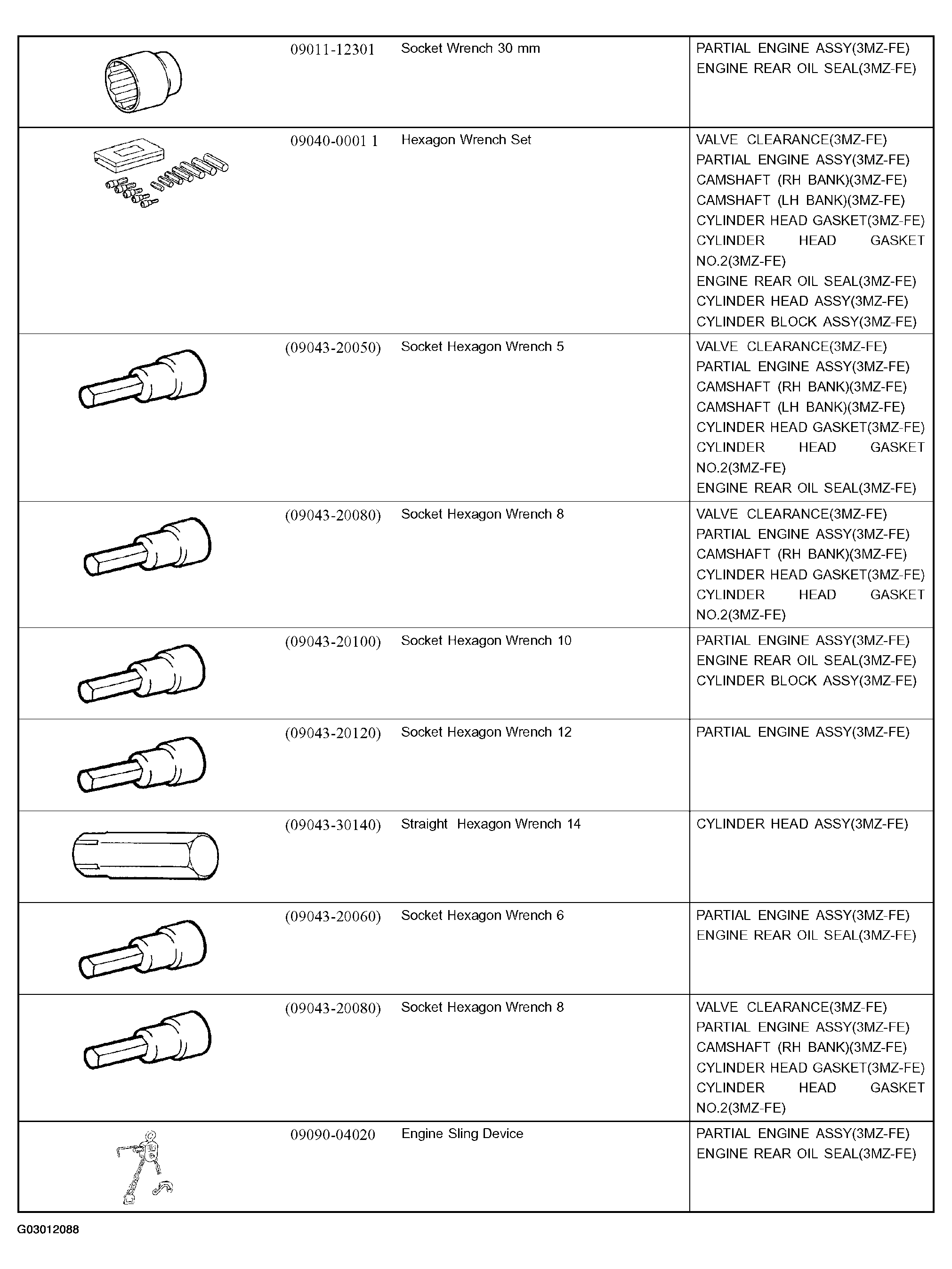

Fig 1: Recommended Tools Specifications (1 Of 2)
G03012088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

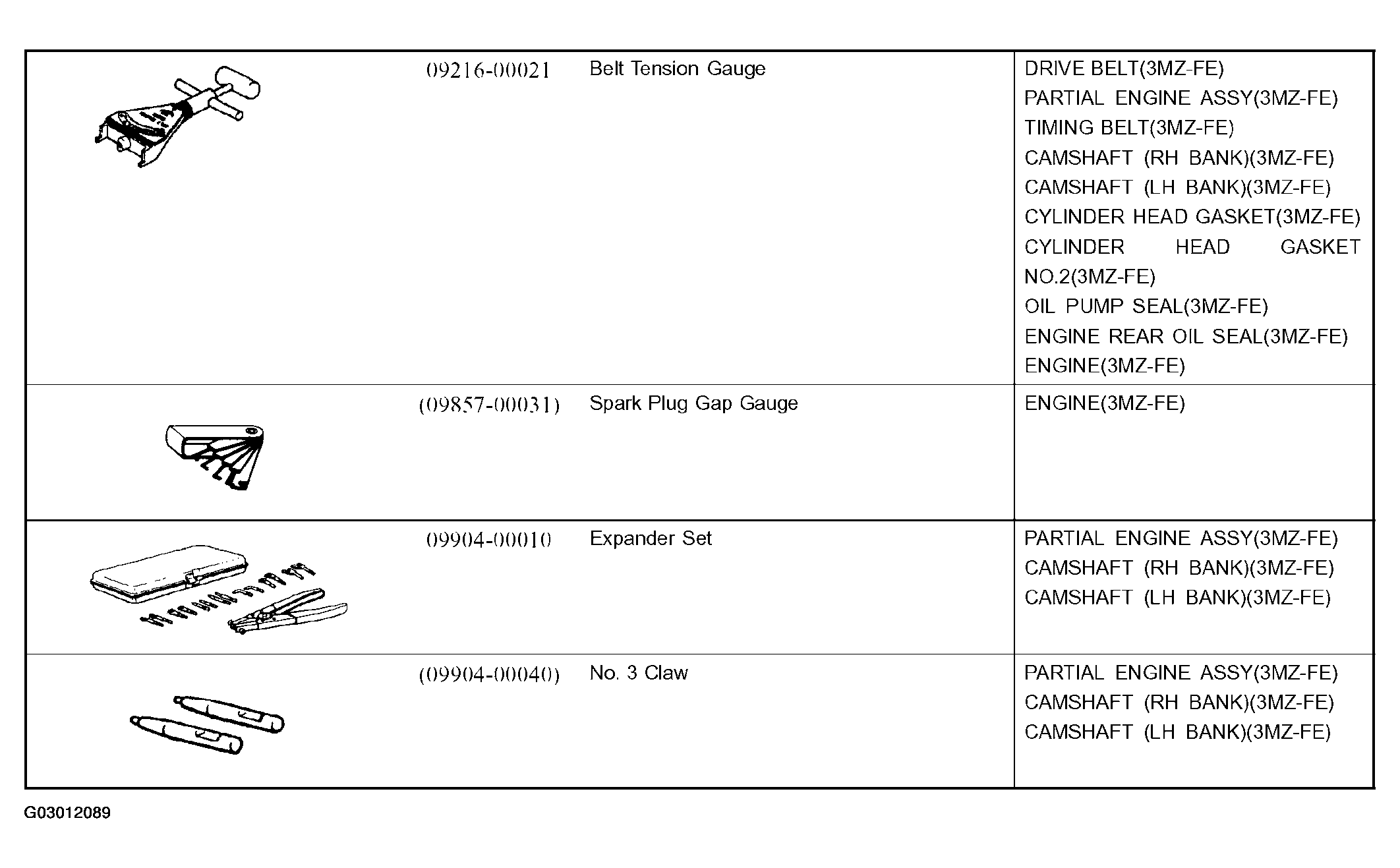

Fig 2: Recommended Tools Specifications (2 Of 2)
G03012089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
