Height Control Sensor Sub-ASSY Rear RH: Replacement

WARNING: This page is about a different car, the 2004 Lexus RX 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
1. Disconnect the connector.
2. Remove the nut and then disconnect the height control sensor link.

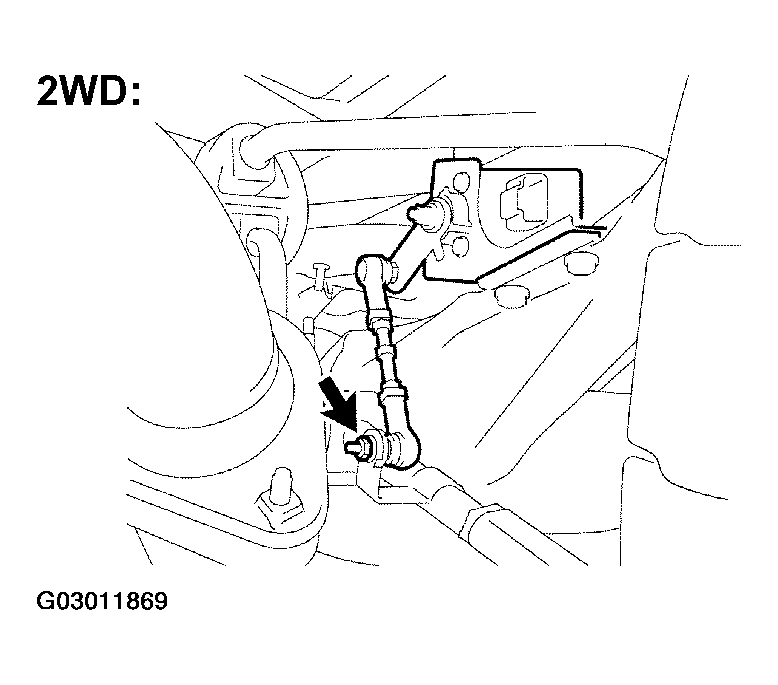

  Fig 1: Removing Nut & Disconnecting Height Control Sensor Link (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

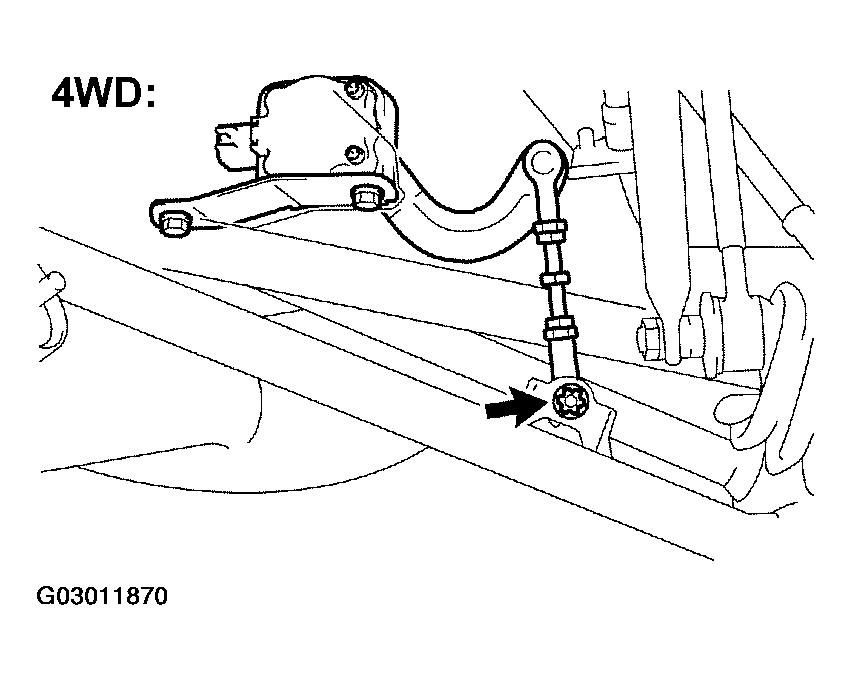

  Fig 2: Removing Nut & Disconnecting Height Control Sensor Link (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. 2WD:
  Remove the 2 nuts and the height control sensor sub-assy rear RH.

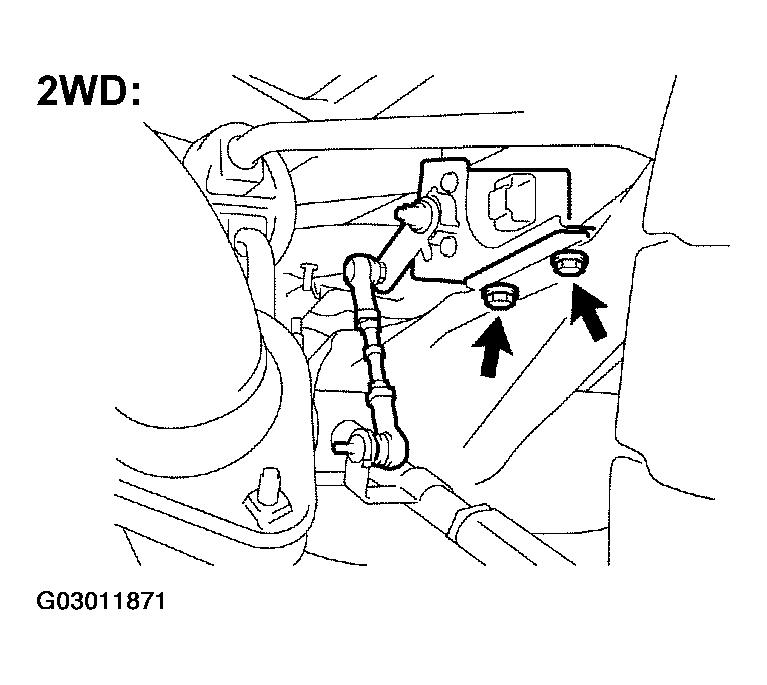

  Fig 3: Removing Nuts & Height Control Sensor Sub-Assy Rear RH (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. 4WD:
  Remove the 2 bolts and the height control sensor sub-assy rear RH.

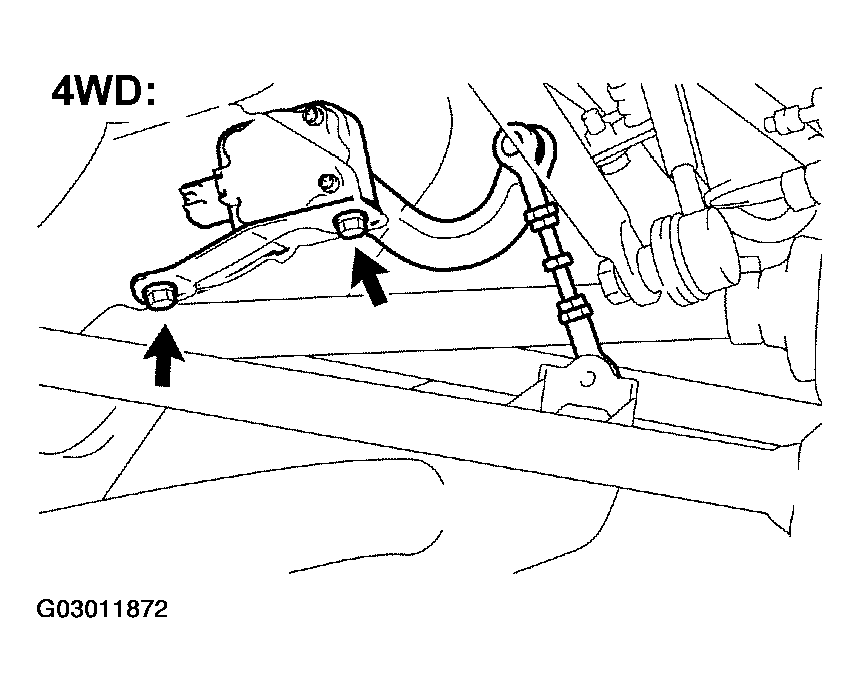

  Fig 4: Removing Bolts & Height Control Sensor Sub-Assy Rear RH (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
1. 2WD:
  Install the height control sensor sub-assy rear RH with the 2 nuts.

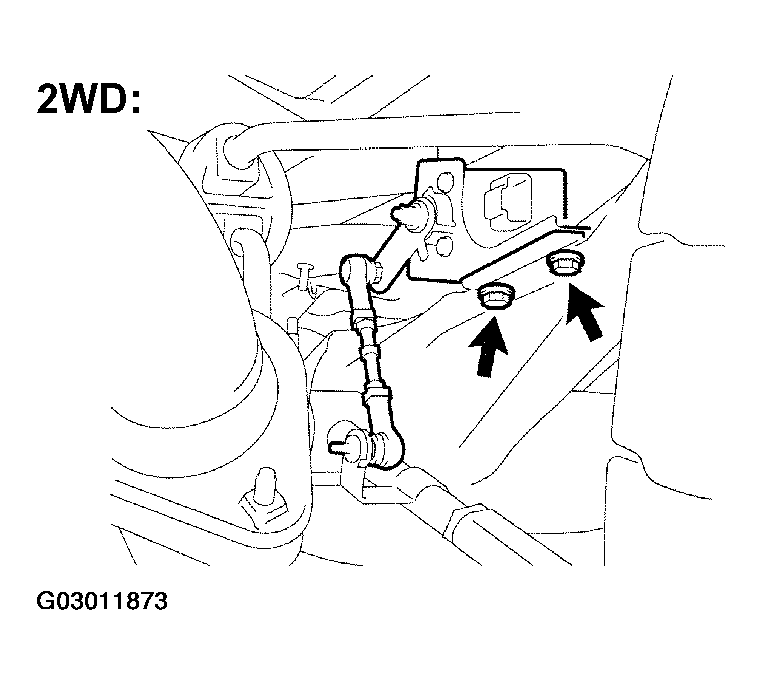

  Fig 5: Installing Height Control Sensor Sub-Assy Rear RH With 2 Nuts (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
  Install the height control sensor sub-assy rear RH with the 2 bolts.

  Fig 6: Installing Height Control Sensor Sub-Assy Rear Rh With 2 Bolts (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the height control sensor link with the nut.

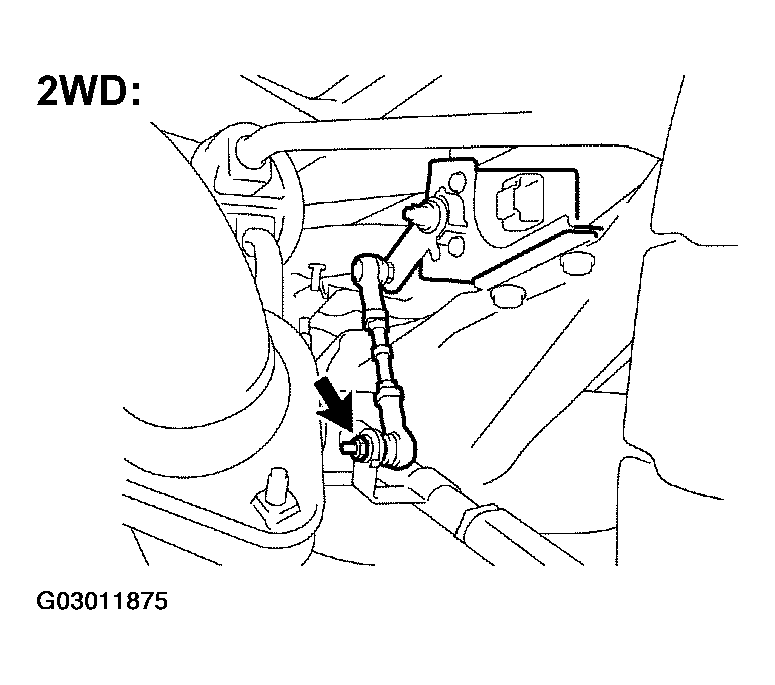

  Fig 7: Installing Nut & Height Control Sensor Link (2WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

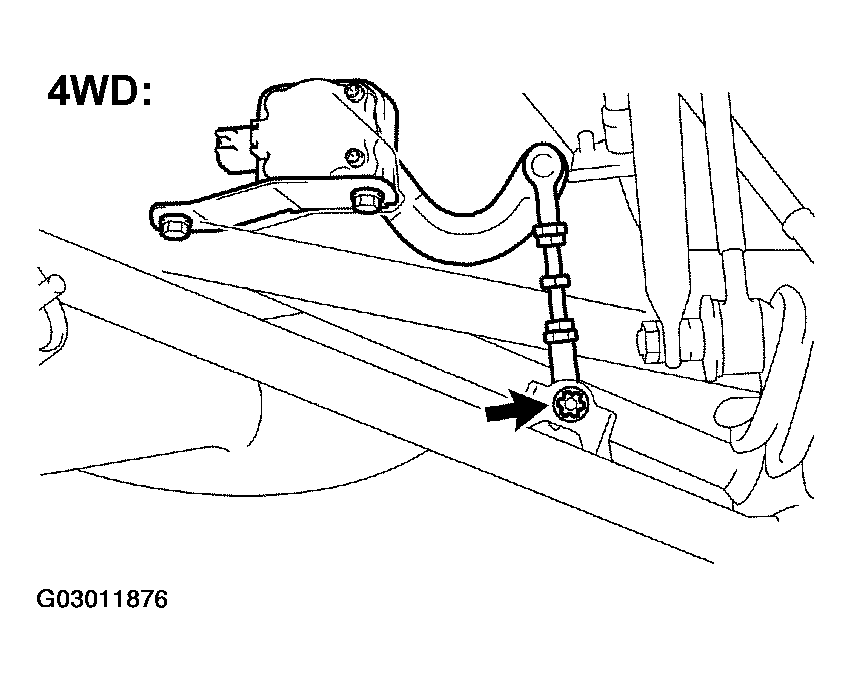

  Fig 8: Installing Nut & Height Control Sensor Link (4WD)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
4. Connect the connector.
HEADLIGHT AIM ONLY (See ADJUSTMENT )
