Multi-Display Controller Sub-ASSY: Replacement

HINT:

LOCATION : See

1. REMOVE DECK BOARD SUB-ASSY (See  REPLACEMENT  )
2. REMOVE TONNEAU COVER ASSY
3. REMOVE DECK FLOOR BOX FRONT (See  REPLACEMENT  )
4. REMOVE DECK FLOOR BOX REAR (See  REPLACEMENT  )
5. REMOVE DECK BOARD SUB-ASSY NO.2 (See  REPLACEMENT  )
6. REMOVE DECK BOARD SUB-ASSY NO.3
7. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
8. REMOVE DECK SIDE TRIM BOX RH (See  REPLACEMENT  )
9. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
10. REMOVE REAR FLOOR FINISH SIDE PLATE RH (See  REPLACEMENT  )
11. SEPARATE DECK TRIM SIDE PANEL ASSY RH (See  REPLACEMENT  )

    HINT:

    Turn up the deck trim side panel assy RH until the multi-display controller w/ bracket can be removed.

12. REMOVE TELEVISION CAMERA ECU (W/ EMV & NAVIGATION SYSTEM) (See  TELEVISION CAMERA ECU   )
13. REMOVE MULTI-DISPLAY CONTROLLER W/BRACKET
    1. Disconnect the connector.
    2. Remove the 3 nuts and the multi-display controller w/ bracket.

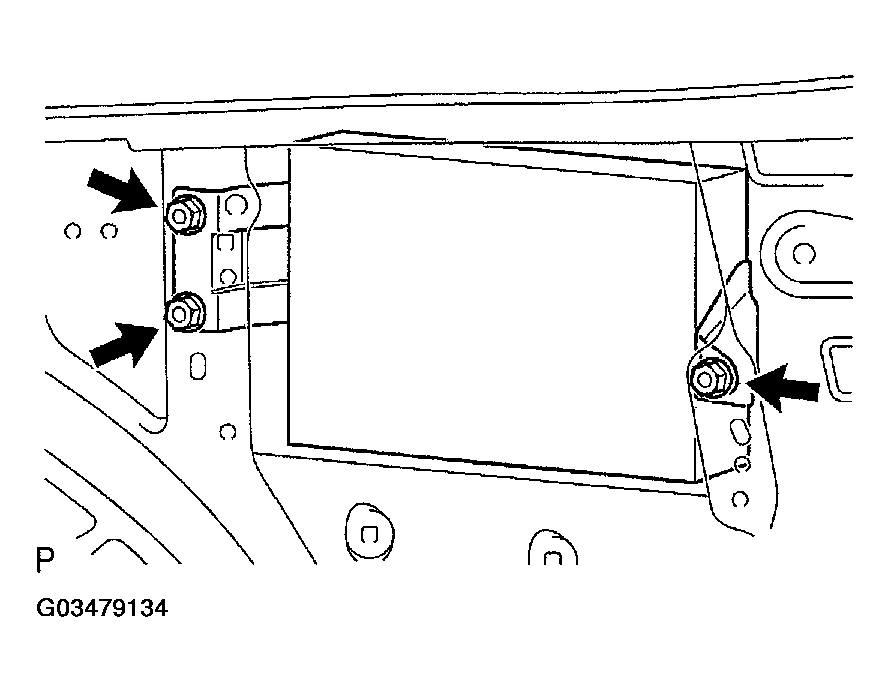

Fig 1: Removing Remove Multi-Display Controller W/Bracket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. Remove the 2 screws and the multi-display controller bracket A.

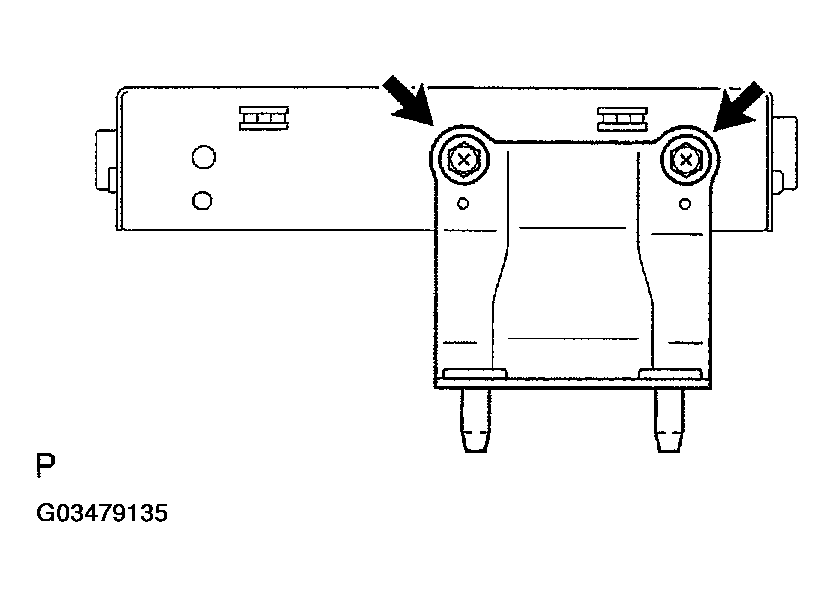

       Fig 2: Removing Screws And Multi-Display Controller Bracket A

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
    1. Remove the 2 screws and the multi-display controller bracket B.

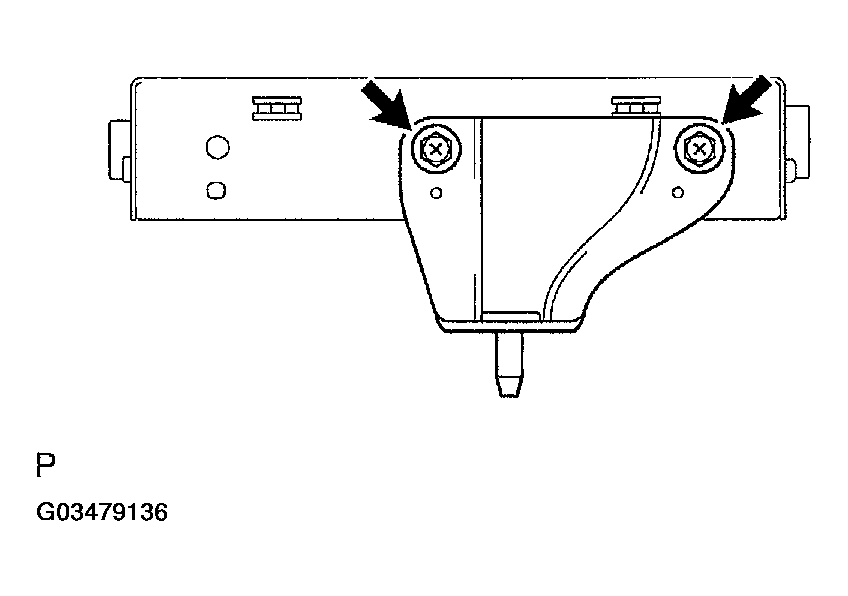

       Fig 3: Removing Multi-Display Controller Bracket B

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSY
