Diagnostic Start-Up/Finish

HINT:

• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.
• After the ignition switch is turned on, check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

1. There are 2 methods to start diagnostic mode. Start the mode by using one of them.
2. Method 1
   1. Start the engine.
   2. While pressing and holding the "INFO" switch, operate the light control switch: OFF --> TAIL --> OFF --> TAIL --> OFF --> TAIL --> OFF.
   3. The diagnostic mode starts and the service check screen ("System Check Mode") will be displayed. Service inspection starts automatically and the result will be displayed.

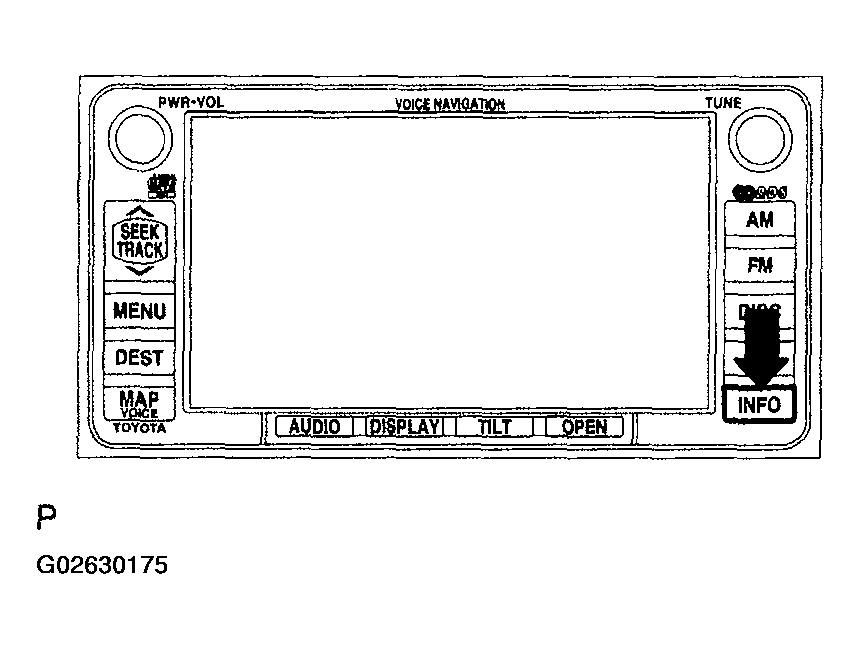

   Fig 1: Diagnostic Starting Mode Method 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Method 2
   1. Start the engine.
   2. Switch to the "Display quality adjustment" screen.
   3. From the display quality adjustment screen, touch the corners of the screen in the following order: upper left --> lower left --> upper left --> lower left --> upper left --> lower left.
   4. The diagnostic mode starts and the "Service Check" screen will be displayed. Service inspection starts automatically and the result will be displayed.

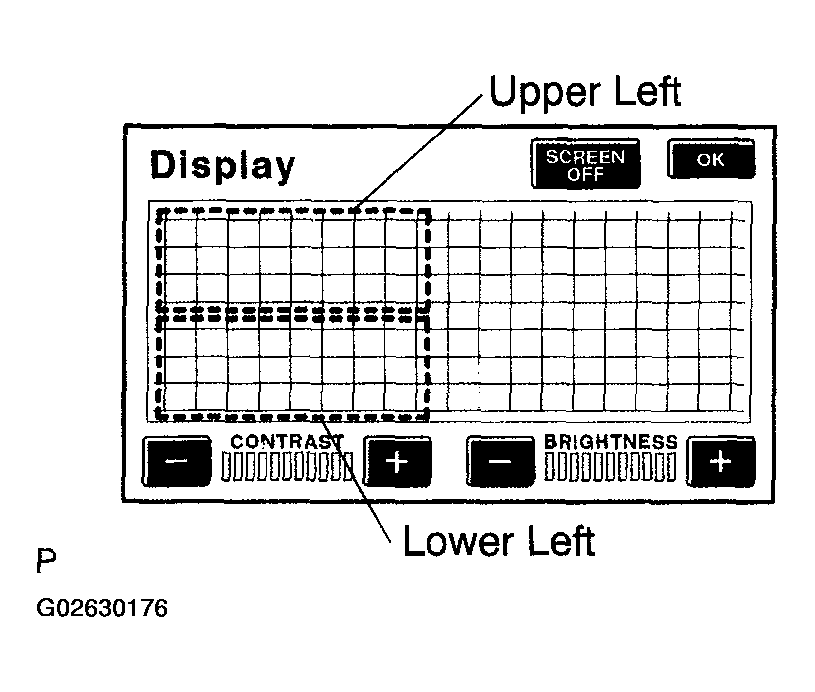

   Fig 2: Diagnostic Starting Mode Method 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Diagnosis MENU
   1. The diagnostic screen will be displayed by pressing the menu switch on the service check screen.

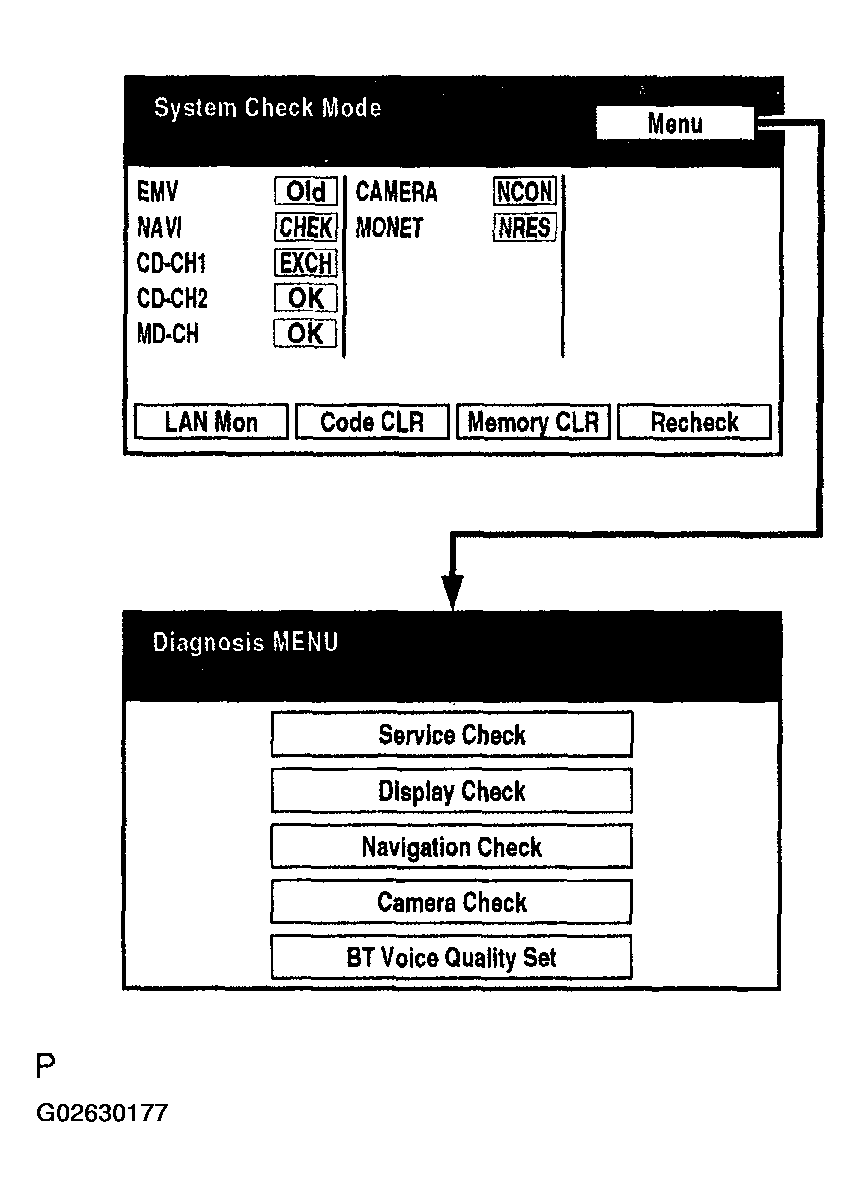

   Fig 3: Diagnosis Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. There are 2 methods to exit. Use one of them.
   1. Turn the ignition switch off.
   2. Press the "Display" switch for 3 seconds.
