INSTALL HEIGHT CONTROL SENSOR
1. 2WD:
  1. Install the height control sensor with the 2 bolts.

    Fig 1: Locating Height Control Sensor Bolts (2WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. 4WD:
  1. Install the height control sensor with the 2 bolts.

    Fig 2: Locating Height Control Sensor Bolts (4WD)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the height control sensor link with the nut.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
4. Connect the connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
VEHICLE PREPARATION FOR HEADLIGHT AIM
PREPARATION FOR HEADLIGHT AIMING (Using a headlight aim test machine)
1. Using a tester:
  1. Preparation for headlight aim (See ADJUSTMENT ).
PREPARATION FOR HEADLIGHT AIMING (Using a Screen)
1. Using a screen:
  1. Preparation for headlight aim (See ADJUSTMENT ).
HEADLIGHT AIMING INSPECTION
HEADLIGHT AIMING ADJUSTMENT

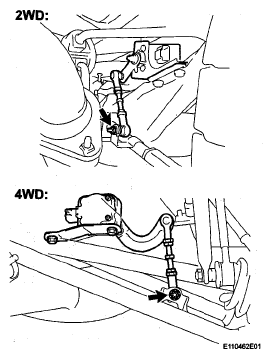

Fig 3: Locating Height Control Sensor Bolts (2WD And 4WD)
