Inspection Procedure

WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE OF INTELLIGENT TESTER
    1. Connect the intelligent tester to the DLC3.
    2. Turn the ignition switch to the ON position and press the intelligent tester main switch ON.
    3. Select the items below in the DATA LIST, and read the displays on the intelligent tester.

      BODY

      ITEM MEASUREMENT CONDITION CHART

      Item Measurement Item/ Display (Range) Normal Condition Diagnostic Note
      ILLUMINATE RATE Illuminate rate/(0.8 ms to 22.0 ms) Value is output according to ambient light -

    NG: Go to step   2

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  2. CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK BODY ECU - AUTOMATIC LIGHT CONTROL SENSOR)
    1. Disconnect the automatic light control sensor connector and multiplex network body ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

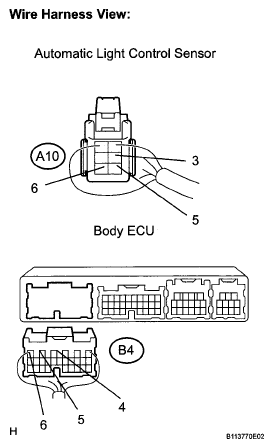

      Fig 1: Disconnecting B4 Body ECU Connector Terminals
      G05273740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      CLTE (A10-3) - CLTE (B4-4) Always Below 1 Ω
      CLTS (A10-5) - CLTS (B4-5) Always Below 1 Ω
      CLTB (A10-6) - CLTB (B4-6) Always Below 1 Ω
      CLTE (B4-4) - Body ground Always 10 kΩ or higher
      CLTS (B4-5) - Body ground Always 10 kΩ or higher
      CLTB (B4-6) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next step

  3. INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
    1. Measure the voltage according to the value(s) in the table below.

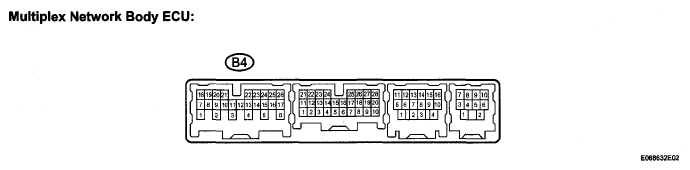

      Fig 2: Identifying B4 Multiplex Network Body ECU Connector Terminals
      G05273832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified voltage
      CLTE (B4-4) - CLTB (B4-6) Ignition switch OFF → ON Below 1 V → 10 to 14 V

    NG: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    OK: REPLACE AUTOMATIC LIGHT CONTROL SENSOR
