Inspection Procedure
WARNING: This page is about a different car, the 2007 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- READ VALUE OF INTELLIGENT TESTER
- Connect the intelligent tester to the DLC3.
- Turn the ignition switch to the ON position and press the intelligent tester main switch ON.
- Select the items below in the DATA LIST, and read the displays on the intelligent tester.
BODY
ITEM MEASUREMENT CONDITION CHARTItem Measurement/ Display (Range) Normal Condition Diagnostic Note DIMMER SW Headlight dimmer SW signal/ON or OFF ON: Headlight dimmer switch is in HI or FLASH position
OFF: Headlight dimmer switch is in LO position- HIGH FLASHER SW Headlight dimmer SW signal/ON or OFF ON: Headlight dimmer switch is in FLASH position
OFF: Headlight dimmer switch is in except FLASH position- F FOG LIGHT SW Front fog light SW signal/ON or OFF ON: Front fog light switch is in ON position
OFF: Front fog light switch is OFF position- AUTO LIGHT SW Auto light SW signal/ ON or OFF ON: Headlight dimmer switch is in AUTO position
OFF: Headlight dimmer switch is in except AUTO position- HEAD LIGHT SW Head light control SW signal/ON or OFF ON: Light control switch is in HEAD position
OFF: Light control switch is in except HEAD position- TAIL LIGHT SW Taillight SW signal/ON or OFF ON: Light control switch is in TAIL or HEAD position
OFF: Light control switch is in OFF position-
NG: Go to step 2
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY
- Inspect the headlight dimmer switch assembly (See INSPECTION ).
NG: REPLACE HEADLIGHT DIMMER SWITCH ASSEMBLY
OK: Go to Next step
- INSPECT INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

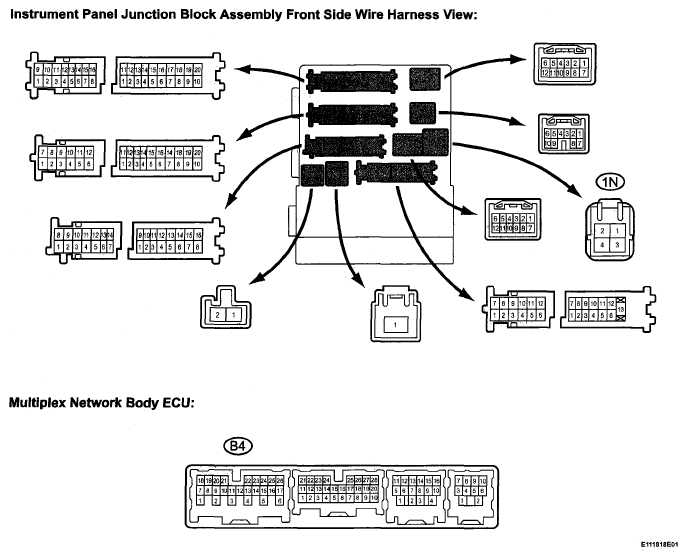

- Measure the voltage according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Voltage
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition 1N-2 - Body ground Headlight dimmer switch LOW → HIGH 10 to 14 V → Below 1 V B4-15 - Body ground Headlight dimmer switch LOW → FLASH 10 to 14 V → Below 1 V B4-16 - Body ground Light control switch OFF → AUTO 10 to 14 V → Below 1 V B4-17 - Body ground Light control switch OFF → TAIL 10 to 14 V → Below 1 V B4-22 - Body ground Front fog light switch OFF → ON 10 to 14 V → Below 1 V B4-23 - Body ground Light control switch OFF → HEAD 10 to 14 V → Below 1 V
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
- Measure the voltage according to the value(s) in the table below.
