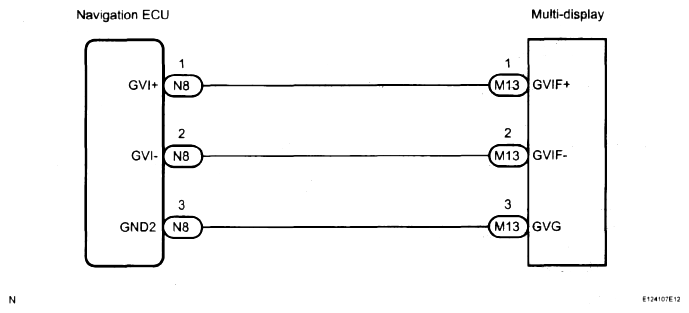

Display Signal Circuit Between Navigation ECU and Multi-display: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
