Inspection Procedure
WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - NAVIGATION ECU)

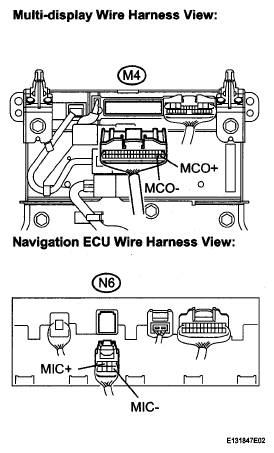

- Disconnect the multi-display connector M4 and navigation ECU connector N6.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION REFERENCE TABLETester connection Condition Specified condition MCO+ - MIC+ Always Below 1 Ω MCO- - MIC- Always Below 1 Ω MCO+ - Body ground Always 10 kΩ or higher MCO- - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
